Specifications
Diaphragm stainless steel pressure gaugeLocal display & anti-vibration
CE,ISO9001 Certificate
Mechanical design
plate
Diaphragm stainless steel pressure gauge with plate PT124Y-622
Description
1. PT124Y-622 pressure plate diaphragm pressure gauge, adopts imported bourdon tube, connector is used in all stainless steel.
2. In addition to the general diaphragm pressure gauge performance, this pressure gauge also has good shock-proof and anti-corrosion.
3. It is suitable for the process pressure measuring of much machineries, such as Homogenizer machine, Mulser, Crusher, Other food machinery and so on.
Application
Measuring liquid of large viscosity, easy to crystallize and solidify
Positive and negative pressure of corrosive media
Petrochemical
Alkali, chemical fiber, dyeing, pharmaceutical, food and dairy industries sector
Measure the fluid pressure of the medium
Feature
Cost performance is good
Mechanical design
Install easily
Fill in silicon oil (food grade)
Good shock-proof and anti-corrosion
High reliability and good repeatability
Spacification
Name |
Diaphragm stainless steel pressure gauge with plate |
Range |
0-1MPa ~ 0-50MPa |
Accuracy |
±1.6%FS |
Configuration |
Bourdon tube |
Over Pressure |
1.5×FS |
Dial Diameter |
100mm |
Needle sweep: |
270º |
Diaphragm material: |
15-5PH |
Case material: |
Stainless steel with safety glass |
Max Diaphragm Temp. |
125°C |
Process Connection |
Pressure plate |

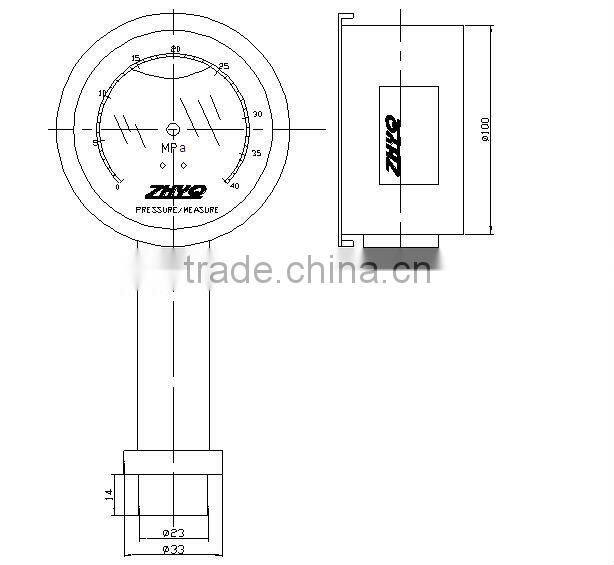

Dimension
Order Guide : with "* "are required , with "---"is optional
Price, Package and Service
1, ZHYQ is producing various diaphragm Pressure Gauge for 13+ years
2. OEM is available and our price is more competitive
3, Any questions from your are welcome and will be replied in 24 hours.
4, 7 days replacement, 12 months free repair if it's the problem of product's quanlity.
5, All goods will be fully checked by our QC.
6, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.
7. Package: The goods will be put into the packing box with instructions and certificate of quality first.
Our main products contains diaphragm Pressure Gauge, melt pressure transducers, melt pressure transmitters, Industrial pressure transmitter, melt pressure gauge, Homogenizer pressure gauges, automotive/air pressure sensors, Intelligent digital indicator, level transducer, temperature transducer, Rupture disk, and etc. more than 80 series and 500 models products.
