Intelligent Peak Digital Pressure Indicators ZHP 320
Discription
ZHP 320 Series intelligent digital pressure indicator is specially designed to match ZHYQ’s pressure transducer with digital signal output.
It also can supply the power for digital pressure transducer. And its measuring principle is digital operation.
LED alarm indicator, relay contact output, and the instrument can supply +5V power for the digital transmitter.
It has the characters of excellent anti-jamming, high precision, stable performance, easy installation.
It comes with 96*96*105mm metal cover. Four-circuit pressure upstream and downstream programmable relay alarms.
Application
Petroleum & Chemical
Pharmaceutical & drinking water treatment
Process pressure measurement and control
Specification
Display: |
Dual 4-digit LED display |
Precision: |
0.5%FS±1 bit |
Indicator: |
AL1,AL2,AL3,AL4 Alarm indicator |
Digital transducer power: |
5V DC |
Resolution: |
00.01 |
Range: |
0001-9999Mpa(Radix point changeable) |
Use temperature & humidity: |
0-55% ≤80% RH |
Power supply: |
AC220V±10% 50Hz-60Hz |
Output control: |
Voltage and signal Linear Relation between the span output signals |
Auxiliary output: |
Four pressure upstream and downstream alarms |
Dimension size: |
96×96×105mm |
Panel cutout: |
92×92mm |

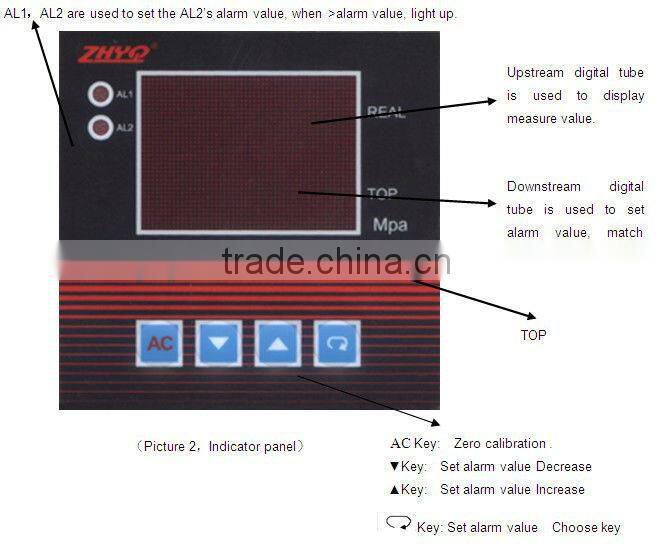

Indicator Panel description

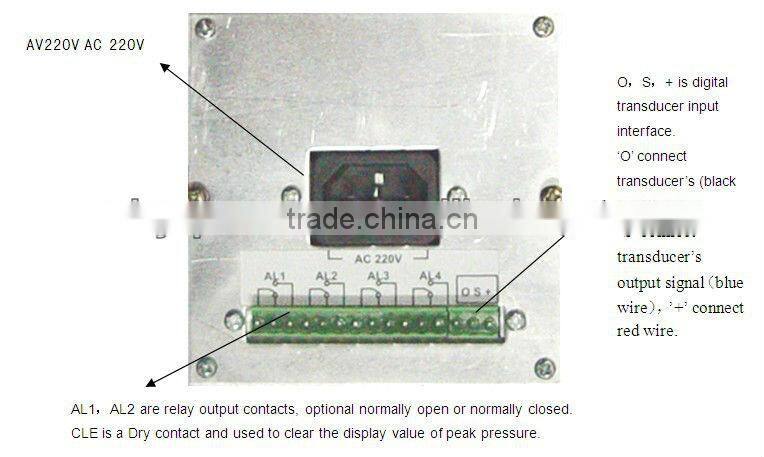

Electric Connection Mode

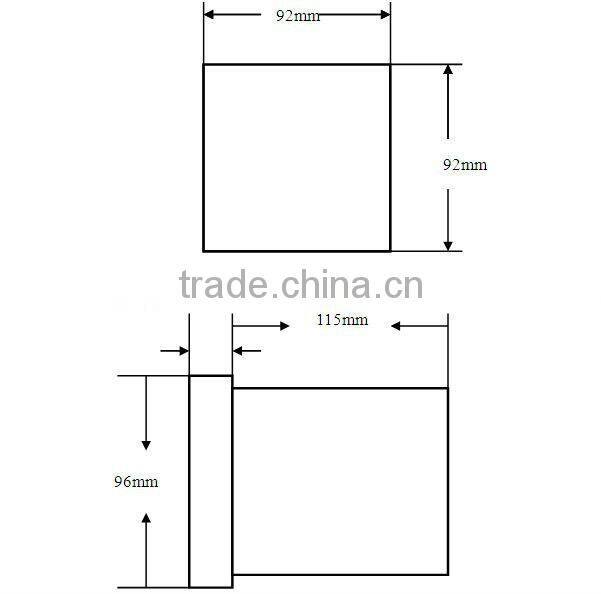

Indicator Cutout Dimension
Order Guide :
Remarks the pressure range when order instrument and pressure transmitter. It could not modify the pressure range for the indicator and transducer by customer. The transducer must match with the digital transmitter supplier by ZHYQ.
Maintenance
1. Meter can operate in the environment of 0-55°C,relative humidity <=80%RH,no dust and no corrosive gas.
2. 1 year free repair for quality warranty since the date of ex-factory. If the damage by customer or the date has exceeded the warranty period, then we will charge appropriately.
Price, Package and Service
1, T/T, Western Union, MoneyGram
2, Any questions from your are welcome and will be replied in 24 hours.
3, 7 days replacement and 12 months repair free of charge for quality problem.
4, All goods will be fully checked by our QC.
5, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.
6. Package: The goods will be put into the packing box with instructions and certificate of quality first.
