Specifications
high temperature pressure gauge1.all stainless steel structure
2.local display
3.with output
4.CE&ISO9001

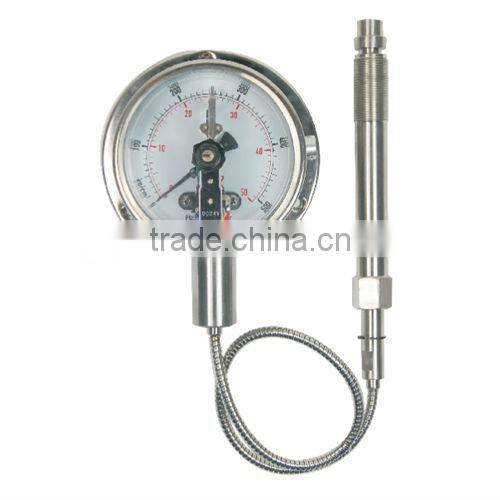

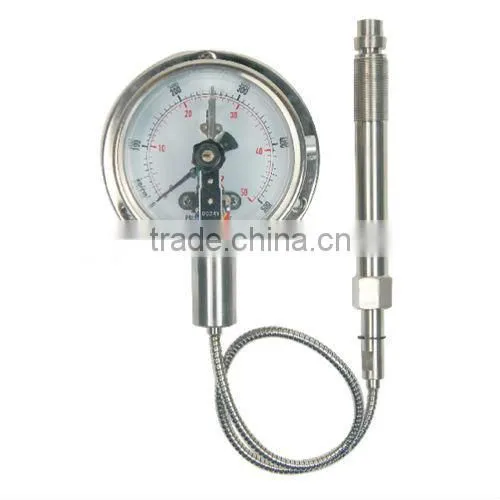

Mechanical rigid stem melt pressure gauge with output(manufacturer)
Features and benefits
Direct, local readings
Mechanical design
Step-up and stem-down versions
Gauge head rotates 360o for easy reading
0-100bar to 0-700bar pressure range
Stainless steel construction
12 months manufacturer's warranty
Install easily, high reliability
Zero adjustment
With signal output
Applications
Chemical fiber and filature
Rubber & plastic machinery
The equipment of high temperature steam
High temperature fluid pressure measuring and controlling
Specification
Range |
0~100bar~700bar high temperature pressure gauge |
Output: |
3.33mv/v,4-20ma, 0-10v |
Accuracy |
±1.6%FS |
Configuration |
Bourdon tube high temperature pressure gauge |
Over Pressure |
1.5×FS |
Dial Diameter |
100mm high temperature pressure gauge |
Needle sweep: |
270º |
Diaphragm material: |
15-5PH high temperature pressure gauge |
Case material: |
Stainless steel with safety glass |
Max Diaphragm Temp. |
350°C |
Process Connection |
M22×1.5;M18×1.5,M14*1.5(Optional) |
Ordering guide
Model |
Range |
Output |
Process connection |
Other requirement |
PT124Y-612 |
--- |
--- |
--- |
--- |
Example: PT124Y-612-700Bar-4-20mA-M20×1.5 | ||||
