Specifications
Melt temperature transducer0-1300Deg C measurement range
Type J,K,E,PT100,CU50 Optional
Replace Dynisco's similar item
Plastic PT100 temperature sensor
Discription
WR-200 Series temperature transducer adopts excellent temperature sensing elements; consummate encapsulation technology and perfect assemble process to insure the quality and performance.
This series has the advantage of fast thermal response time, strong thermal resistance capability, high pressure resistance, various temperature elements to choose, diversiform installation etc.
Application
It is used for the temperature measuring and control in the erumpent processing of Chemical fiber, Rubber plastic, Food process and etc.
Specification
Model |
WR-200 |
Temperature range |
0 to 1300°C |
Power supply |
10 ~30VDC |
error |
0.1%FS, 0.3%FS, 0.5%FS |
Media compatibility |
316L stainless steel |
Pressure connection |
1/2-20UNF, M14*1.5 |
Rigid stem length |
6inch, 9inch |
Flexible stem length |
18inch |
Sensing element |
J, PT100 temperature sensor |

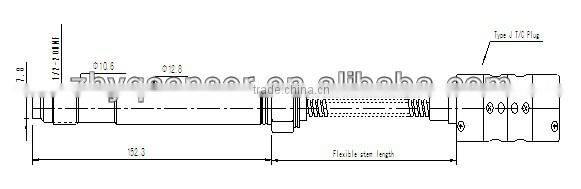

Dimension
Order Guide : with "* "are required , with "---"is optional
Price, Package and Service
1, ZHYQ is in this field of producing various pressure sensors for 13+ years
2, OEM is available, our price is more competitive
3, 7 days replacement and 12 months free repair if quality problem .
4, All goods will be fully checked by our QC.
5, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.
6. Any questions from you are welcome and will be replied in 24 hours.
7, Package: The goods will be put into the packing box with instructions and certificate of quality first.
