Specifications
Temperature transducer1High quality reasonable price
2China factory fast delivery
3High accuracy high stability
Description

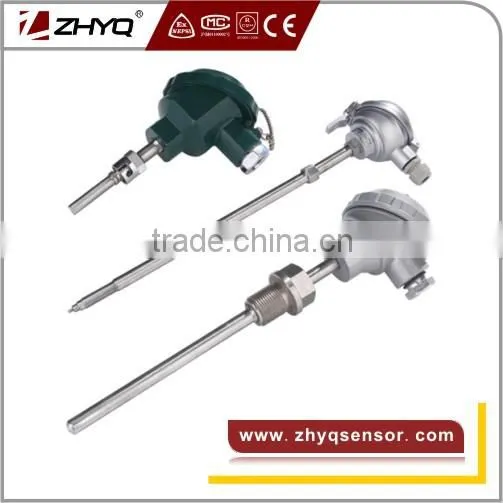

Industrial temperature transducer adopts excellent temperature sensing elements, consummate encapsulation technology and perfect assemble process to insure the quality and performance. This series has the advantage of fast thermal response time, strong thermal resistance capability, high pressure resistance, various temperature elements to choose, diversiform installation etc. It is used for the temperature measuring and control in the erumpent processing of chemical fiber, rubber plastic, food etc....
Specification
element |
K,E,J,T,PT100,CU50 |
Accuracy |
A class: +/- (0.15+0.2%t); B class:+/-(0.3+0.5%t) |
Range |
0-1300°C |
Housing |
304/316stainless steel or others |
Out put |
4-20mA(two wires), three wires,four wires. |
Power Supply |
24(12~36)VDC (amplified circuit output),10(6~12)VDC (mV signal) |
Connection |
No fixed device, screw thread connection, side flange, mounting and fixed flange mounting |

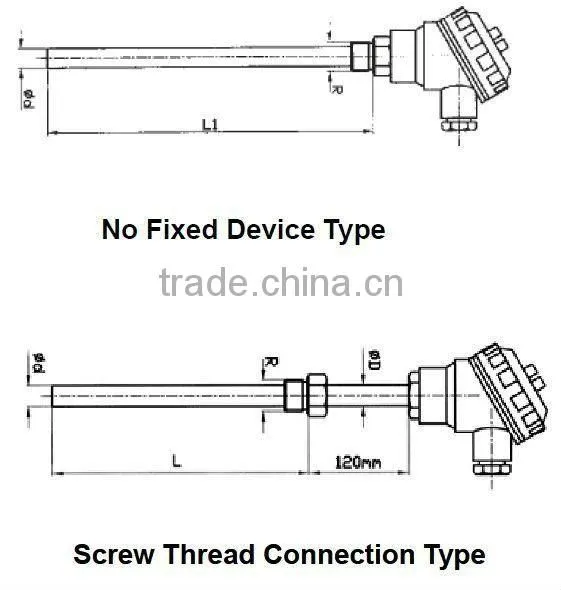

Dimensions
Price, Package and Service
1, Our quotation is always valid for you if there is no world market unrest.
2, Receiving your new inquiry, the infos of products & the best price will be provided you asap.
3, Replacement and repair if there is quality problem within 7-15 working days.
4, Port: Shanghai.
5, Payment: T/T.
6, OEM MOQ is more than 100pcs.
7, Delivery time is 7-10 working days.
8, All goods will be fully checked by our QC.
9, Package: The goods will be put into the packing box with instructions and certificate of quality first. Then we pack them into the box with polystyrene foam avoiding the damage to the products.
10, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.
