Rubber and Plastic Temperature Thermocouple

Specifications

Rubber and Plastic mechanical thermocouple,this temperature transmitter is suitable to measure the temperature in varilous field

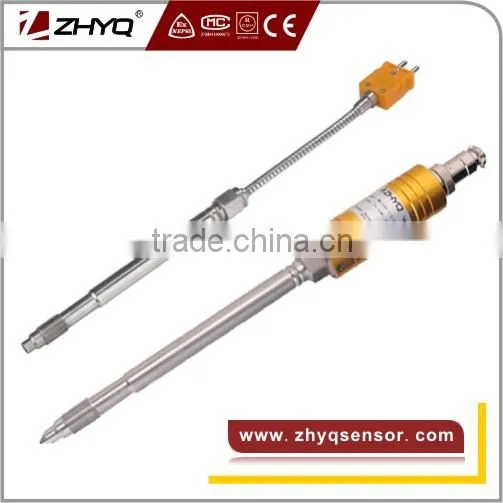

Rubber and Plastic temperature thermocouple



Model: WR-202

Description

WR-200 Series temperature transducer adopts excellent temperature sensing elements; consummate encapsulation technology and perfect assemble process to insure the quality and performance. This series has the advantage of fast thermal response time, strong thermal resistance capability, high pressure resistance, various temperature elements to choose, diversiform installation etc.



Application

It is used for the temperature measuring and control in the erumpent processing of chemical fiber, rubber plastic, food process and etc.



Benefit

Accurate temperature measurement and control

Suitable for high temperature proceses used to produce chemical fiber,rubber plastic,petroleum,paper making,water and electricity,food machine and etc.



Specification



Model	WR-200
Temperature range	0 to 1300°C
Output	4-20mA optional
Power supply	10 ~30VDC
error	0.1%FS, 0.3%FS, 0.5%FS
Media compatibility	316L stainless steel
Pressure connection	1/2-20UNF, M14*1.5
Protection tube	Stainless steel 6mm and 8mm dia.
Insert length	6inch, 9inch
Tip Length	0mm , 5mm, 10mm, 15mm
Sensing element	J, PT100 temperature sensor
Electrical connector	2PIN or PIN special connector
