Help CenterRigid Stem Melt Pressure Transmitter With MV/V Output for Plastic Machinery
Related Products
-
Flush Diaphragm Membrane Pressure SensorNegotiableMOQ: 1 Piece -
PT124B-212 High Precision Diffused Silicon Pressure SensorNegotiableMOQ: 1 Piece
-
Smart Industrial 4-20mA HART Pressure SensorNegotiableMOQ: 1 Piece
-
4-20mA Explosion Proof Pressure Sensor With HART CommunictionUS$ 50 - 120MOQ: 1 Piece
-
Industrial 4-20mA Pressure TransducerNegotiableMOQ: 1 Piece
Description
PT124G-112 is rigid stem melt pressure transmitter with mV/V output for plastic machinery , this series is rigid stem Melt Pressure Sensor with mV/V output, This melt pressure sensor adopts special construction and excellent alloy elastic membrane to reduce the thermal draft ,improve the accuracy, good anti-jamming performance andt built in 80% shunt calibration, the melt pressure sensor can match our N series pressure instrument also can match the pressure instrument or controller of other brand .this melt pressure sensor are suitable for pressure measuring and controlling in melt fluid medium, such as the plastic & polymer in the process equipments. the melt pressure sensor is high accuracy , and the output is standard , which Can replace Dynisco / Gefran /GP50 etc. international brand absolutely .
Feature
0.5% accuracy , rigid stem melt pressure sensor
Stainless steel welding,Easy to install
Internal 80% calibration
Excellent stability and repeatability
standard output , Can replace Dynisco / Gefran /GP50 etc. international brand absolutely .
Application
various plastic extrusion lines
chemical fiber manufacturing equipment
plastic rubber machine
polyester equipment
petrochemical equipment
Specification
Name |
rigid stem melt pressure transmitter with mV/V output for plastic machinery |
Model |
PT124G-112 |
Pressure range |
0-3.5MPa…0-150MPa (0-500psi…20000psi) |
Over Pressure |
1.5 X FSO |
Combined Error |
0.25% or 0.5% FSO (Including Linearity, Repeatability & Hysteresis) |
Output |
2mV/V; 3.33mV/V |
Input Voltage |
10VDC |
Repeatability |
+/- 0.2%FSO |
Bridge Resistance Input |
345 Ohms minimum |
Bridge Resistance Output |
350 Ohms +/- 10% |
Internal Shunt Calibration (R-Cal) |
80% FSO +/- 1% |
Insulation Resistance |
200 megohms @ 100 Vdc |
Max Diaphragm Temperature |
400 °C |
Mounting Torque |
500 inch/lbs. max. |
Standard Wetted Parts |
Diaphragm coated 15-5 PH SST |
Electrical connector |
5pins , 6pins , 8pins optional |
Process connector |
M14×1.5, 1/2-20UNF, M18×1.5 Optional |

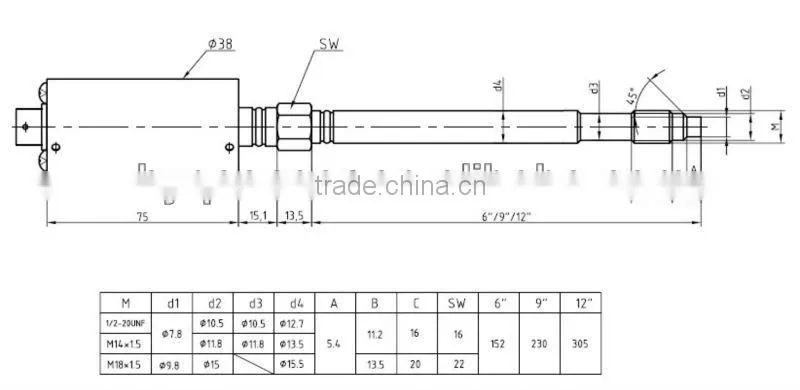

Dimension
Order Guide : with "* "are required , with "---"is optional
Model |
Range |
output |
Rigid & flexible length (inch) |
Screw Thread |
Electric connector |
Accuracy |
others |
PT124G-112 |
* |
* |
* |
* |
* |
* |
--- |
Example:PT124G-112-500Bar-2mV/V -6”-1/2-20UNF-5PIN-0.5% |
|||||||
this rigid stem melt pressure transmitter with mV/V output for plastic machinery can mating with our N series to local display the pressure .
Our company
Shanghai Zhaohui Pressure Apparatus Co., Ltd (ZHYQ) is the leading manufacturer which specializes in the design and construction of various transducer, transmitter and automation control products in China.
Founded in 1999, ZHYQ has actively brought in advanced production equipment and manufacturing process at home and abroad, developed and produced the transducers more than 80 series and 500 models successfully, which include industrial pressure transducer/transmitter, project equipment pressure transmitter, melt pressure transducer/ transmitter, melt pressure gauge, level transmitter, temperature transducer, tension transducer/ transmitter, burst Plug, intelligent digital indicator, and all kinds of sensor chips and etc.
ZHYQ insists on the development strategy with High-tech, High Quality, High level service, Creating world name brand, focuses on the challenge and stress attended by the customers, offers the competitive products and service and creates the economic value for the customers persistently.
Our factory
1. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before ship to our clients.
2. How fast can you delivery goods?
always 7-10 working days since order confirmed , if need goods urgently, we can arrange expedited production.
3. What’s your MOQ?
We have no MOQ limits, 1 piece for test purpose at first is acceptable.
4. How long is your product warranty?
7 days replacement and 12 months repair free of charge for quality problem
5. can you accept OEM brand ?
Yes, we can accept the OEM brand without extra charge .
6. Can you offer free samples?
Yes, we can offer free samples, however you should pay for the samples at first, and then we will return the cost when you release bulk order.
7. How long your quotation valid ?
our quotation valid for 6 months .
8. What trade terms , payment mode and payment terms can you accept?
Trade terms : Ex- Works, FOB, CNF
Payment mode: T/T, Western Union, PayPal, Money Gram
Payment terms: 100% payment before shipment
9. What express ways you can offer, can we use our own courier?
We can send goods to you by DHL, TNT, UPS, SF, EMS for freight prepard , also can use your own courier account to do the freight collect , just for your convenience.
