Description

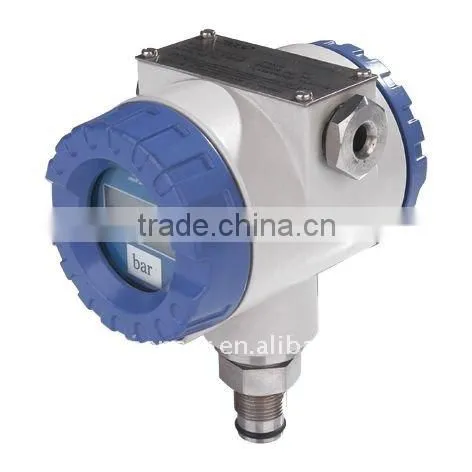

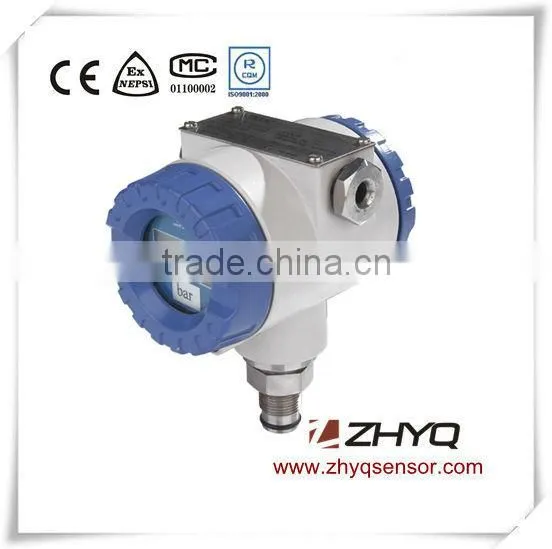

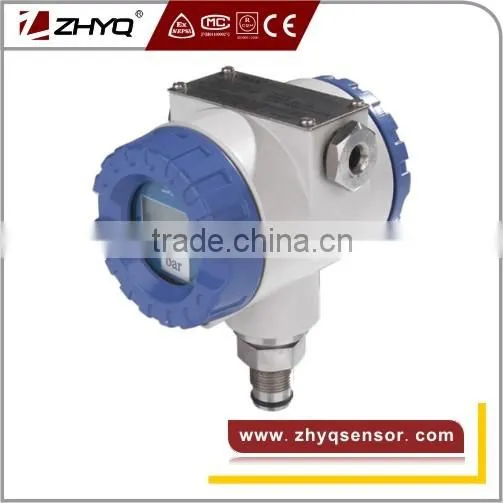

PT124B-282 is 4-20mA Explosion proof Pressure sensor with HART communiction , this series is intelligent pressure transmitter adopted high-performance pressure sensor chip , compensation technology of digital circuit, and temperature compensation . the output is 4-20mA, with HART optional, stainless steel sealed construction with LCD display, suitable for all kinds of industrial process measuring and controlling. it passed EXibIICT4 certificate. especial for the hazard environment . if with HART communication ,it can long distance transmission, reading, display and input all the work information and additional data of the transmitter with handheld terminal or field bus.
Feature
Digital circuit compensation technology
Intrinsically safe
High accuracy, high stability
Explosion proof shell with LCD display
Output is 4-20mA,and load HART protocol optional
Application
Suitable for the occasion of chemical fiber
environmental protection, medicine, industrial control and etc.
Measure the pressure or height of the liquid level of corrosive medium, like acid, alkaline
Specification
Name | 4-20mA Explosion proof Pressure sensor with HART communiction |
Model | PT124B-282 |
Pressure range | -1~0~2000bar |
Over load | 150%FS |
Burst pressure | 300%FS |
Output | 4-20mA ; HART optional |
Power supply | 24 (12~36) VDC |
Response time | <5ms |
Combine error | 0.5% FSO(Including Linearity, Repeatability & Hysteresis) |
Pressure connection | M20×1.5 , G1/2 , G1/4 , 1/2NPT ( customer tailor ) |
Operating temperature | -20°C ~ 85°C |
Temperature compensation | 0°C ~ 75°C |
Electrical connector | Terminal Block |
Material | SS304 , SS316L optional |
Explosion proof grade | ExiallCT4 |

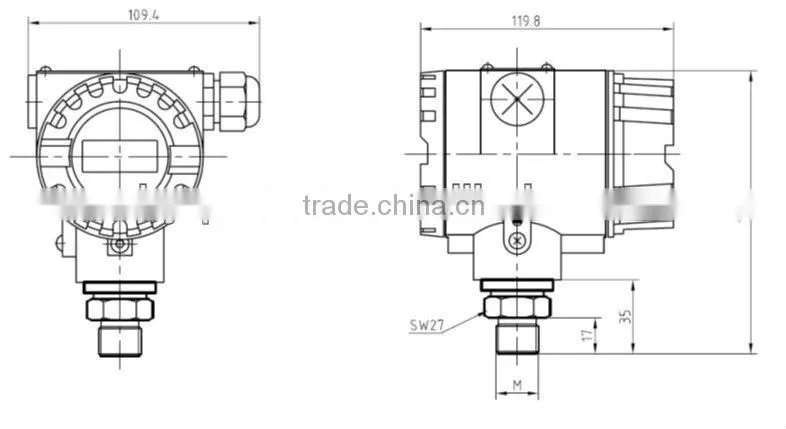

Dimension
Order Guide : with "* "are required , with "---"is optional
Our company
Shanghai Zhaohui Pressure Apparatus Co., Ltd (ZHYQ) is the leading manufacturer which specializes in the design and construction of various transducer, transmitter and automation control products in China.
Founded in 1999, ZHYQ has actively brought in advanced production equipment and manufacturing process at home and abroad, developed and produced the transducers more than 80 series and 500 models successfully, which include industrial pressure transducer/transmitter, project equipment pressure transmitter, melt pressure transducer/ transmitter, melt pressure gauge, level transmitter, temperature transducer, tension transducer/ transmitter, burst Plug, intelligent digital indicator, and all kinds of sensor chips and etc.
ZHYQ insists on the development strategy with High-tech, High Quality, High level service, Creating world name brand, focuses on the challenge and stress attended by the customers, offers the competitive products and service and creates the economic value for the customers persistently.
Our factory
1. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before ship to our clients.
2. How fast can you delivery goods?
always 7-10 working days since order confirmed , if need goods urgently, we can arrange expedited production.
3. What’s your MOQ?
We have no MOQ limits, 1 piece for test purpose at first is acceptable.
4. How long is your product warranty?
7 days replacement and 12 months repair free of charge for quality problem
5. can you accept OEM brand ?
Yes, we can accept the OEM brand without extra charge .
6. Can you offer free samples?
Yes, we can offer free samples, however you should pay for the samples at first, and then we will return the cost when you release bulk order.
7. How long your quotation valid ?
our quotation valid for 6 months .
8. What trade terms , payment mode and payment terms can you accept?
Trade terms : Ex- Works, FOB, CNF
Payment mode: T/T, Western Union, PayPal, Money Gram
Payment terms: 100% payment before shipment
9. What express ways you can offer, can we use our own courier?
We can send goods to you by DHL, TNT, UPS, SF, EMS for freight prepard , also can use your own courier account to do the freight collect , just for your convenience.
