Help CenterFlush Diaphragm Membrane Pressure Sensor
Related Products
-
PT124B-212 High Precision Diffused Silicon Pressure SensorNegotiableMOQ: 1 Piece -
Smart Industrial 4-20mA HART Pressure SensorNegotiableMOQ: 1 Piece
-
4-20mA Explosion Proof Pressure Sensor With HART CommunictionUS$ 50 - 120MOQ: 1 Piece
-
Industrial 4-20mA Pressure TransducerNegotiableMOQ: 1 Piece
-
Standard Explosion Proof Pressure Transmitter for Coal Mine ApplicationUS$ 75 - 125MOQ: 1 Piece
Flush diaphragm membrane pressure sensor, it adopts firm material with special treatment, it hardly to damage by the tiny particles in the measurement medium. This product design with compact construct, shock-resistant, it solves the problems during the measurement that the pressure port is easily blocked, it can be interchangeable with the similar world standard products.
Application
This series product is suitable for polyurethane device, papermaking, paint, medical pharmacy, food & Beverage.
Features
Various industrial standard signal output
Various electrical connector available
Certain stock for shortening delivery time
High accuracy, free of calibration
compact dimension design
Specification
Model |
PT124B-214 Flush diaphragm membrane pressure sensor |
Pressure range |
0~10bar~1000bar |
Over load |
150%FS |
Burst pressure |
300%FS |
Output |
4-20mA, 1-5V/0-5V, 0-10V |
Power supply |
12~36VDC |
Response time |
<5ms |
Combine error |
0.5% FSO (Including Linearity, Repeatability & Hysteresis) |
Repeatability |
≤ +/- 0.2%FSO |
Long term stability |
≤ +/-0.2%FS/year |
Pressure connection |
M20×1.5,G1/2,G1/4,1/2NPT ( customer tailor ) |
Operating temperature |
-20 ℃ ~ 80 ℃ |
Temperature compensation |
0℃ ~ 60℃ |
Electrical connector |
Bendix connector,Hirschman DIN4365 and Gland lead |

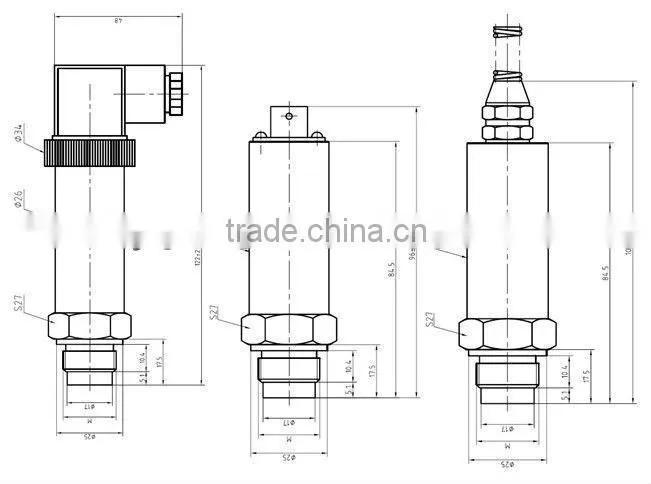

Dimensions
Ordering guide * are required, --- is optional
Model |
Range (bar) |
Output |
Screw Thread |
Electric connection |
Accuracy |
Diameter (mm) |
Other requirement |
PT124B-214 |
* |
* |
* |
* |
* |
* |
--- |
Example: PT124B-214-80Bar-4/20mA-G1/2 | |||||||
1, Our quotation is always valid for you if there is no world market unrest.
2, Receiving your new inquiry, the infos of products & the best price will be provided you asap.
3, 7 days replacement and 12 months repair free of charge for quality problem.
4, Shipment port: Shanghai.
5, Payment: T/T, Western Union, PayPal, Money Gram optional
6, OEM available
7, Delivery time is 7-10 working days.
8, All goods will be fully checked by our QC.
9, Package: The goods will be put into the packing box with instructions and certificate of quality first. Then we pack them into the carton filling with polystyrene foam avoiding the damage to the products.
10, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.
Our company
Shanghai Zhaohui Pressure Apparatus Co., Ltd (ZHYQ) is the leading manufacturer which specializes in the design and construction of various transducer, transmitter and automation control products in China.
Founded in 1999, ZHYQ has actively brought in advanced production equipment and manufacturing process at home and abroad, developed and produced the transducers more than 80 series and 500 models successfully, which include industrial pressure transducer/transmitter, project equipment pressure transmitter, melt pressure transducer/ transmitter, melt pressure gauge, level transmitter, temperature transducer, tension transducer/ transmitter, burst Plug, intelligent digital indicator, and all kinds of sensor chips and etc.
ZHYQ insists on the development strategy with High-tech, High Quality, High level service, Creating world name brand, focuses on the challenge and stress attended by the customers, offers the competitive products and service and creates the economic value for the customers persistently.
Our factory
1. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before ship to our clients.
2. How fast can you deliver goods?
For small orders (less than 20 pieces), we can deliver within 7 working days, for bulk orders, we usually need 10~15 working days. But if you need goods urgently, we can arrange expedited production.
3. What’s your MOQ?
We have no MOQ limits, so 1 piece for test purpose at first is acceptable.
4. How long is your product warranty?
We offer 1 year warranty for all of our products, within the warranty term, if there are any problems with the product itself, we would repair it for free.
5 What’s your production capacity
Our production capacity is about 8,000 pieces per month.
6. Can you offer free samples?
Yes, we can offer free samples, however you should pay for the samples at first, and then we will return the cost when you release bulk order.
7. What detailed information do we need to provide if we want to place an order?
We need to know the following info, such as application, pressure range, output, accuracy, thread type, electric connector and other related parameters refer to our ordering guide.
8. What payment mode and payment terms can you accept?
Payment mode: T/T, Western Union, PayPal, Money Gram
Payment terms: payment before shipment
9. What trade terms can you accept?
Ex- Works, FOB, CNF
10. What express ways can you offer, can we use our own courier?
We can send goods to you by DHL, TNT, UPS, SF, EMS, and charge the freight cost from you, or you can use your own courier, just for your convenience.
