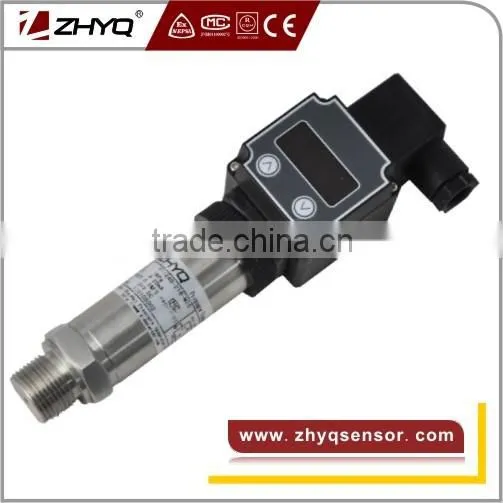

PT124B-216 local LED display pressure transmitter, it adds a LED indicator base on the model PT124B-210, it can read value locally, easy for use. This series products with widely pressure range, high performance, and design with general type, it can be interchangeable with the similar world standard products.
Application
This product suitable for hydraulic pressure, auto-controlling house, constant pressure water supply, loading machine, liquid pressure measuring and controlling in automatization fields and with local display.
Features
Various industrial standard signal output
Various electrical connector available
Certain stock for shortening delivery time
High accuracy, free of calibration
compact dimension design
Specification
Model |
PT124B-216 local LED display pressure transmitter |
Pressure range |
-1~0~1bar; 0~1bar~2000bar |
Over load |
150%FS |
Burst pressure |
300%FS |
Output |
4-20mA |
Power supply |
12~36VDC |
Response time |
<5ms |
Combine error |
0.5% FSO; 0.25%FS (Including Linearity, Repeatability & Hysteresis) |
Repeatability |
≤ +/- 0.2%FSO |
Long term stability |
≤ +/-0.2%FS/year |
Pressure connection |
M20×1.5,G1/2,G1/4,1/2NPT ( customer tailor ) |
Operating temperature |
-20 ℃ ~ 80 ℃ |
Temperature compensation |
0℃ ~ 60℃ |
Electrical connector |
Hirschman DIN43650 |
Dimensions
Ordering guide * are required, --- is optional
Model |
Range (bar) |
Output |
Screw Thread |
Electric connection |
Accuracy |
Diameter (mm) |
Other requirement |
PT124B-216 |
* |
* |
* |
* |
* |
* |
--- |
Example: PT124B-215-80Bar-4/20mA-G1/2 | |||||||
ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.
