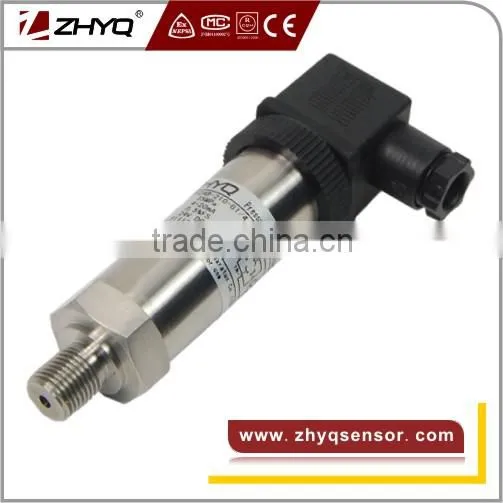

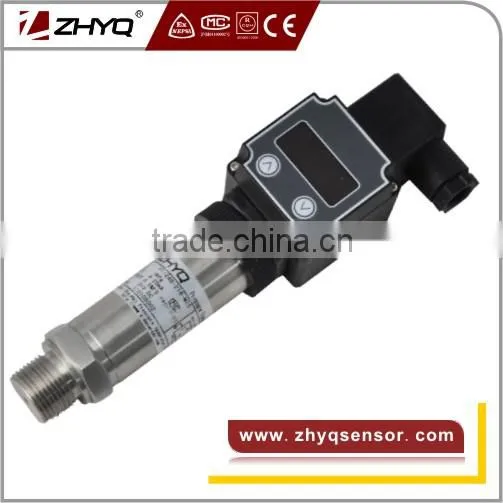

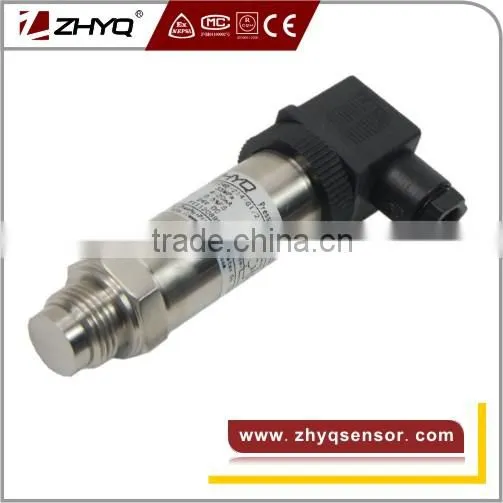

PT124B/G-210 series Industrial 4-20mA S-10 pressure transmitter , adopt strain gauge sensor chip technology , which suitable high pressure range , has been carefully designed to cover the majority of industrial applications with instruments readily available from stock. Compact design and robust construction make these instruments suitable for all application in machine construction, process control, laboratory or quality and materials testing equipment.
Application
Mechanical Engineering Industry
Hydraulic and level measurement
Gas tank pressure monitoring
Industrial test and control
General industrial applications
Features
Various industrial standard signal output
Various electrical connector available
Certain stock for shortening delivery time
High accuracy, free of calibration
compact dimension design
Specification
Model |
PT124B-210 |
Pressure range |
-1~1bar, 0 ~ 1bar~ 2000bar |
Over load |
150%FS |
Burst pressure |
300%FS |
Output |
4-20mA, 0-10V, 0-5V |
Power supply |
12~36VDC |
Response time |
<5ms |
Combine error |
0.5% FSO; 0.25%FS (Including Linearity, Repeatability & Hysteresis) |
Repeatability |
≤ +/- 0.2%FSO |
Long term stability |
≤ +/-0.2%FS/year |
Pressure connection |
M20×1.5,G1/2,G1/4,1/2NPT ( customer tailor ) |
Operating temperature |
-20 ℃ ~ 80 ℃ |
Temperature compensation |
0℃ ~ 60℃ |
Electrical connector |
Bendix connector,Hirschman DIN4365 and Gland lead |
Industrial 4-20mA S-10 pressure transmitter
Dimensions
Hot products
Ordering guide * are required, --- is optional
Model |
Range (bar) |
Output |
Screw Thread |
Electric connection |
Accuracy |
Diameter (mm) |
Other requirement |
PT124B-210 |
* |
* |
* |
* |
* |
* |
--- |
Example: PT124B-210-60Bar-4/20mA-G1/2-Hirschmann-0.5%-26 | |||||||
ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.
