Help CenterPT124B-221 Submersible Local Display Level Transmitter
Related Products
-
PT124B-220 Submersible Liquid Level TransmitterUS$ 125 - 165MOQ: 1 Piece -
PT124B-216 Local LED Display Pressure TransmitterUS$ 95 - 125MOQ: 1 Piece
-
PT124B-214 Flush Diaphragm Membrane Pressure TransmitterUS$ 85 - 120MOQ: 1 Piece
-
High Temperature Pressure Transmitter With Cooling FanUS$ 55 - 105MOQ: 1 Piece
-
PT124B-217 Clamp Sanitary Pressure TransmitterUS$ 85 - 115MOQ: 1 Piece

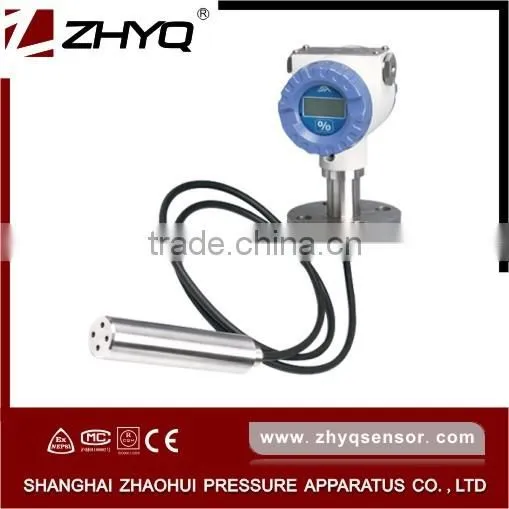

PT124B-221 Submersible local display level transmitter is based on the standard level transmitter PT124B-220to add LCD display indicator, standard 4-20mA (2 wires) output. It adopts superb encapsulation technology and perfect assembly process to make sure the products of long-term work without leakage, and the cable with vent tube, it makes the measurement value not affect by the external atmospheric changes, it is really a cost-effective product.
Application
It can be used for liquid measuring for petroleum, metallurgy, hydraulic, city water supply, sewage treatment, hygrometry and etc.
Features
Various industrial standard signal output
Various electrical connector available
Certain stock for shortening delivery time
High accuracy, free of calibration
compact dimension design
Specification
Model |
PT124B-221 Submersible local display level transmitter |
Pressure range |
0 ~ 1mH2O~100mH2O |
Over load |
150%FS |
Output |
4-20mA |
Power supply |
12~36VDC |
Combine error |
±0.5% FSO (Including Linearity, Repeatability & Hysteresis ) |
Long term stability |
≤ +/-0.2%FS/year |
Repeatability |
≤ +/- 0.2%FSO |
Response time |
<10ms |
Pressure connection |
throw-in type |
Explosion proof grade |
ExiallCT4 |
Operating temperature |
-20℃ ~ 85℃ |
Temperature compensation |
-10℃ ~ 60℃ |
Protection grade |
IP68 |

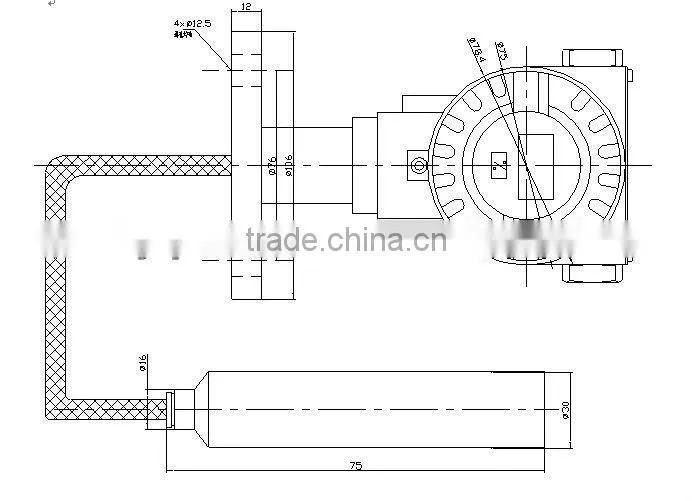

Dimensions
Ordering guide * are required, --- is optional
Model |
Range (bar) |
Output |
Screw Thread |
Electric connection |
Accuracy |
Diameter (mm) |
Other requirement |
PT124B-221 |
* |
* |
* |
* |
* |
* |
--- |
Example: PT124B-221-10mH2O-4/20mA-15m cable | |||||||
Our company
Shanghai Zhaohui Pressure Apparatus Co., Ltd (ZHYQ) is the leading manufacturer which specializes in the design and construction of various transducer, transmitter and automation control products in China.
Founded in 1999, ZHYQ has actively brought in advanced production equipment and manufacturing process at home and abroad, developed and produced the transducers more than 80 series and 500 models successfully, which include industrial pressure transducer/transmitter, project equipment pressure transmitter, melt pressure transducer/ transmitter, melt pressure gauge, level transmitter, temperature transducer, tension transducer/ transmitter, burst Plug, intelligent digital indicator, and all kinds of sensor chips and etc.
ZHYQ insists on the development strategy with High-tech, High Quality, High level service, Creating world name brand, focuses on the challenge and stress attended by the customers, offers the competitive products and service and creates the economic value for the customers persistently.
Our factory
1. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before ship to our clients.
2. How fast can you deliver goods?
For small orders (less than 20 pieces), we can deliver within 7 working days, for bulk orders, we usually need 10~15 working days. But if you need goods urgently, we can arrange expedited production.
3. What’s your MOQ?
We have no MOQ limits, so 1 piece for test purpose at first is acceptable.
4. How long is your product warranty?
We offer 1 year warranty for all of our products, within the warranty term, if there are any problems with the product itself, we would repair it for free.
5 What’s your production capacity
Our production capacity is about 8,000 pieces per month.
6. Can you offer free samples?
Yes, we can offer free samples, however you should pay for the samples at first, and then we will return the cost when you release bulk order.
7. What detailed information do we need to provide if we want to place an order?
We need to know the following info, such as application, pressure range, output, accuracy, thread type, electric connector and other related parameters refer to our ordering guide.
8. What payment mode and payment terms can you accept?
Payment mode: T/T, Western Union, PayPal, Money Gram
Payment terms: payment before shipment
9. What trade terms can you accept?
Ex- Works, FOB, CNF
10. What express ways can you offer, can we use our own courier?
We can send goods to you by DHL, TNT, UPS, SF, EMS, and charge the freight cost from you, or you can use your own courier, just for your convenience.
