Specifications
rotogravure printer1.adopts computer to control the regester system
2.the cocler sets as the user want.

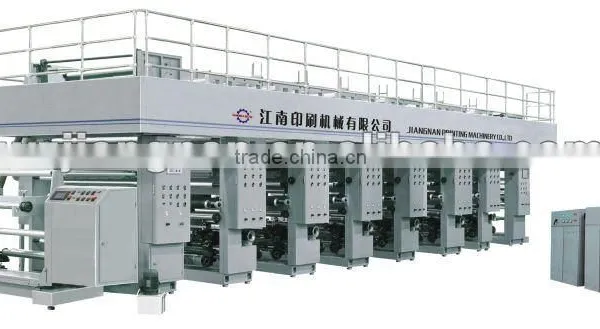

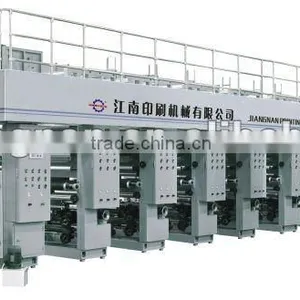

rotogravure printer
Performance characteristics:
1.Rotogravure Printing Machine
Traction and rewinding are controlled by independent frequency conversion motor; tension system is autocontrolled and synchro with the machine.
2.Color register system (lengthways) is controlled by independent micro-processor;it can modify the difference or error rapidly. Machine has many functions such as display of color-register error, general revising of system error and alarming of bad color-register. (standstill picture device is for option)
3.Unwinding and material-feeding traction adopts magnetic powder arrester and tension inspector, tension controller adopts full-automatic type to control the unwinding tension.
4.Rotogravure Printing Machine Adopts shaft-through type to load and unload the cylinder, bevel clamp device.
5.Printing press roller and traction glue roller are controlled by pneumatic components.
6.Cylinder and scraper are moveable, can be three-dimensional adjusted, it can control the ink-scraper angle and pressure efficiently..
7.Machine collocated with pneumatic septum pump and ink circulation system.
8.The drying box is closed type, temperature is autocontrolled, open and close is pneumatic, and the heating source is installed outside.
9.Rewinding unit adopts double shafts drove by double motors. Unwinding tension isautocontrolled and synchro with the main machine; it can change the material without stopping the machine.
10.This machine also has meter-counter.
Printing materia |
OPP,BOPP,PE,PET,PVC Soft roll type material such as OPP, BOPP, PE, PET, PVC, Aluminum foil, paper etc. |
Color group |
2-12 (colors) |
Material width |
600-1300mm |
Printing length (cylinder dia.) |
250-880mm |
cylinder diameter: |
80-280mm |
Max. machine speed |
130m/min |
Printing speed |
20-110m/min |
Unwinding and rewinding dia. |
φ600mm φ800mm |
Overprint precision |
≤0.15mm |
|
Max tension
|
30kg
|
