Specifications
thermoforming machine1.this machine output is 21000psh
2.the finished product ratio is more than 92%
ntrolled by PLC

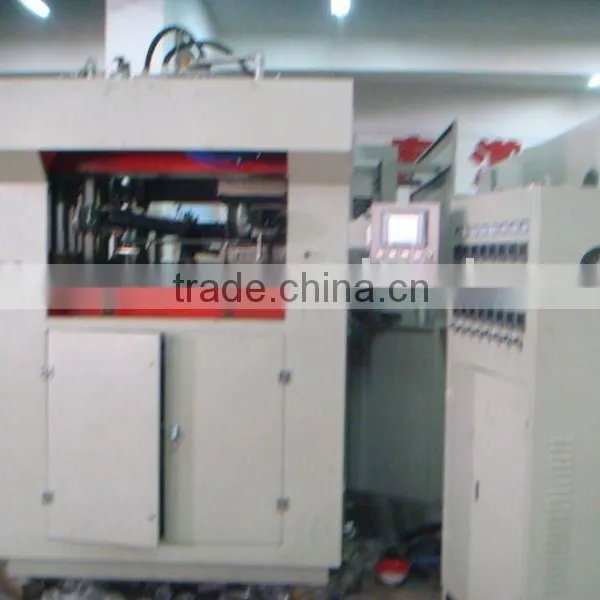

Plastic Cup Making Machine is new equipment, which has been developed and produced with many years of machine producing experiences of our company, it uses stable hydraulic system and pneumatic technology to control together, its operation is stable, noise is small, mold locking ability is strong and quality is high. It mainly consists of formed machine, material rack, material receiving machine and screen controlled by electricity.
A)The machine is completely automatic, productive speed is fast. Different products can be produced with different molds.
B) It uses import famous brands of electric and pneumatic fittings, so the operation is stable, quality is reliable and life is long.
C) The design of the mold is advanced and special, heat the thermoplastic plastic flake board and put on the mold, pull the piston, give the pressure to the air, keep the flake board close to the inside of the mold to form, then, cut and automatically blow the product. The structure of the whole machine is compact, one mold has all the functions, like pressure giving, forming, cutting, cooling, and finished product blowing, so the process is short, quality of the finished product is high and matches with national sanitary standard.
Technical Parameters
Model |
JN-CK660C |
Max.Forming Area |
650 x 330 mm |
Material Used |
PP,HIPS,PET,PVC,PE |
Sheet Thickness Range. |
0.20 --2.2 mm |
Using power |
3x380V+N+PE,50HZ |
Approx. Running Speed |
15-32 strokes / min |
Suitable Sheet Width |
300- 660 mm in rolls. |
Mode of Cutting Arrangement. |
In mould automatic |
Max.Draw Depth, i.e. Cup Length. |
125 mm |
Oil Pump Motor Power |
7.5KW |
Max. Sheet Roll Diameter. |
800 mm |
Heating Arrangement |
Top + bottom |
Temperature Controller & Thermocouple. |
PID : K-Type |
Type of Mould |
Multi cavity:1 - 3 row. |
Approx. Electricity Consumption |
35KW |
sending motor power(Japan YASKAWA) |
2.4-4.4kw |
Adjustable length of the trip |
100-400mm |
Approximate Dimension |
L3400 × W1500 × H2300 (mm) |
Rated heating power |
67-78kw |
Air consumption |
2600L/min |
Machine weight |
4.3 T |
