CE UL ISO SGS 0.333V 16mm Plastic split core current sensor
- 2000 Piece / Pieces per Month
- shanghai
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Jiangyin Spark | Model Number: | XH-SCT-10 16 24 36 |
Product Description

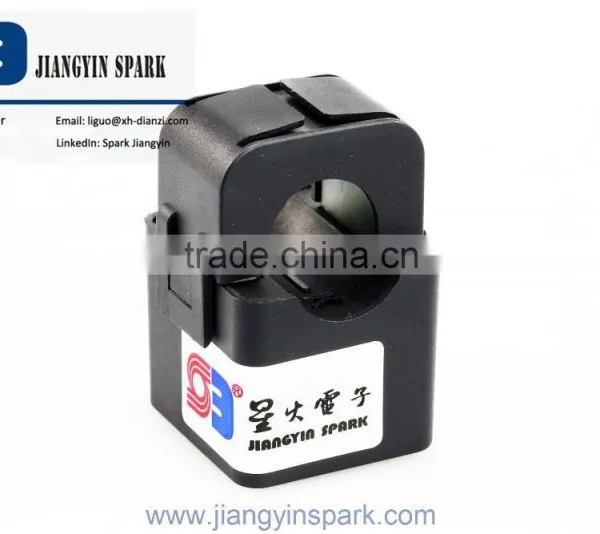

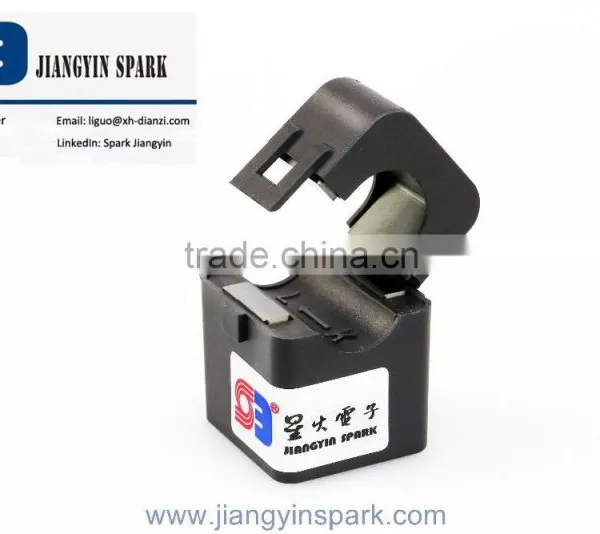

XH-SCT-T16 split core current transformer
0-120A/0.333v split core ct, diameter 16mm.
Specifications:
Input current 0A-120A
Output current: 0.333V in normal, and customized for voltage or mA.
Secondary turns: 3000 or as per customer datasheet
Wire leads: 24# AWG UL2464 24AWG
Frequency: 50/60Hz
Accuracy: 1%
DC resistance: 460ohms @ 20degree Celsius
Applications:
Portable instruments
Sub-metering
Monitor motor load
Drawing
----------Diameter 16mm
(mm)
Model | Diameter | Ratio | Rated Amps | Accuracy |
XH-SCT-T16 | 16mm | 3000:1 | 0-120A | 0.5, 1.0 |
CE for T16.
T16's performance
Why choice split core current transformer from Jiangyin spark?
CE UL ETL, have good reputation in the market.
Our 60A/0.333V split core ct’s accuracy can catch 0.3%, and it’s price is very competitive on the market.
We still have very low current split core ct, 5A/0.333V, accuracy can reach within 0.5%.
Since 1995, have rich experience, 4-20mA/0.333V/0-10V/0-5V output we all have.
My contact information:

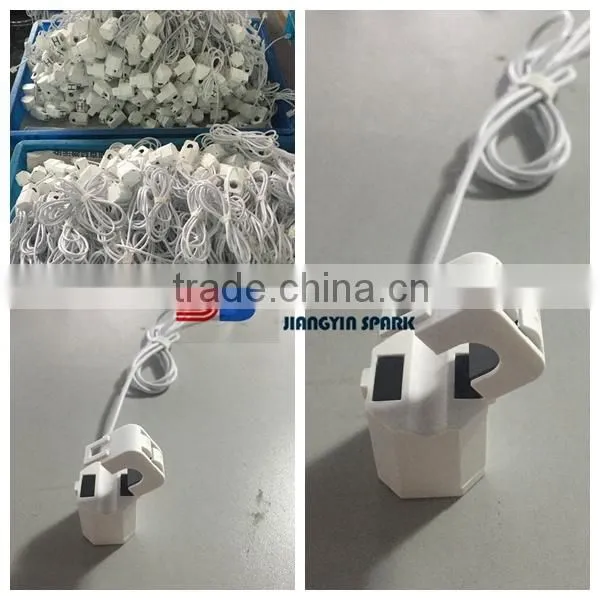

And we have white color type split core ct, but this color's MOQ is 500pcs, because it's not normal type split core ct.

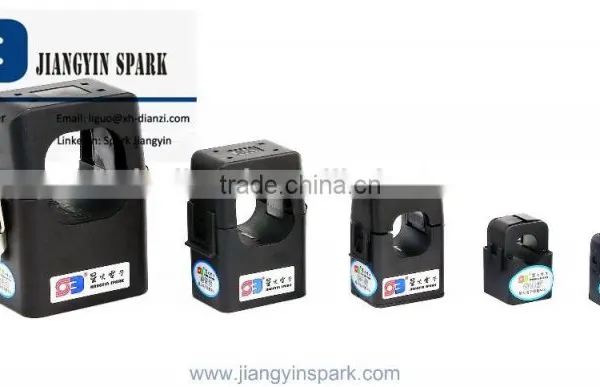

Other T type split core current transformer
Model | Diameter | Ratio | Rated Amps | Accuracy |
XH-SCT-T10 | 10mm | 3000:1 | 0-80A | 0.5, 1.0 |
XH-SCT-T16 | 16mm | 3000:1 | 0-120A | 0.5, 1.0 |
XH-SCT-T24 | 24mm | 3000:1 | 0-300A | 0.5, 1.0 |
XH-SCT-T36 | 36mm | 3000:1 | 0-600A | 0.5, 1.0 |
XH-SCT-T70 | 70mm | 200:1 | 0-1000A | 0.5 |
Special T10 | 10mm | 3000:1 | 0-5A | Within 0.5 |
If you are interested in flexible rogowski coil, pls click.
If you are interested in our 0.333v split core current transformer, pls click, it's very pupular in USA's market.
-------rogowski coil--------0.333v split core current transformer
