Home > Electrical & Electronics > Passive Components > Capacitor > 5A 1Aoutput Split-core Current Transducer ce 100/5A 1000/5A

5A 1Aoutput Split-core Current Transducer ce 100/5A 1000/5A

Name: 5A 1Aoutput Split-core Current Transducer ce 100/5A 1000/5A
Brand: Jiangyin Spark
SKU: 130487645
Availability: InStock

5A 1Aoutput Split-core Current Transducer ce 100/5A 1000/5A thumbnail-1

5A 1Aoutput Split-core Current Transducer ce 100/5A 1000/5A thumbnail-2

5A 1Aoutput Split-core Current Transducer ce 100/5A 1000/5A photo-1

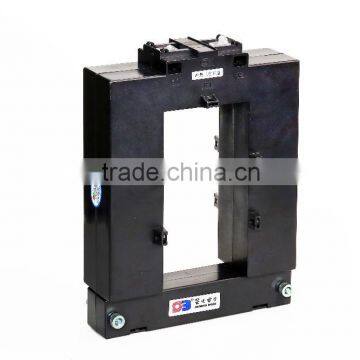

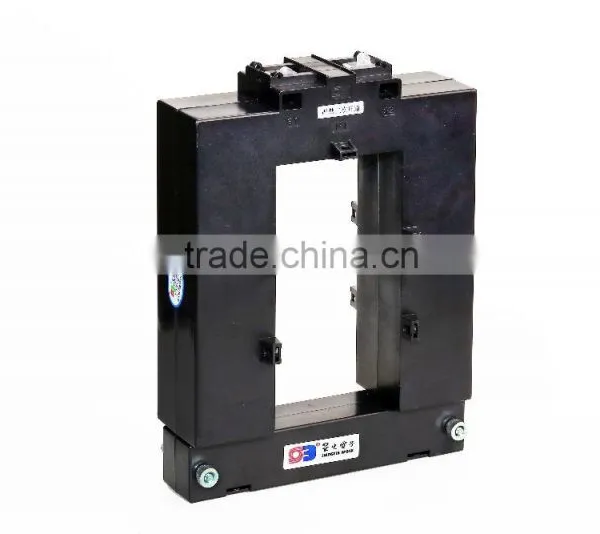

5A 1Aoutput Split-core Current Transducer ce 100/5A 1000/5A photo-2

US$ 15 - 55 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

Jiangyin Spark

Model Number:

XH-30x20 50x80 120x80

Contact Supplier Request Quote Chat Now

Jiangyin Spark Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name Jiangyin Spark

Model Number XH-30x20 50x80 120x80

Specifications

1.low cost
2.good quality
3.OEM offered
4.split core design
5.easy amd portable current measurement

Key Specifications/Special Features:

Case material: PBT resin UL flame retardant
Rating: 94 to V0
Rated primary current: 100 to 5, 000A AC
Rated secondary current: 5 or 1A AC
Rated load: 1, 2.5, 5.0, 10 and 30VA
Accuracy: 0.5, 1.0 and 3.0 class
Rated short-time thermal current (Ith): 20In
Rated dynamic current (Idyn): 2.5Ith
Highest voltage for equipment (Um): 720V AC RMS
Rated power-frequency withstand voltage: 3, 000V AC RMS
Frequency range: 50/60Hz
Operating temperature: -15 to 60° C

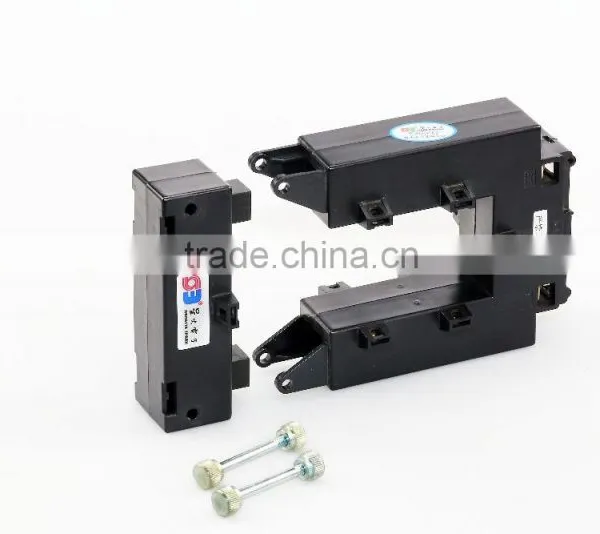

Split core design, safer, easy to install and portable
Accessories: Supplied with feet for base mounting if required
Applications:
Current, power, energy and monitoring devices
Relay protection devices
Power factor correction devices
Available in 5 standard sizes
Standard: IEC 60044-1
RoHS Directive-compliant

spec model	Outside dimension			Though hole dimension		Install dimension
spec model	W	H	D	a	e	M	N
XH-30× 20	90	114	40	22	32	50	49.5
XH-80× 50	114	159	36	52	82	78	49.5
XH-80× 80	144	159	36	82	82	108	49.5
XH-120× 80	144	199	36	82	122	108	49.5
XH-160× 80	184	254	52	82	162	120	49.5
