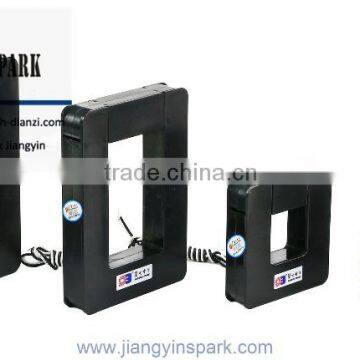

XH-SCT-3000 333mV split core current transformer

Model

I. D.

Rated Amps

Output

Accuracy

SIZE (mm )

A

B

C

D

E

XH-SCT-0750

0.75"
(19.1mm)

5, 15, 30, 50, 70, 100, 150, 200

0.333V

1.0

51.6

54.1

16.6

19.1

18

XH-SCT-1250

1.25"
(31.8mm)

70, 100, 150, 200, 250, 300, 400, 600

1.0

82.3

85.3

26.4

32

32.3

XH-SCT-2000

2.00"
(50.8mm)

400, 600, 800, 1000, 1200, 1500

1.0

120

125

29.6

52.5

52

XH-SCT-3000

3.00" x 5.00"
(76.2mm x127mm)

1000, 1200, 1500, 2000.3000

1.0

145

199

30.5

76

130
