150A Current, 19mm Window Size, Low Voltage Transformer Split Core Current Transformer

150A Current, 19mm Window Size, Low Voltage Transformer Split Core Current Transformer thumbnail-1
150A Current, 19mm Window Size, Low Voltage Transformer Split Core Current Transformer thumbnail-2
150A Current, 19mm Window Size, Low Voltage Transformer Split Core Current Transformer thumbnail-3
150A Current, 19mm Window Size, Low Voltage Transformer Split Core Current Transformer photo-1
150A Current, 19mm Window Size, Low Voltage Transformer Split Core Current Transformer photo-2
150A Current, 19mm Window Size, Low Voltage Transformer Split Core Current Transformer photo-3
US$ 5 - 20 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Jiangyin Spark
Model Number:
XH-SCT-0750 1250 2000
Contact Supplier Request Quote Chat Now
Jiangyin Spark Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Jiangyin Spark
Model Number XH-SCT-0750 1250 2000

Split core current transformer with high quality and CE UL certification

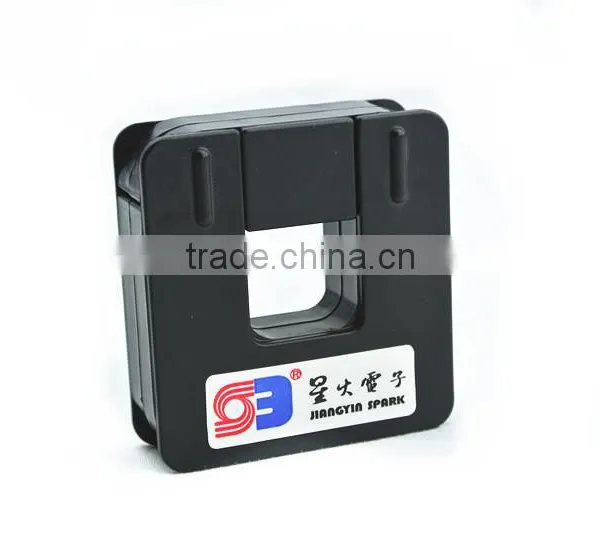

Split Core Current Transformer SCT 333mV Secondary Output

The JIANGYIN SPARK series of split core current transformer are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary

Features

Low cost.
Split core design;safer,easier installation,portable.

Specifications

Rated Current 5A to 150A loads.
Rated output: 0.333Vac
Accuracy:±1% from 5% to 120% of rated current
Phase Angle: less than 2 degrees at 50% of rated current
Insulation Voltage:600Vac
Maximum Primary Voltage:5000Vac(Insulated Conductor)
Operating Temperature:-15°Cto 60°C.
Frequency Range:50-400Hz
Leads:4Foot(105cm),UL 1015,Twisted Pair,0.34 mm2(22AWG)
UL&CE,ETL recognized. RoHS Compliant
Output and leads can be customized

Only we have UL certification in china.

Application

Measures AC current flow to electric motors, lighting, air conditioning equipment, etc.Compatible with HVAC temperature control, power management,building automation systems.

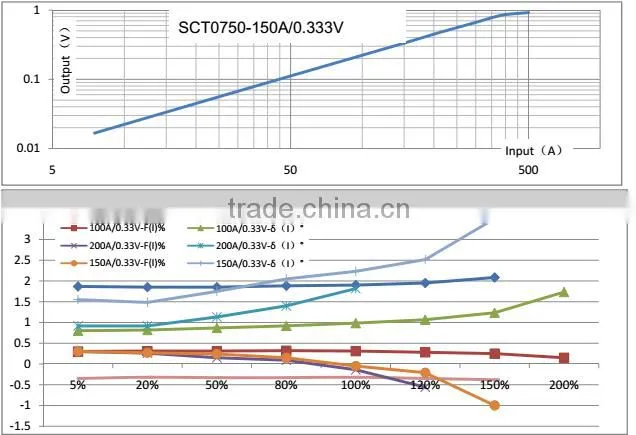

Drawing size

 150A current, 19mm window size, low voltage transformer split core current transformer





Certifications





150A current, 19mm window size, low voltage transformer split core current transformer

150A current, 19mm window size, low voltage transformer split core current transformer
