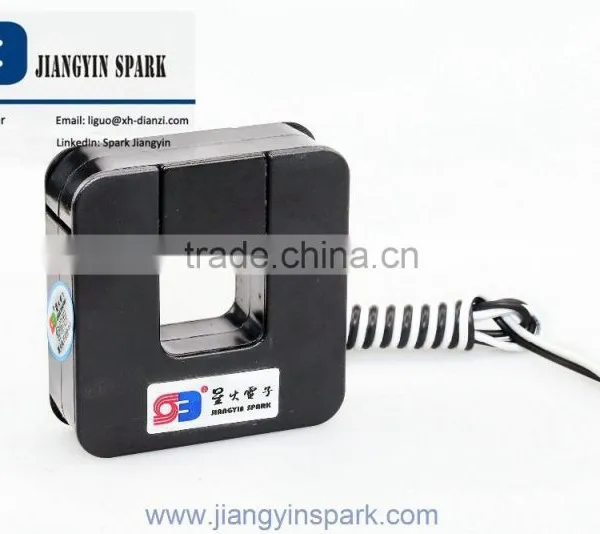

Split Core Current transducer SCT 333mV Secondary Output
The JIANGYIN SPARK series of split core transducer are designed for fast and easy installation. The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation. This method permits a safer, easy and portable current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary
Features
Low cost.
Split core design; safer, easier installation, portable.
Specifications
Rated Current 5A to 3000A loads.
Rated output: 0.333Vac
Accuracy:±1% from 5% to 120% of rated current
Phase Angle: less than 2 degrees at 50% of rated current
Insulation Voltage:600Vac
Maximum Primary Voltage:5000Vac(Insulated Conductor)
Operating Temperature:-15°Cto 60°C.
Frequency Range:50-400Hz
Leads:4Foot(105cm),UL 1015,Twisted Pair,0.34 mm2(22AWG)
UL&CE,ETL recognized. RoHS Compliant
Output and leads can be customiz
Description:
1, These split-core current transformers (CTs) for control Systems offer an easy, safe, and inexpensive method for monitoring
electrical energy usage.
2, Ideal for retrofit applications, the split core makes it possible to attach the CT without disturbing existing wiring. Just open the CT,
3,slip it over the wire, and snap the CT closed. Once assembled, the CTs have no exposed metal parts.
4, The 0.333 VAC output of these CTs is low, making them much more safe to install and use than CTs with current secondary’s.
5, Part numbers with ACT in the middle (ACT series) are accurate to±1% from 5% to 130% of rated current
6, They also have exceptionally low phase angle error, which is essential for accurate power and energy measurements, These CTs swing open for one-handed operation..
7, Each CT has an internal precision burden resistor across the secondary. Each CT includes 2 meter, twisted-pair, 20 AWG leads.
8, Using UL material, flame resistance suitable for UL90-V0, for this produce, CE recognized, and RoHS compliant but with
cheaper price on the market.
9, Rated voltage is 0.66KV, insulation voltage is 2KV, and the rated frequency will be 50HZ or 60hz.
10, And this one is indoor split core CTs, suitable temperature -15℃ to 70℃
Application
Measures AC current flow to electric motors, lighting, air conditioning equipment, etc. Compatible with HVAC temperature control, power management, building automation systems.
