ADSS Cable Manufacturer ! ADSS cable single mode/multi mode aerial adss fiber optic cable price per meter
ADSS Cable Manufacturer ! ADSS cable single mode/multi mode aerial adss fiber optic cable price per meter
1.Brief Introduction

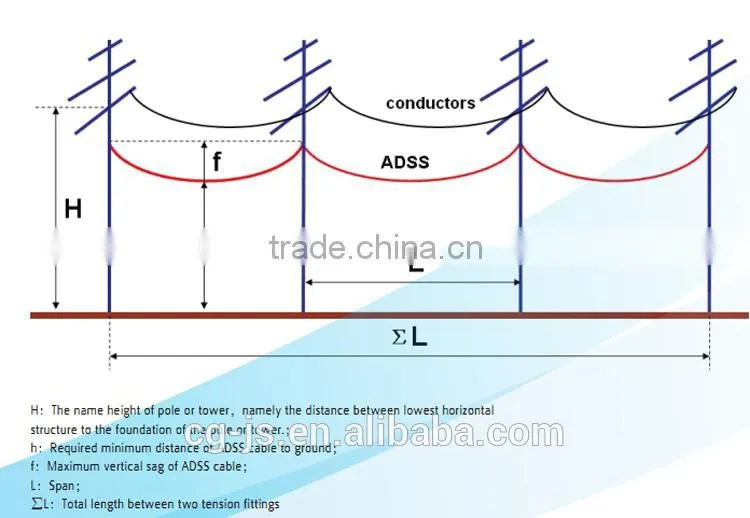

ADSS is idea for installation in distribution as well as transmission environments, even when live-line installations
are required.As its name indicates,there is no support or messenger wire required, so installation is achieved in a single pass.
Product name |
ADSS Cable Manufacturer ! ADSS cable single mode/multi mode aerial adss fiber optic cable price per meter |
Introduction |

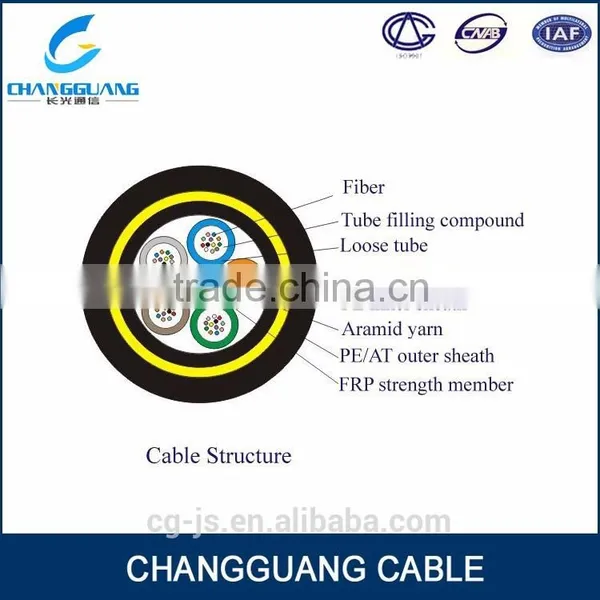

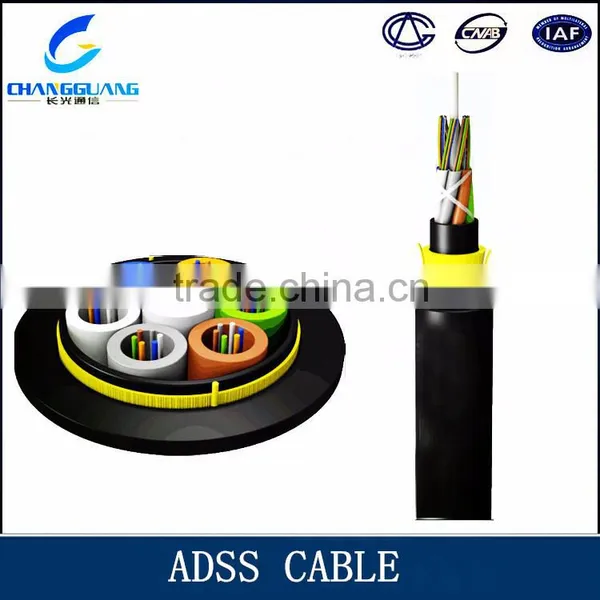

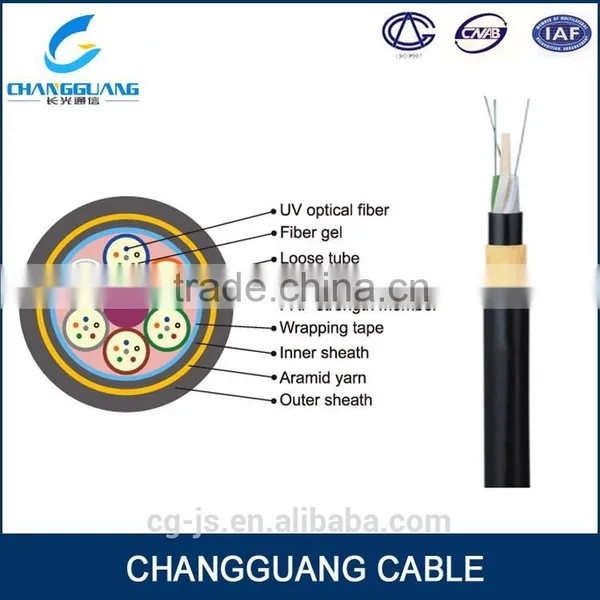

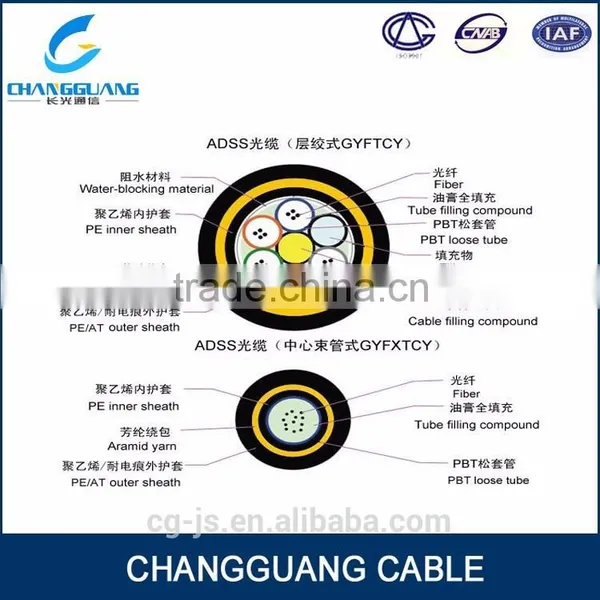

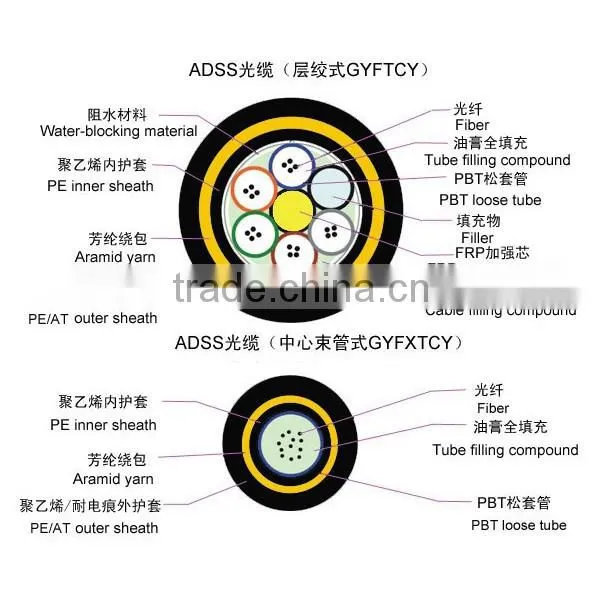

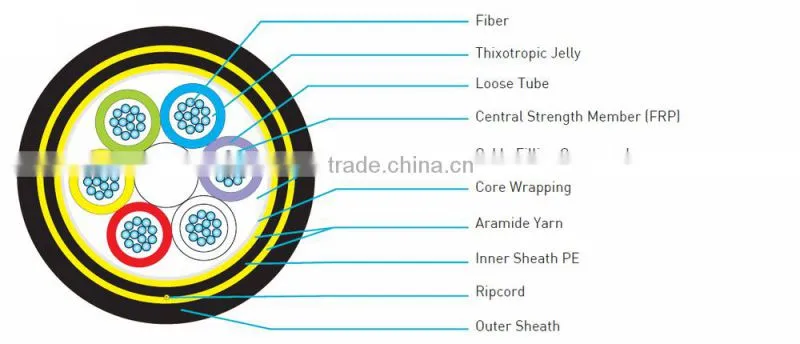

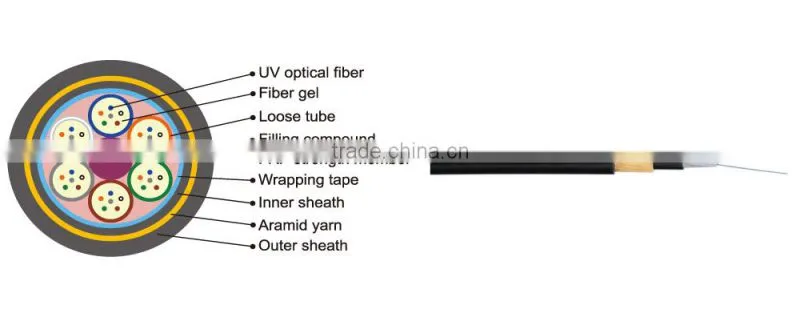

ADSS cable is loose tube stranded.Fibers,250um,are positioned into a loose tube made of high modulus plastics,The tubes are filled with a water-resistant filling compound.The tubes(and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a nonmetallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound,it is covered with thin PE (polyethylene) inner sheath.After stranded layer of aramid yarns are applied over the inner sheath as strength member,the cable is completed with PE or AT (anti-tracking) outer sheath. |
Characteristics |
Can be installed without shutting off the power |
|
Excellent AT performance.The maximum |
|
Aramid yarn strength member ensure tensile strength |
|
Crush resistance and flexibility |
|
PSP enhancing moisture-proof |
|
Small diameter,light weight and friendly installation |
|
Long delivery length |
Standards |
Comply with standard IEEE1222-2004 as well as IEC 60794-1 |
|

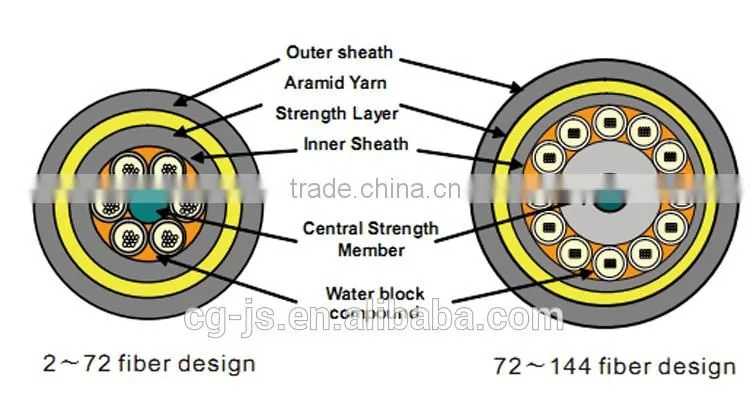

Structural Parameters |
Central Strength Member FRP |
Diameter:2.1mm |
Loose tube(filling gel) |
O.D.;2.0mm |
|
Inner sheath |
Thickness:0.9mm |
|
Mechnicall strength:Aramid yarns |
size: mm2 |
|
Outer sheath |
Thickness:1.70mm |
Technical Parameters |
O.D.: |
12.2 mm |
Cable sectional area |
117 mm2 |
|
Fiber type |
G.652 |
|
Cable weight |
132 kg/km |
|
Max.tensile strength |
15 kn |
|
Max. allowed of tension |
6 kn |
|
Average annual operation tension |
3.7 kn |
|
Young modulus |
13.0 kn/mm2 |
|
|
cocoefficient of thermal expansion thermal expansivity
|
5.3 10-6/℃ |
|
compression strength |
1100 n/100mm Long term |
|
|
2200 n/100mm Short term | ||
Min.Bending Radius |
220 mm Opperation |
|
|
360 mm Installation | ||
Available temperature |
-15~+60℃ Installation |
|
|
-40~+70℃ Operation | ||
Fiber long more than |
0.5-0.7% |
|
Outer sheath type |
AT/PE Sheath |
|
Resistance to corrosion measures |
The fiber optic cable sheath used Nordic chemical resistance to electricity mark covering materials for 6081, has good corrosion resistance to electricity |
|
ice coating | ||
5.Test Standard for ADSS Cable Manufacturer ! ADSS cable single mode/multi mode aerial adss fiber optic cable price per meter
6.Application for ADSS Cable Manufacturer ! ADSS cable single mode/multi mode aerial adss fiber optic cable price per meter
1.Adopted to Outdoor distribution.
2.Suitable for aerial duct and buried method.
3.Long distance and local area network communication.
ADSS Cable Manufacturer ! ADSS cable single mode/multi mode aerial adss fiber optic cable price per meter
Packaging |
Wooden drum, 3000m to 5000m/drum or as you required |
Shipping methods. |
By sea or by air |
|
Sheath mark applied at 1-meter intervals |
a. Supplier: Changguang or as customer required |
b. Standard Code(Product Type, Fiber Type, Fiber Count) | |
c. Year of manufacture: xxx | |
d. Length marking in meters |
♦ We are the one of biggest manufacture of fiber optic cable in China and has more than 10 years manufacturing and selling experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and
own design are welcome. We will produce according to ur requirment and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
Company Scale |
Covering an area of 170,000 square meter,with product lines for fiber optic cable and cable accessories , total more than 150 professional workers |
Brands |
CHANGGUANG |
Production capabilities |
5000KM per week |
Product series |
Indoor and outdoor fiber optic cable, ADSS fiber cable and OPGW cable, fiber optic patch cord, pigtail and other cable accessories |
Quality control |
We have strict test on each production line |
Trade shows attended |
2 times canton fair and one oversea fair at least every year |
Main export markets |
Central/South America, Mid East/Africa, Eastern Europe, North America, Asia, Western Europe, Australasia ,etc |
1. Professional cable manufacturer.
2. About 10 years experiences in cable industry.
3. Prompt delivery time.
4.MOQ is 1kilometer
5.High quality with competitive price
6.Can be customized production of fiber optic cable
7. 30 years cable service life , even 60 years cable service life.
Payment terms |
T/T,L/C,ESCROW ,D/A,D/P, Western Union, MoneyGram, Paypal |
MOQ. |
1km/order |
Delivery Time |
Within 3 to 7 working days, but most depends on your quantity |
Loading Port |
Shanghai, China |
OEM |
Yes |
Place of Origin |
Shanghai, China |
Quote Request Information |
Fiber Count: 2 to 288 Fibers |
Fiber type: Single mode: G652D, G655,G657. Multimode: 50/125,62.5/125. OM3 | |
Order Quantity |
