Supply cable self supporting 4 core Aerial stranded adss cable
Product Information:
Product name |
Supply cable self supporting 4 core Aerial stranded adss cable
|
Introduction |

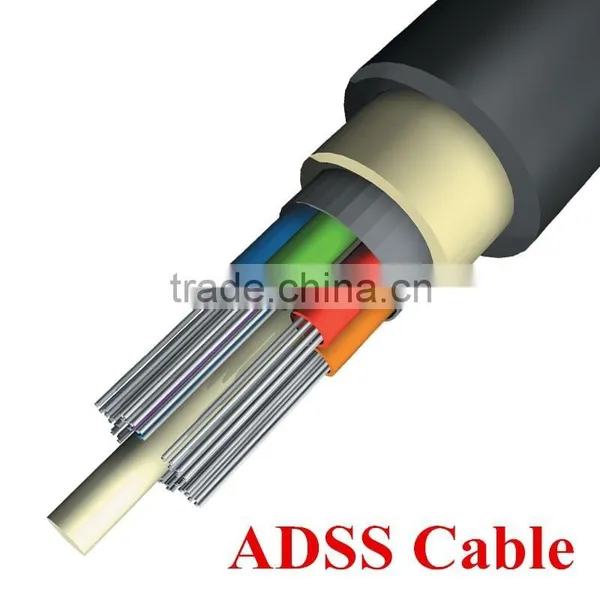

4 core Aerial Cable adss cable is loose tube stranded.Fibers,250um,are positioned into aloose tube made of high modulus plastics,The tubes are filled with a water-resistant filling compound.The tubes(and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a nonmetallic central strength member into a compact and circular cable core.After the cable core is filled with filling compound,it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member,the cable is completed with PE or AT (anti-tracking) outer sheath. |
|
Characteristics
|
Can be installed without shutting off the power |
Excellent AT performance.The maximum | |
Aramid yarn strength member ensure tensile strength | |
Crush resistance and flexibility | |
PSP enhancing moisture-proof | |
Small diameter,light weight and friendly installation | |
Long delivery length | |
Standards |
Comply with standard IEEE1222-2004 as well as IEC 60794-1 |
Supply cable self supporting 4 core Aerial stranded adss cable is idea for installation in distribution as well as transmission environment ,Even when live line installations are required.
Feature:
1. Loose tube design
Stable performance and compatibility with all common fiber types
2. Self-supporting
Instead of Aramid yarn or glass yarn,there is no support or messenger wire required.
3.Track-resistant &jacket available
For 10KV and 35KV power lines can use polyethylene(PE), for 110KN and 220KN power line, must by the resistance to corrosion(AT) outer sheath.
4.Sutable for Aerial self-support installation
5.Factory price with high quality.
6. ADSS Composition:
Application:
Note
1.Only a part of ADSS cables are listed in the table. ADSS cables with other spans can be inquired
2. Cables can be supplied with a range of single mode or multimode fibers
3. Specially designed Cable structure is available on request
-
1.Supplier: As cuctomer required
2.Standard Code(Product Type, Fiber Type, Fiber Count): Aerial/Duct/Buried SM/MM xx F
3.Year of manufacture: xxx
4.Length marking in meters
5.Cable ID / Drum No.
The accuracy of marking is 0.5%.
-
Occasional loss of printing and remarking is in accordance with
Bellcore GR 20 and supersedes earlier marking. Cables can be supplied with a range of single mode or multimode fibers and customized printing.
.
24 Hours online service.
Enquiry will be replied in 2 hours.
Factory price with good service .
Free sample for 1 meter cable.
Changguang communication Technology (Jiangsu)Co., Ltd
is aprofessional manufacturer of fiber optic cable in China for more than 10 years.
We can supply a complete range of outdoor optic fiber / aerial fiber optic cable
/ duct fiber optic cable/ directly buried fiber optical cable/ ADSS, OPGW and
OPPC for power system transmission.
Our Main market for self supporting 4 core Aerial stranded adss cable
Q1:Can I have a sample for testing?
A: Actually we think samples are not very important.You can buy from anywhere.But we think
our cargos will better then any others.
Samples will be 10% higher then the cargo if your sample request is more than 1 meter.
Q2:Can I add my logo on the cable?
A:Yes,OEM are available for us.
But you should send us the Trademark authorization letter.
Q3 :Do you have inspection procedures for optic cable?
A:100% self-inspection before packing
Q4:Can we mix the 20ft container?
A: Yes,if the items are meet our min order qty.
Q5:Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Here is our factory address: B02 west district Taiwanese Industrial Park,Suqian city ,JiangSu provice China.
Our factory is near from GuanYin Airport of Xuzhou.We can pick you up in the airport.
Hotel booking service is available .
