Product Details
Condition: | New | Type: | Paper Folding Machine | Computerized: | Yes |
Place of Origin: | Guangdong, China | Brand Name: | ACE | Model Number: | TNM-2L |
Voltage: | 380v 220v 440v etc. | Power(W): | 4.5kw depends | Dimension(L*W*H): | 6x2x2m depends |
Weight: | 3000kg depends | Certification: | Subject to Banquet Napkin Machine | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
2500 Piece Italy Design Embossing Printing Automatic High Speed Banquet Napkin Machine .
Type | TNM-2L |
Output type | 2 layers output, with totally 4lines 1 or 3 layers output available. |
Folding speed | 800-1200 sheet/min/layer x 2layers, depending on the paper quality and napkin size. The fastest in China now. |
Raw paper | 13-20g/m2 2-ply, 20-25g/m2 1-ply, wooden pulp paper or others. Other sizes please specify. |
Jumbo roll size | Φ1200x(200-460)x2mm (Depending on your napkin size,customized) |
Napkin unfolded size | 200mm x 200mm to 460mm x 460mm or Customized. |
Napkin folded size | 100mm x 100mm to 230mm x 230mm One size is fixed. One napkin size is adjustable, decided by the paper roll width. |
Folding type | Mechanical fold; 1/4 fold; Quarter fold. Vacuum folding and other folding types available. |
Folding unit | With slitting unit to slit the papers into 2 parts and then go to the upper folding part and the bottom folding part respectively. With folding fingers. |
Embossing unit | 1- Steel to paper(wool), Male to female. (Steel to steel is available.) 2- Embossing pattern can be any LOGO, brand name, flowers etc. 3- Embossing pattern can be customized by client or recommended by us 4- Controlled by screws, mechanical pressing type. Cylinder type is optional. |
Printing unit | 1- Flexo printing type. 2- Printing colors customized up to 8 colors. 3- Printing Logo is changeable. You just need to change the Printing Rubber only. 4- Annilox printing roll. 5- Printing roll is adjustable. |
Tension control | Speedless Tension control unit to fit the machine for paper of different quaity and different gsm. |
Calendar unit | Make the napkin softer. |
Counting | Automatic counting unit |
Emergent stop | Emergent stop unit to inspect any paper breaks, paper jams. |
Paper feeding | Synchronizer for feeding paper |
Power | 4.5Kw(3-phase AC380V 50Hz or customized) |
Machine size | 6x1.4x1.7 (m) |
Weight | 3000KG |
Videos and photos available. |
Below are photos of our 2500 Piece Italy Design Embossing Printing Automatic High Speed Banquet Napkin Machine for your reference.
Overall view of our 2500 Piece Italy Design Embossing Printing Automatic High Speed Banquet Napkin Machine.
Our 2500 Piece Italy Design Embossing Printing Automatic High Speed Banquet Napkin Machine working in customer's factory.
2layers output of our 2500 Piece Italy Design Embossing Printing Automatic High Speed Banquet Napkin Machine. Speed up to tatal 2500 sheet/min, the fastest in China now.
Output of our 2500 Piece Italy Design Embossing Printing Automatic High Speed Banquet Napkin Machine. The fold is perfect even though it is running at 2500 sheet/min.
Slitting unit of our 2500 Piece Italy Design Embossing Printing Automatic High Speed Banquet Napkin Machine.
Our 2500 Piece Italy Design Embossing Printing Automatic High Speed Banquet Napkin Machine is with steel to paper embossing unit. Steel to steel is optional. We have NEW Embossing Technology. Please contact us for more details.
Below are embossing patterns made by the NEW Embossing Technology of 2500 Piece Italy Design Embossing Printing Automatic High Speed Banquet Napkin Machine.
The embossing patterns made by the NEW Embossing Technology of 2500 Piece Italy Design Embossing Printing Automatic High Speed Banquet Napkin Machine looks very attractive.

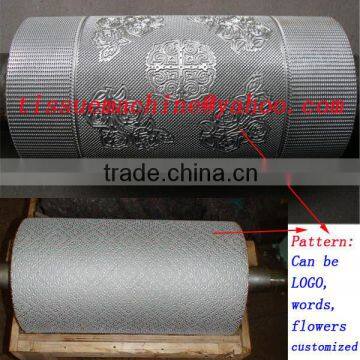

Embossing pattern of our 2500 Piece Italy Design Embossing Printing Automatic High Speed Banquet Napkin Machine. It can be any customized company LOGO, brand name, flowers etc.
Our 2500 Piece Italy Design Embossing Printing Automatic High Speed Banquet Napkin Machine can also be equipped with 2 embossing units.
Folding type of our 2500 Piece Italy Design Embossing Printing Automatic High Speed Banquet Napkin Machine can be any customized 1/4 fold, 1/6 fold, 1/8 fold or special fold. Please specify.
Below is 1/6 fold napkin made by our 2500 Piece Italy Design Embossing Printing Automatic High Speed Banquet Napkin Machine.
Finished napkins with full embossing pattern and color printing made by our 2500 Piece Italy Design Embossing Printing Automatic High Speed Banquet Napkin Machine.
Finished colored napkins with edge/side embossing pattern made by our 2500 Piece Italy Design Embossing Printing Automatic High Speed Banquet Napkin Machine.
Finished napkins with multi colors printing made by our 2500 Piece Italy Design Embossing Printing Automatic High Speed Banquet Napkin Machine.
