High Speed 4 Colors Printing Flexographic Printing Napkin Machine
Model | TNM-4C |
Output type | 1 layer, with 2 lines output. |
Folding speed | 400-700 piece/min, depending on the paper quality and napkin size. High speed model available, to be negotiated. |
Raw paper | 13-20g/m2 2-ply, 20-45g/m2 1-ply, wooden pulp paper or others. Other sizes please specify. |
Jumbo roll size | ≤ (200-460)mm x Φ1200mm (Depending on your napkin size,customized) |
Napkin unfolded size | 200mm x 200mm to 460mm x 460mm or Customized. |
Napkin folded size | 100mm x 100mm to 230mm x 230mm One size is fixed. One napkin size is adjustable, decided by the paper roll width. |
Folding type | Mechanical fold with band saw cutting; 1/4 fold; Vacuum folding and other folding types available. |
Folding unit | With or without folding fingers. |
Embossing unit | 1- Steel to paper(wool), Male to female. (Steel to steel is available.) 2- Embossing pattern can be any LOGO, brand name, flowers etc. 3- Embossing pattern can be customized by client or recommended by us 4- Controlled by screws, mechanical pressing type. Cylinder type is optional. 5- We have NEW Embossing Technology which can make the embossing pattern transparent, please contact us for more details. |
Printing unit | 1- Flexo printing type. 2- Printing colors customized up to 6 colors. 3- Printing Logo is changeable. You just need to change the Printing Rubber only. 4- Annilox printing roll. 5- Printing roll is adjustable. 6- Ink printing system to be negotiated. |
Tension control | Speedless Tension control unit to fit the machine for paper of different quaity and different gsm. With automatic web guiding system. With automatic web tension control system. |
Calendar unit | Make the napkin softer. |
Counting | Automatic counting unit |
Emergent stop | Emergent stop unit to inspect any paper breaks, paper jams. |
Paper feeding | Synchronizer for feeding paper |
Power | 5.5Kw depends on requiremetns (3-phase AC380V 50Hz or customized) |
Machine size | 7x2x3m |
Weight | 4000KG |
| Videos and photos available. | |
Below are photos of our High Speed 4 Colors Printing Flexographic Printing Napkin Machine for your reference.
Overview High Speed 4 Colors Printing Flexographic Printing Napkin Machine.
Folding type of our High Speed 4 Colors Printing Flexographic Printing Napkin Machine can be any customized 1/4 fold, 1/6 fold, 1/8 fold or special fold. Please specify.
Below is 1/6 fold napkin made by our High Speed 4 Colors Printing Flexographic Printing Napkin Machine.
Finished napkins with full embossing pattern and LOGO printing made by our High Speed 4 Colors Printing Flexographic Printing Napkin Machine.
Finished colored napkins with edge/side embossing pattern made by our High Speed 4 Colors Printing Flexographic Printing Napkin Machine .
Finished napkins with 6 colors Fully printing made by our High Speed 4 Colors Printing Flexographic Printing Napkin Machine.

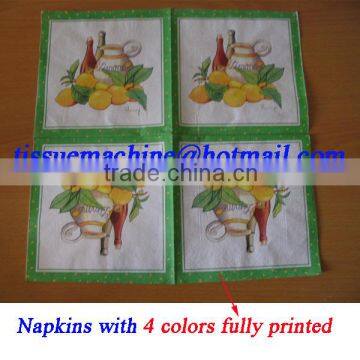

Finished napkins with 4 colors Fully printing made by our High Speed 4 Colors Printing Flexographic Printing Napkin Machine .
Below are embossing patterns made by the NEW Embossing Technology of High Speed 4 Colors Printing Flexographic Printing Napkin Machine .
The embossing patterns made by the NEW Embossing Technology of High Speed 4 Colors Printing Flexographic Printing Napkin Machine looks very attractive.
Embossing pattern of our High Speed 4 Colors Printing Flexographic Printing Napkin Machine. It can be any customized company LOGO, brand name, flowers etc.
