Laminating Printing High Speed Automatic Gluing V Fold Paper Towel Machine
- 30 Set / Sets per Month
- Shenzhen or customized
- T/T
-
Leizhan Disc sludge thickener for paper pulp making production line
-
2013HOT SELL Stainless steel structure Disc thickener for paper pulp making production line
-
Disc pulp filter machine of fluting and kraft paper production line
-
Leizhan waste paper recycle equipment ZNP series disc thickener/paper processing equipment/paper pulp machinery
-
disc thickener/paper pulp industrial use
-
disc thickener used for washing and thickening/paper making industry
Product Details
| Condition: | New | Type: | Paper Folding Machine | Computerized: | Yes |
| Place of Origin: | Guangdong, China | Brand Name: | ACE | Model Number: | VTM-200-10L |
| Voltage: | 380v 220v 440v or customized | Power(W): | 5.5kw depends | Dimension(L*W*H): | 7x3x2m depends |
| Weight: | 4000kg depends | Certification: | Subject to Gluing V Fold Paper Towel Machine | Warranty: | 1 year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Laminating Printing High Speed Automatic Gluing V Fold Paper Towel Machine .
Detailed description of Laminating Printing High Speed Automatic Gluing V Fold Paper Towel Machine .
Model | VTM-200-10L |
| Output | 10lines output. Other capacity like 3lines, 4lines, up to 15lines are available. |
| Folding speed | 800-1000 sheet/min/line x 10 lines, depending on paper quality and workers' operation. |
Use | Production of facial tissues andinterfold V fold hand towel. Two produced by One machine |
Raw material | 13-45gsm 2-ply or 1-ply virgin tissue or other tissues. |
Jumbo roll size | 2000mm width x 1100 mm diameter. Other sizes available. Width can be up to 2500mm. |
Unfolded size | 200±2mm x 200mm. Other size 190x190mm, 210x210mm, 230x250mm etc. available. Please specify. |
Folded size | 100±2mm x 200mm. One cutting size is adjustable |
Folding Type | V fold/Interfold/vacuum fold. Other folding like N/Z/W/M/C folds are available. |
Control | Main motor controlled by inverter Frequency speed control Emergency stop if paper breaks Vacuum pump for adsorption Air pressure:0.5Mpa(buyer supply) |
Folding unit | Thickened Floor standing wallboard structure(Full steel plate) so that the machine is running at high speed without vibration. Automatic counting unit |
Embossing unit | 2 set of steel-to-rubber embossing rollers(Pattern provided by client) Thickened Floor standing wallboard structure(Full steel plate) Controlled by NEW design level-type cylinder, not screws. Italy and Taiwan design. |
Edge embossing | Optional with NEW design. |
Laminating unit | Optional |
Jumbo roll stand | 2 back stand, controlled cushion cylinder Web tension control Adding perfume unit(Optional) |
Power | 7KW main motor, 22KW vacuum pump 3-phase AC380V 50HZ or 2-phase 220V 60Hz, or customized. |
Machine Size | 6000x2500x1900mm |
Weight | 6500KG |
Below are more details of our
Overall view of Laminating Printing High Speed Automatic Gluing V Fold Paper Towel Machine .
Our Laminating Printing High Speed Automatic Gluing V Fold Paper Towel Machine is with complete steel plate structure.
Our Laminating Printing High Speed Automatic Gluing V Fold Paper Towel Machine is with Lamination unit, steel to steel embossing unit and Taiwan Vacuum Pump.

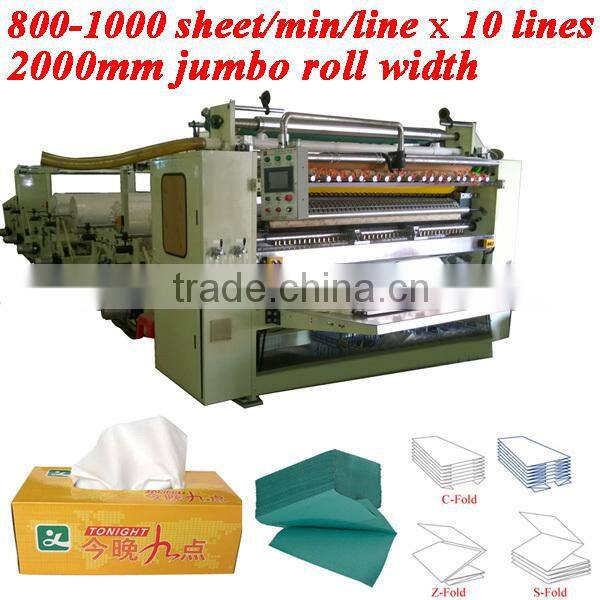

Perfect folding of our Laminating Printing High Speed Automatic Gluing V Fold Paper Towel Machine . The jumbo roll width is 2000mm for 10lines output. The folding is still perfect while running at stable speed of 1000 sheet/min/line.

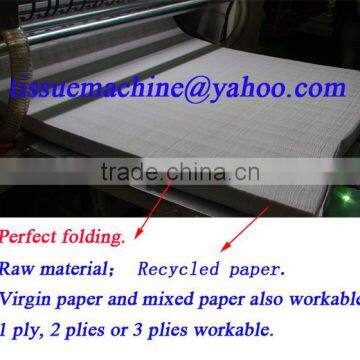

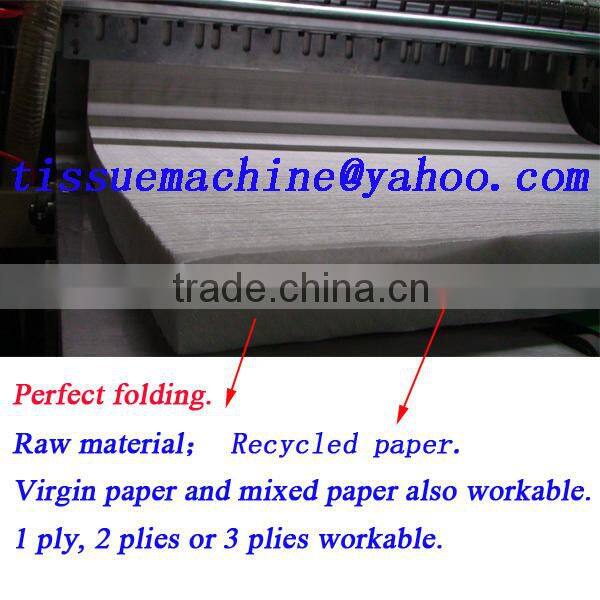

Our Laminating Printing High Speed Automatic Gluing V Fold Paper Towel Machine is able to work with 1,2 or 3 plies of virgin paper, mixed/blended pulp paper, recycled paper with different quality and 13-45gsm.
Perfect folding of our Laminating Printing High Speed Automatic Gluing V Fold Paper Towel Machine .
Steel to steel embossing unit of Laminating Printing High Speed Automatic Gluing V Fold Paper Towel Machine , the embossing pattern can be customized dots, LOGO, flowers, words etc.

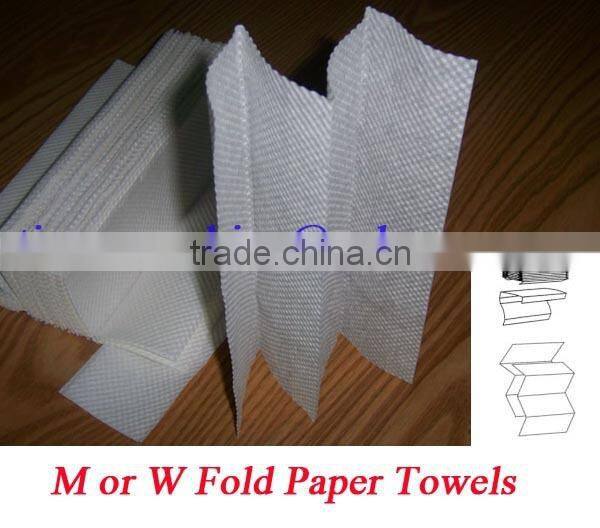

Folding types of our Laminating Printing High Speed Automatic Gluing V Fold Paper Towel Machine can be V fold, Interfold, C fold, N fold, M fold, W fold and so on. Other folding types also available.

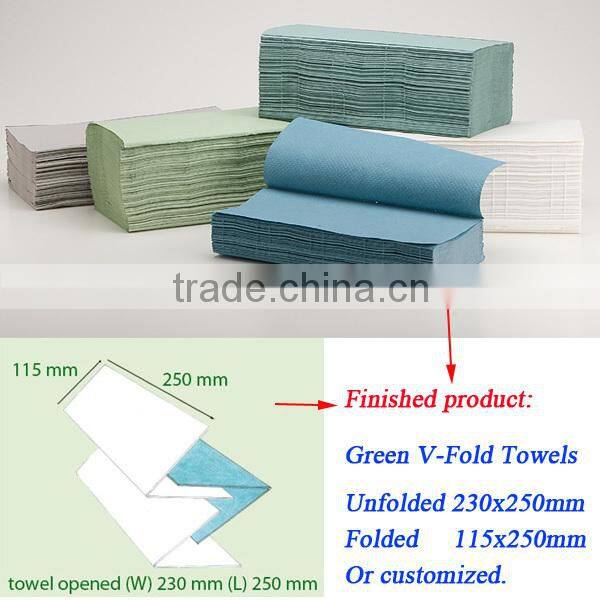

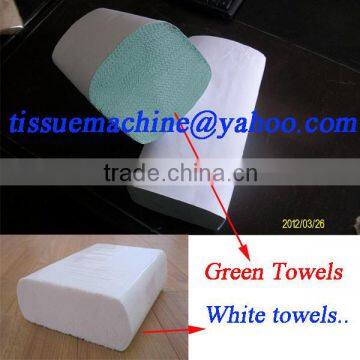

Green V Fold Towels made by our Laminating Printing High Speed Automatic Gluing V Fold Paper Towel Machine unfolded size 230x250mm and folded 115x250mm.

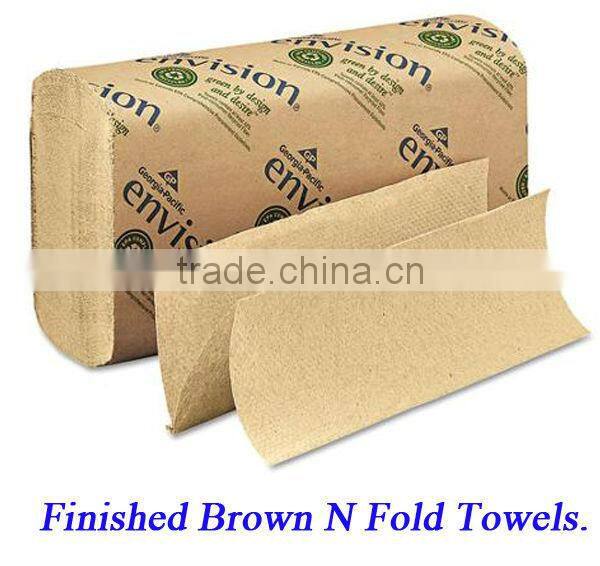

N Fold towels made by our Laminating Printing High Speed Automatic Gluing V Fold Paper Towel Machine .
M Fold towels made by our Laminating Printing High Speed Automatic Gluing V Fold Paper Towel Machine .

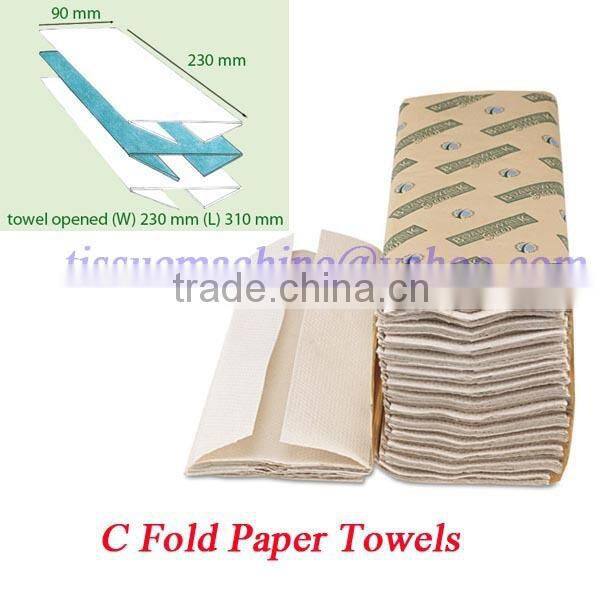

C Fold towels made by our Laminating Printing High Speed Automatic Gluing V Fold Paper Towel Machine . Unfolded size 230x310mm and folded size 90x230mm.

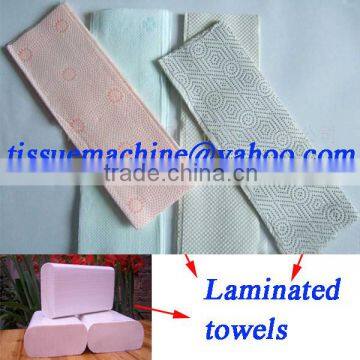

Laminated towels with colored glue made by our Laminating Printing High Speed Automatic Gluing V Fold Paper Towel Machine .
Boxed facial tissues made by our Gluing V Fold Paper Towel Machine .
Soft plastic packed facial tissues made by our Laminating Printing High Speed Automatic Gluing V Fold Paper Towel Machine .
