Printing High Speed Automatic V Towel Paper Tissue Folder Machine

Printing High Speed Automatic V Towel Paper Tissue Folder Machine photo-1
Printing High Speed Automatic V Towel Paper Tissue Folder Machine photo-2
Printing High Speed Automatic V Towel Paper Tissue Folder Machine photo-3
Printing High Speed Automatic V Towel Paper Tissue Folder Machine photo-4
Printing High Speed Automatic V Towel Paper Tissue Folder Machine photo-5
Printing High Speed Automatic V Towel Paper Tissue Folder Machine photo-6
US$ 10,000 - 80,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Laminating Machine
Computerized:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or customized
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Laminating Machine
Computerized Yes
Place of Origin Guangdong, China
Brand Name ACE
Model Number VTM-200-10L
Voltage 380v 220v 440v or customized
Power(W) 5.5kw depends
Dimension(L*W*H) 8x3x2m depends
Weight 4000kg depends
Certification Subject to V Towel Paper Tissue Folder Machine
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Printing High Speed Automatic V Towel Paper Tissue Folder Machine .

Detailed description of Printing High Speed Automatic V Towel Paper Tissue Folder Machine .



Model

VTM-200-10L

Output 10lines output.  Other capacity like 3lines, 4lines, up to 15lines are available.
Folding speed 800-1000 sheet/min/line x 10 lines, depending on paper quality and workers' operation.

Use

Production of facial tissues andinterfold V fold hand towel. Two produced by One machine

Raw material

13-45gsm 2-ply or 1-ply virgin tissue or other tissues.

Jumbo roll size

2000mm width x 1100 mm diameter. Other sizes available. Width can be up to 2500mm.

Unfolded size

200±2mm x 200mm. Other size 190x190mm, 210x210mm, 230x250mm etc. available. Please specify.

Folded size

100±2mm x 200mm. One cutting size is adjustable

Folding Type

V fold/Interfold/vacuum fold.

Other folding like N/Z/W/M/C folds are available.

Control

Main motor controlled by inverter

Frequency speed control

Emergency stop if paper breaks

Vacuum pump for adsorption

Air pressure:0.5Mpa(buyer supply)

Folding unit

Thickened Floor standing wallboard structure(Full steel plate) so that the machine is running at high speed without vibration.

Automatic counting unit

Embossing unit

2 set of steel-to-rubber embossing rollers(Pattern provided by client)

Thickened Floor standing wallboard structure(Full steel plate)

Controlled by NEW design level-type cylinder, not screws. Italy and Taiwan design.

Edge embossing

Optional with NEW design.

Laminating unit

Optional

Jumbo roll stand

2 back stand, controlled cushion cylinder

Web tension control

Adding perfume unit(Optional)

Power

7KW main motor, 22KW vacuum pump 3-phase AC380V 50HZ or 2-phase 220V 60Hz, or customized.

Machine Size

6000x2500x1900mm

Weight

6500KG



Below are more details of our

Overall view of  Printing High Speed Automatic  V Towel Paper Tissue Folder Machine .

Printing High Speed Automatic V Towel Paper Tissue Folder Machine

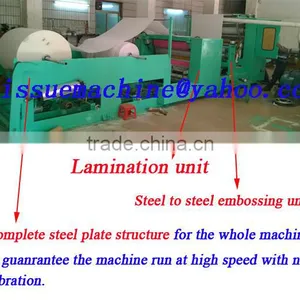

Our Printing High Speed Automatic V Towel Paper Tissue Folder Machine is with complete steel plate structure.

Printing High Speed Automatic V Towel Paper Tissue Folder Machine

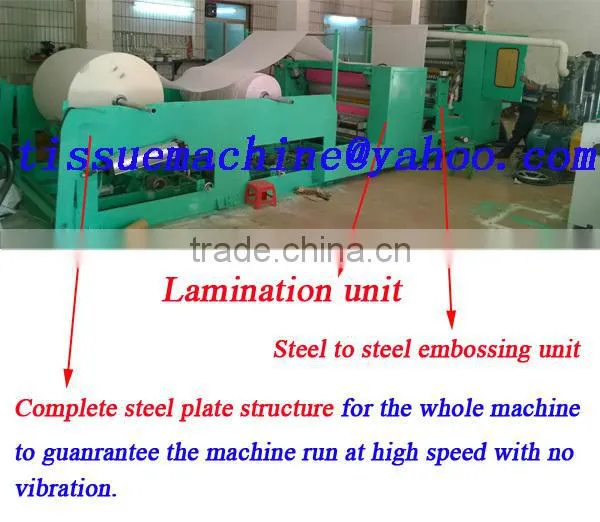

Our Printing High Speed Automatic V Towel Paper Tissue Folder Machine  is with Lamination unit, steel to steel embossing unit and Taiwan Vacuum Pump.

Printing High Speed Automatic V Towel Paper Tissue Folder Machine

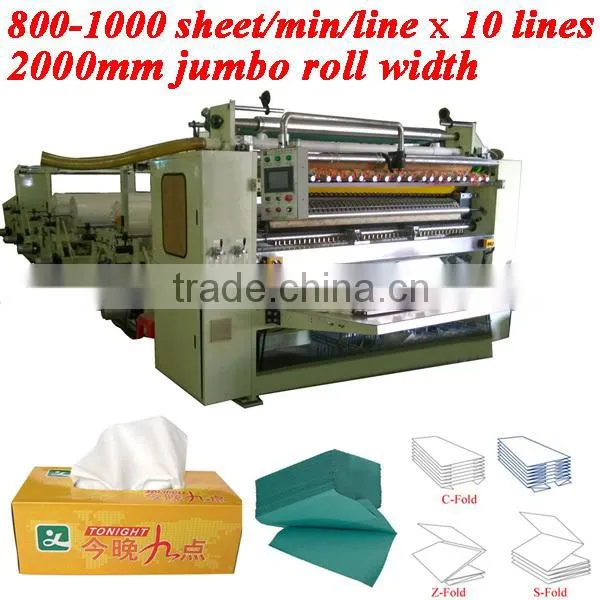

Perfect folding of our Printing High Speed Automatic V Towel Paper Tissue Folder Machine . The jumbo roll width is 2000mm for 10lines output. The folding is still perfect while running at stable speed of 1000 sheet/min/line.

Printing High Speed Automatic V Towel Paper Tissue Folder Machine

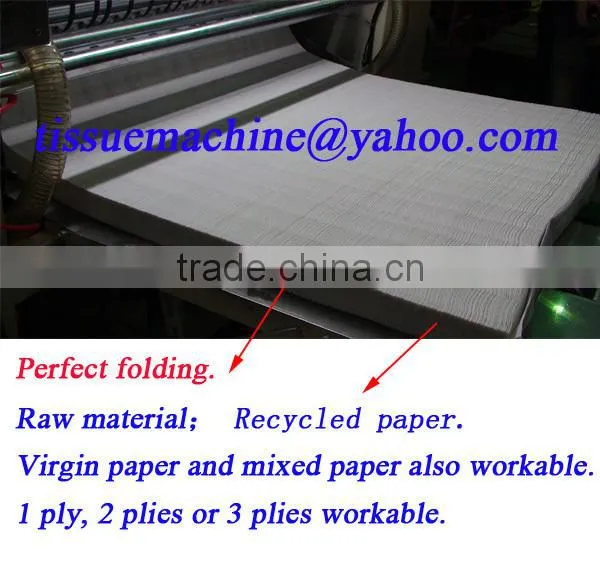

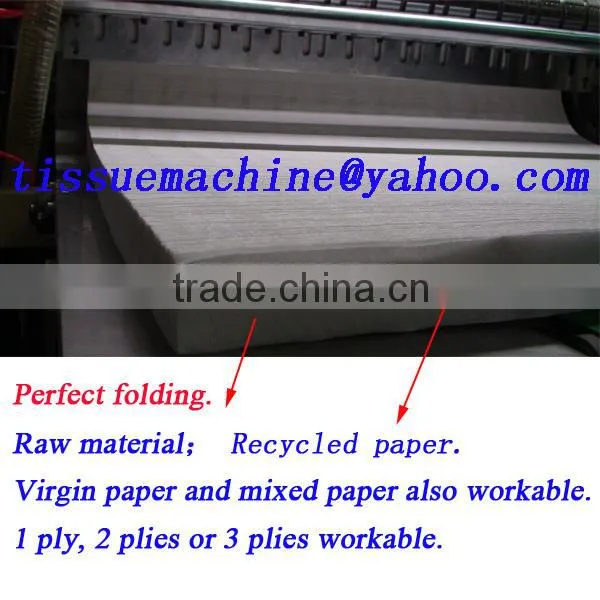

Our Printing High Speed Automatic V Towel Paper Tissue Folder Machine  is able to work with 1,2 or 3 plies of virgin paper, mixed/blended pulp paper, recycled paper with different quality and 13-45gsm.

Printing High Speed Automatic V Towel Paper Tissue Folder Machine





Perfect folding of our Printing High Speed Automatic V Towel Paper Tissue Folder Machine.

Printing High Speed Automatic V Towel Paper Tissue Folder Machine

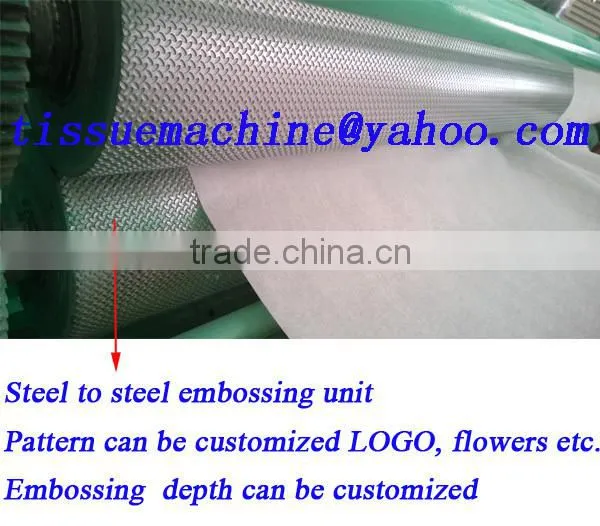

Steel to steel embossing unit of  Printing High Speed Automatic V Towel Paper Tissue Folder Machine, the embossing pattern can be customized dots, LOGO, flowers, words etc.

Printing High Speed Automatic V Towel Paper Tissue Folder Machine





Folding types of our Printing High Speed Automatic V Towel Paper Tissue Folder Machine can be V fold, Interfold, C fold, N fold, M fold, W fold and so on. Other folding types also available.

Printing High Speed Automatic V Towel Paper Tissue Folder Machine

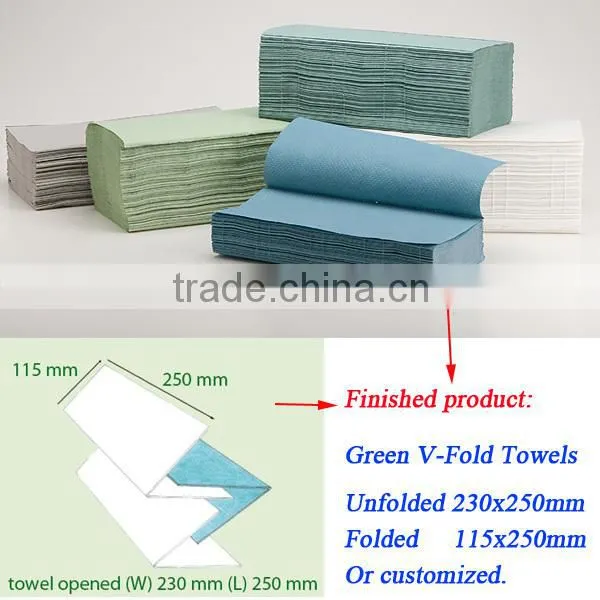

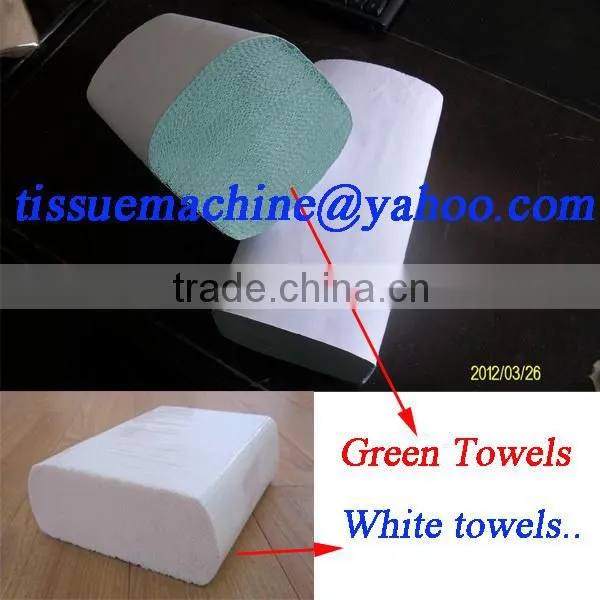

Green V Fold Towels made by our Printing High Speed Automatic V Towel Paper Tissue Folder Machine unfolded size 230x250mm and folded 115x250mm.

Printing High Speed Automatic V Towel Paper Tissue Folder Machine

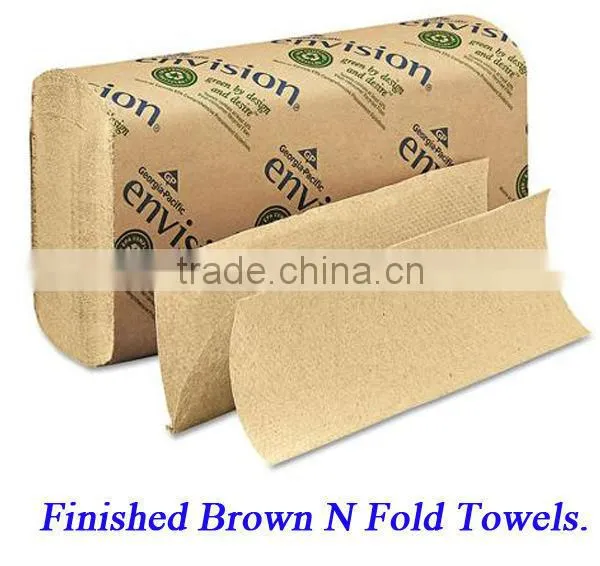

N Fold towels made by our Printing High Speed Automatic V Towel Paper Tissue Folder Machine.

Printing High Speed Automatic V Towel Paper Tissue Folder Machine

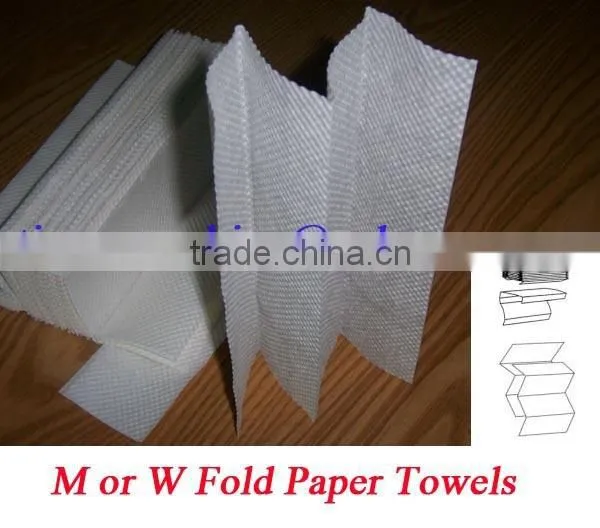

M Fold towels made by our Printing High Speed Automatic V Towel Paper Tissue Folder Machine.

Printing High Speed Automatic V Towel Paper Tissue Folder Machine

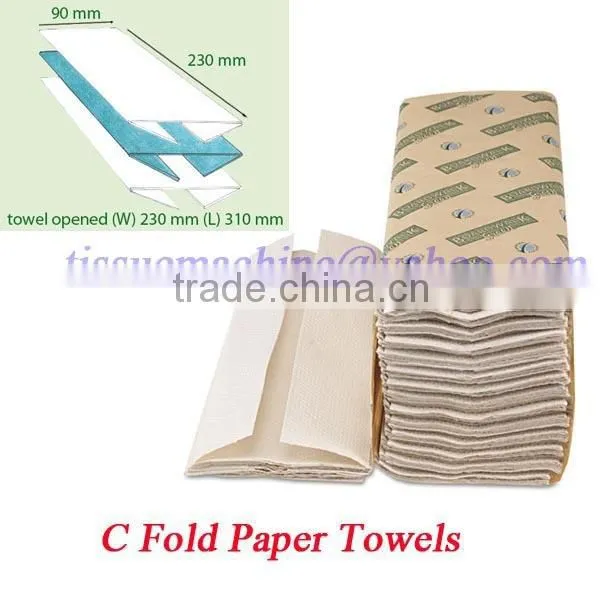

C Fold towels made by our Printing High Speed Automatic V Towel Paper Tissue Folder Machine. Unfolded size 230x310mm and folded size 90x230mm.

Printing High Speed Automatic V Towel Paper Tissue Folder Machine

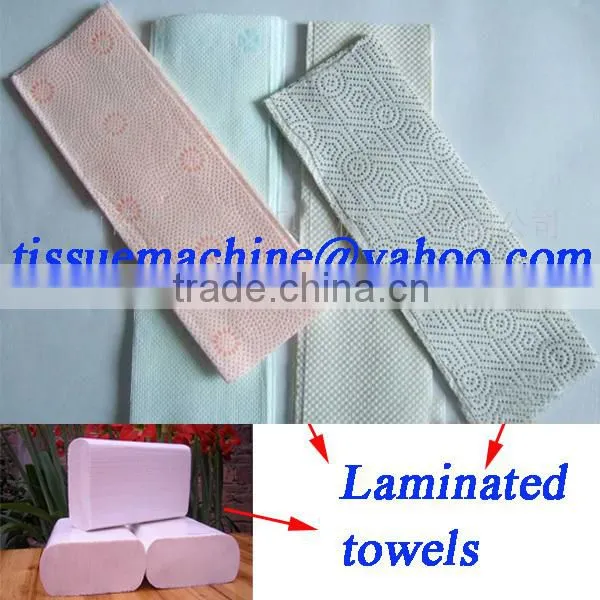

Laminated towels with colored glue made by our Printing High Speed Automatic  V Towel Paper Tissue Folder Machine .

 Printing High Speed Automatic V Towel Paper Tissue Folder Machine





Boxed facial tissues made by our V Towel Paper Tissue Folder Machine.

 Printing High Speed Automatic V Towel Paper Tissue Folder Machine





Soft plastic packed facial tissues made by our Printing High Speed Automatic V Towel Paper Tissue Folder Machine.

 Printing High Speed Automatic V Towel Paper Tissue Folder Machine
