Only One in China 2 Layers Packing High Speed Automatic 4 to 24 Roll per Pack Toilet Paper Multi Roll Packing Machine.
Specifications
Model |
STW-2L |
Packing format |
4-12 roll/row x 2 rows x 2 layers Core to core 2layers packing. 1 layer or 2layers compatible. |
Packing size: |
Roll diameter: 80-120mm Roll height: 900-120mm Other sizes to be customized. |
Packing speed |
8-12 pack/min, depending on different material, thickness and roll sizes. |
Packing film material: |
PE,CPP. etc. |
Control system |
PLC control Touch screen for date inputting Servo motor control Optical sensors for tracking |
Machine noise |
≤71dB |
Sealing pressure |
18Newton/mm |
Air pressure |
0.8Mpa (prepared by the Buyer) |
Installed power |
0.4 KW+0.8KW Single phase 220V 50HZ. |
Machine size |
5000x2000x1500mm (LxWxH) |
Machine weight |
1500kg |
Optional items | |
Conveyor |
To attach the packing machine to the log saw |
Packing machine |
Single rolls packing machine |

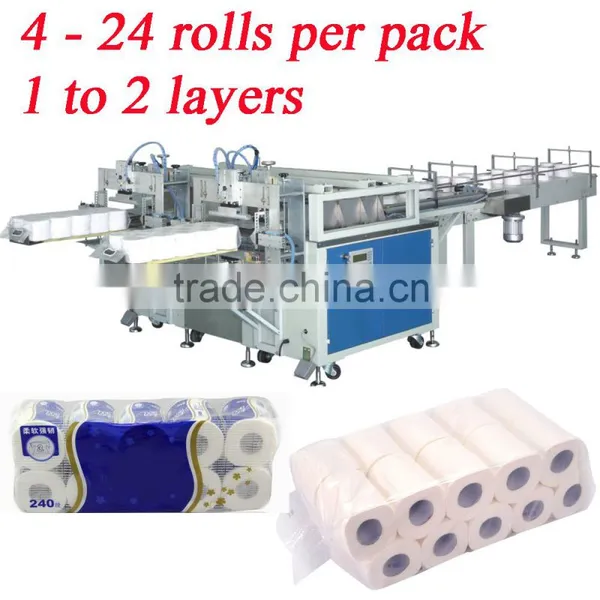

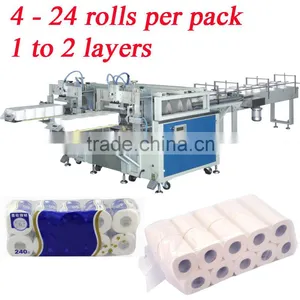

Below is picture of our Only One in China 2 Layers Packing High Speed Automatic 4 to 24 Roll per Pack Toilet Paper Multi Roll Packing Machine for your reference.

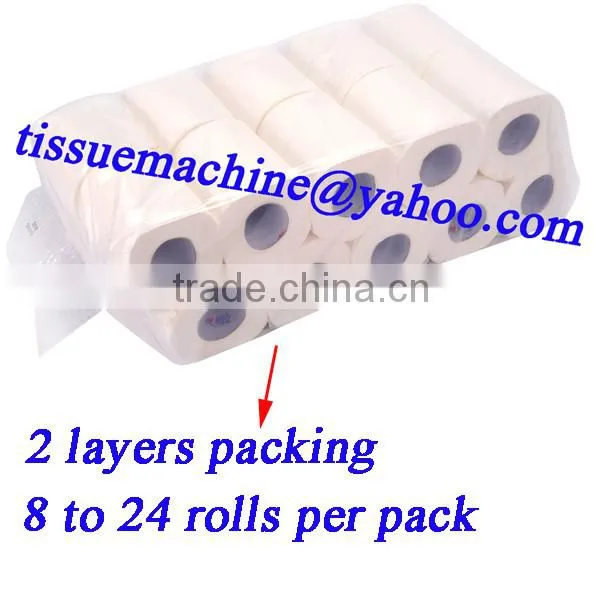

Double layers packing packed by our Only One in China 2 Layers Packing High Speed Automatic 4 to 24 Roll per Pack Toilet Paper Multi Roll Packing Machine. The only one in China now.

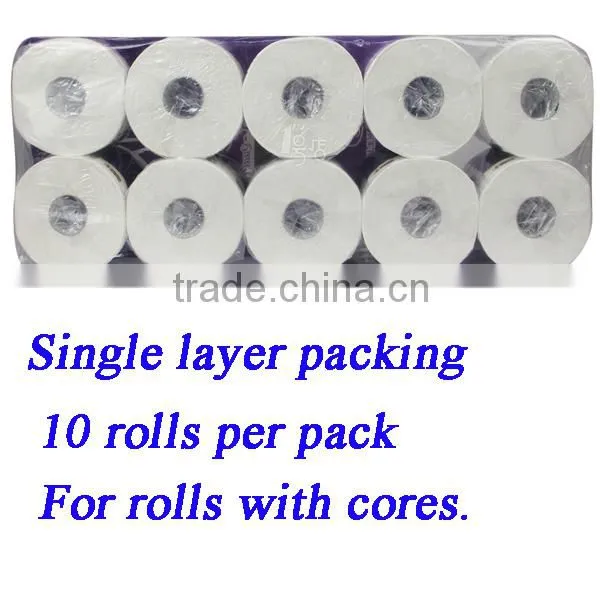

Single layers packing packed by our Only One in China 2 Layers Packing High Speed Automatic 4 to 24 Roll per Pack Toilet Paper Multi Roll Packing Machine for rolls with cores inside.

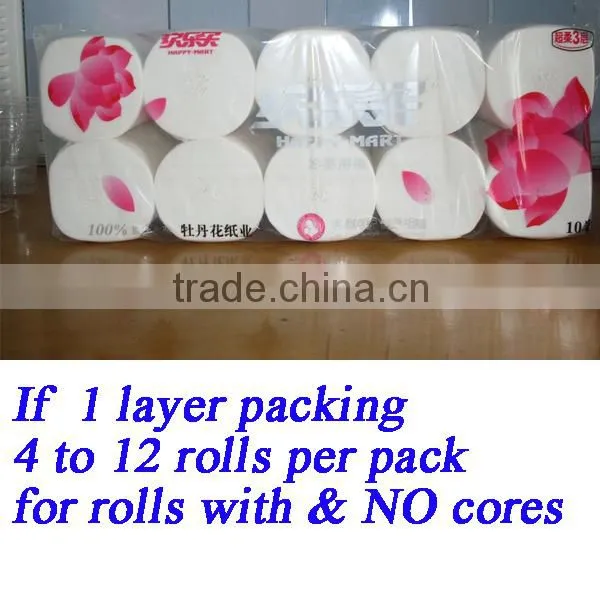

Single layers packing packed by our Only One in China 2 Layers Packing High Speed Automatic 4 to 24 Roll per Pack Toilet Paper Multi Roll Packing Machine for rolls with NO cores inside.
