High Speed Fully Automatic Facial Tissue Wrapping Machine

High Speed Fully Automatic Facial Tissue Wrapping Machine photo-1
US$ 10,000 - 40,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Facial Tissue
Processing Type:
Paper Folding Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or customized
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Facial Tissue
Processing Type Paper Folding Machine
Place of Origin Guangdong, China
Brand Name ACE
Model Number FSP
Voltage 3phase 220v 50hz or customized
Power(W) 2.4KW
Dimension(L*W*H) 2880*1650*1660mm
Weight 1500kg subject to Facial Tissue Wrapping Machine
Certification Other, Subject to Facial Tissue Wrapping Machine
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1 Facial Tissue Wrapping Machine
2 Fully Automatic
3 Wrapping speed 40-60 pack/min
4 PLC control
5 With conveyor belts

High Speed Fully Automatic  Facial Tissue Wrapping Machine

Specifications

Technical parameter of facial tissue soft packing machine.

1. Adopt packing way by wrapping,hemming and sealing with compact structure suitable for packing regularly square objects,such as non-highly tight tissue and paper box.

2. Adopt the system of stepless frequency conversion controlling,touching screen and PLC.

3.Adopt auto-putting conveyor, easy to be connected with automatic production line,saving much laboring cost.

4. It saves much packing material by the function of photocell checking,servo tracking,non-material feeding without tissue.

5. High automatization,high specialization,high efficiency and less trouble.

6. Various packing size may change quickly among different tissue sizes.



ModelFSP
Function

Can pack both facial tissue or napkins.

Pack facial tissue or napkins into plasic bag with plastic films.

Wrapping speed40-60 pack/min, depending on film types and thickness.

Packing size

Min-Max

Length: 150-200mm

Width: 100-120mm.

Height: 45-100mm

Other sizes customized.

Towel power6.83KW.
Heater power 3.35KW.
Main drive power3.48KW
Overall weight 3440kg.
Dimension (LxWxH) 3885x3200xl900mm
Noise ≤78dB
Packing Material CPP,PE,OPP/CPP,PT/PE, KOP/CPP.
Power supply 3phase 380V 50Hz or customized.
Contorol system

PLC

Touch screen

Emergency stop

JOG

Sensors.

Fully Automatic

Can be connected to the cutting machine to form a production line

Video and Photos available.

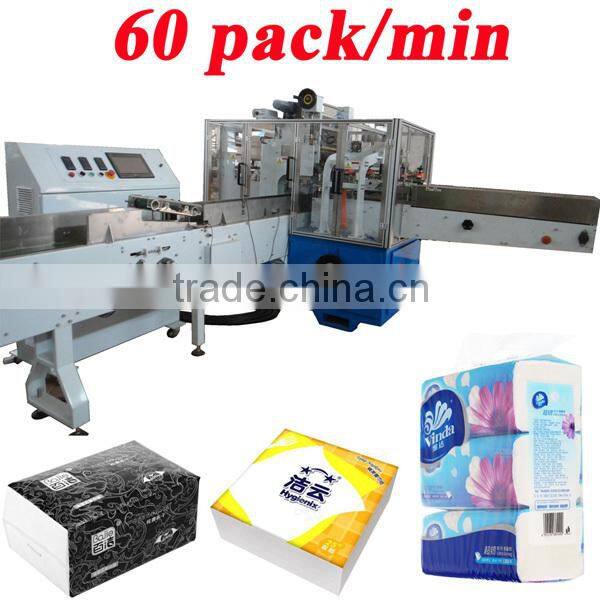

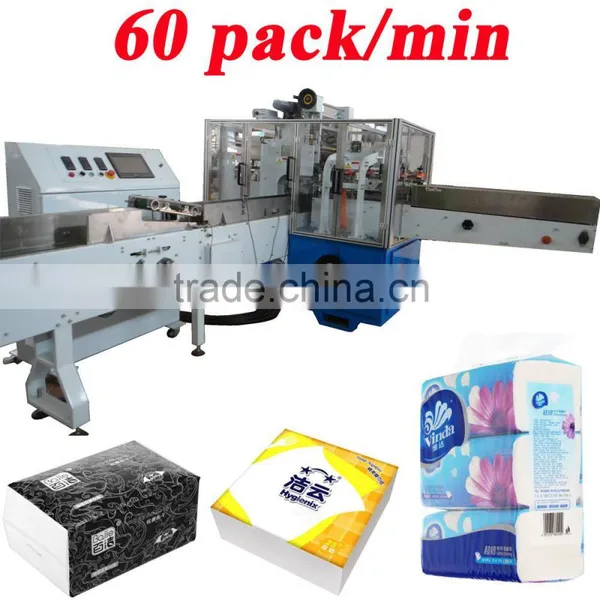

Overall view of our High Speed Fully Automatic  Facial Tissue Wrapping Machine

High Speed Fully Automatic Facial Tissue Wrapping Machine

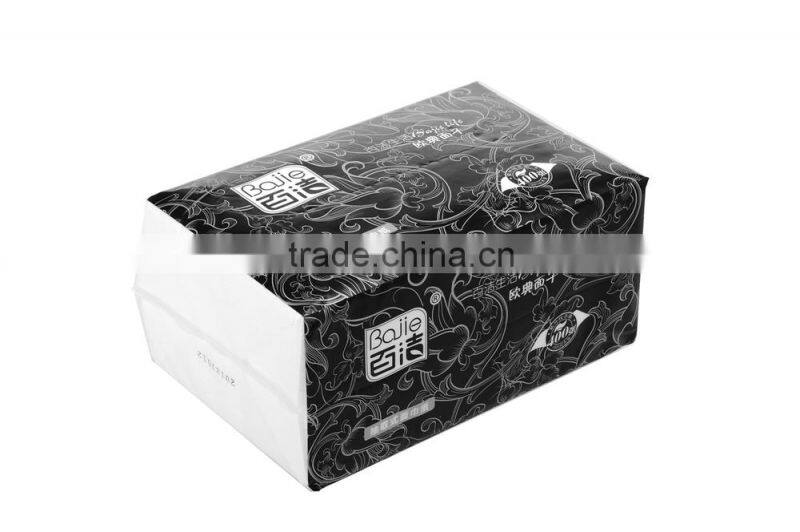

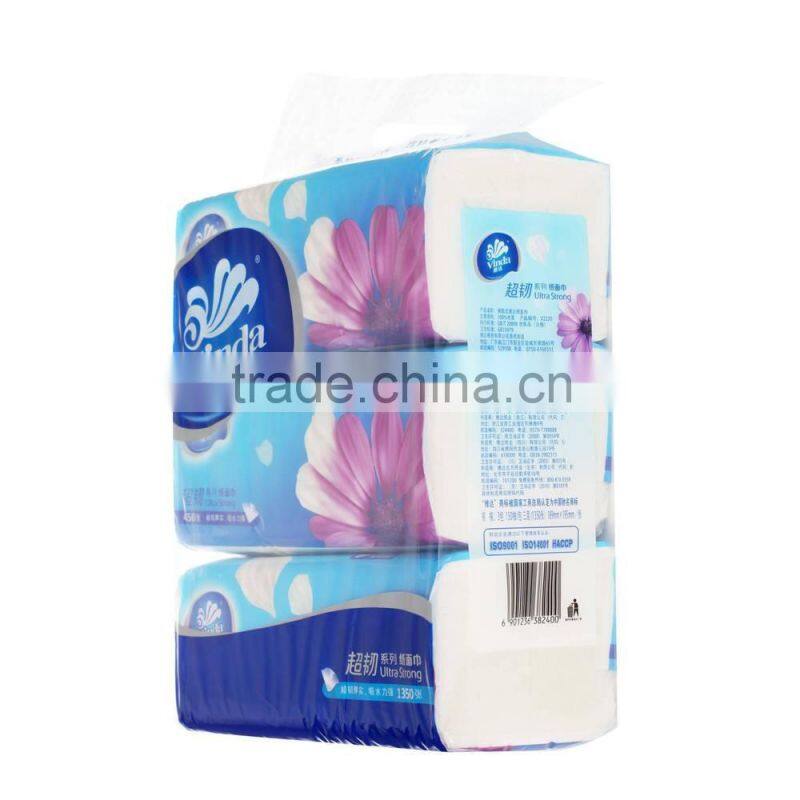

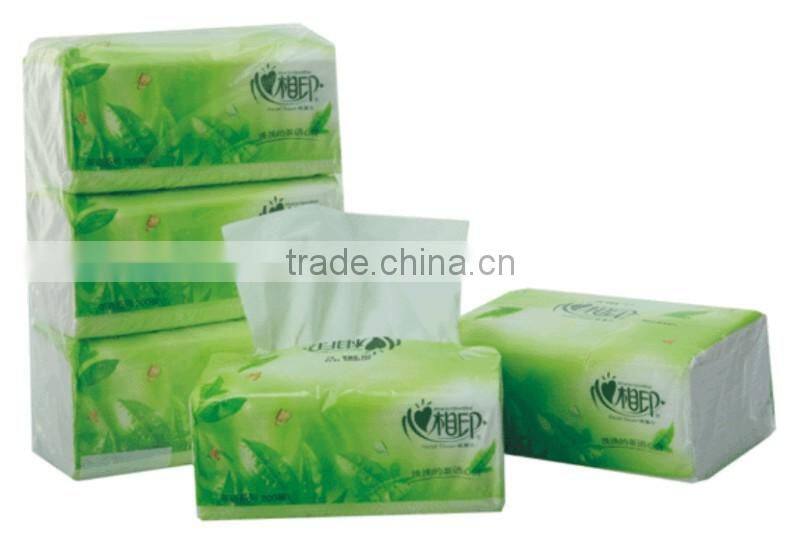

Finished plastic wrapped tissues packed by our High Speed Fully Automatic  Facial Tissue Wrapping Machine .

High Speed Fully Automatic Facial Tissue Wrapping MachineHigh Speed Fully Automatic Facial Tissue Wrapping MachineHigh Speed Fully Automatic Facial Tissue Wrapping Machine

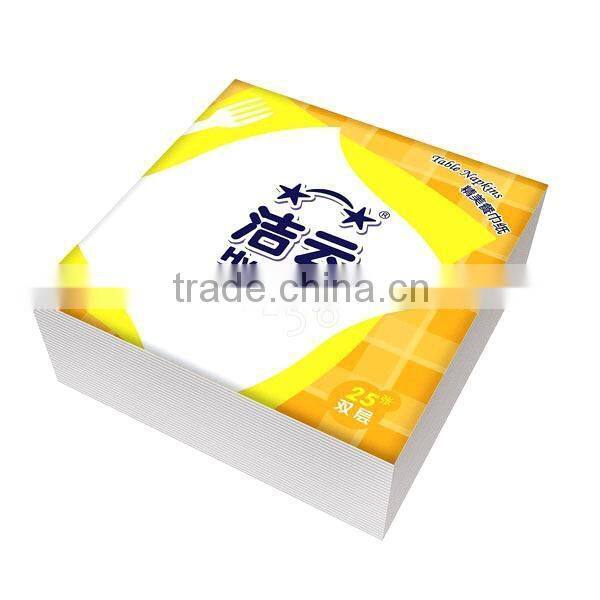

Napkins packed by our High Speed Fully Automatic  Facial Tissue Wrapping Machine .

High Speed Fully Automatic Facial Tissue Wrapping Machine











*            Facial Tissue Wrapping Machine Facial Tissue Wrapping Machine Facial Tissue Wrapping Machine Facial Tissue Wrapping Machine Facial Tissue Wrapping Machine Facial Tissue Wrapping Machine Facial Tissue Wrapping Machine Facial Tissue Wrapping Machine Facial Tissue Wrapping Machine Facial Tissue Wrapping Machine
