·Our Company:
ANGE is a professional manufacturer producing pp melt blown/spun filter making machine. We have independent research department to design and we excel at making new products according to clients’ special requirement.
Our clients are full of the world: India, Iran, Egypt, Taiwan, Ukraine, Turkey, Pakistan, and Thailand…
·Technical Support:
Mr. Xia- with 20 years’ experience in machine design and especially good in plastic extruding industry
Mr. Wen- with 15 years’ experience in filter making factory and can make all the filters you want
Mr. Chao- with 30 year's experience in designing PP string wound filter cartridge making machines
·PP Melt Blown Filter Cartridge Machine (URB-2):
1 PP melt blown filter cartridge (URB-2) production line includes:
2 Extruder; 2 Mold; 2 Atuo feeder; 2 Air Heater;
1 Roots Blower; 1 Auto Dryer Blower
1 Receiving Machine & Auto Center; 1Large Controller;
1 Cleaning Machine for cleaning the mold.
AS WELL AS
1 Grooving Machine: make grooves on surface of PP cartridge (10" length of PP cartridge)
1 Carving Machine: make dots or keyholes on surface of PP cartridge
1 Dryer Blower: make orange peel on surface of PP cartridge
Performance Parameters of the 1 Extruder Machine(URB-2)
| Name | PP melt blown filter cartridge |
| Mode | URB-2 |
| Total Installed Power | 50KW |
| Actual Running Power | 25~30KW |
| Output |
80~105pcs/hour 2000~2500pcs/day |
| Raw Material | 100% New Polypropylene |
| Internal Diameter | 28mm default (free to customize) |
| Outer Diameter | 38~120mm (free to customize) |
| Length | 5",10",20",30",...(free to customize) |
| Filter Precision | 1μm,3μm,5μm,8μm,10μm,13μm,15μm |
| Surface of Filter |
Smooth Surface (extra tool) Orange Peel Surface (extra tool) Micro-grooving Surface(extra tool) Groove Surface (groving machine) Dotted Surface (extra tool) Logo on Surface (carving machine) |
| Default Voltage |
3 Phase 380V or; 1 Phase 220V If you need other voltage, extra $500 shall be charged. |
| Machine Weight |
Before Packing: 3~3.3T After Packing: 4T |
· Newly Designed Feature:
We have installed 2 pressure instruments between the hear oven and molds in order to read the die pressure at any time rather than just like other manufactures by experience alone, which could easily adjust the air pressure and thus keep the melted PP fiber within a stable uniform density, smaller pore size(the smaller pore size is, the higher filter ratio it is)
| OUR NEW DESIGN | OTHER MANUFACTURERS |
|
|

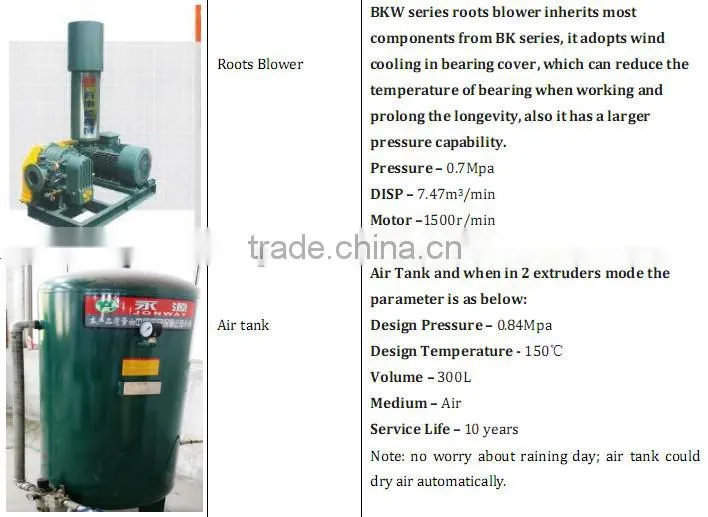

** 2015 new design machine we use roots blower instead of air compressor and air tank, and its feature is as below:
| Using Air Compressor and Air Tank | Using Roots Blower |
| Power is 15kw | Power is 11kw |
| Maintenance Fee is a little expensive | Maintenance Fee is more cheaper than compressor |
·After-sales Service:
We provide 1 year warranty;
and our engineers will be available to overseas.
**We will also provide unlimited long-term technical guide by email or skype.
For Training:
--We could train your delegates(1~3person) for 7~14 days until your colleagues have known how to operate by themselves. We are responsible for eating.
--One of our engineers will go to our factory to install and teach your operators 7~10 days. Your company shall prepare air tickets(go and back) &hotel &eating when he is working and total salary is $1000.
**We suggest customers study at our factory firstly, and then our engineer goes to your factory if you still demand.

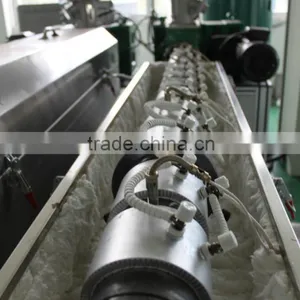

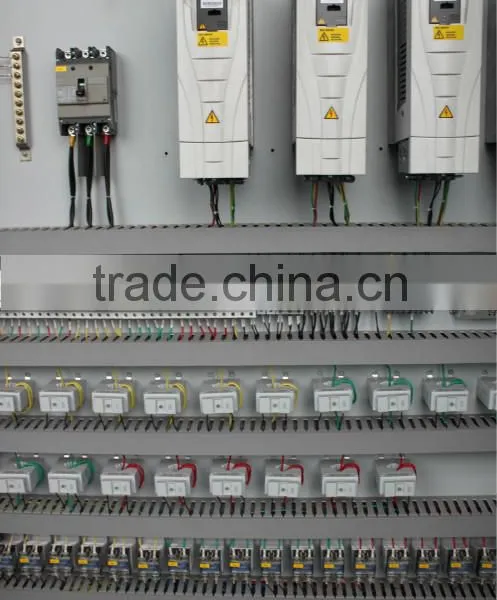

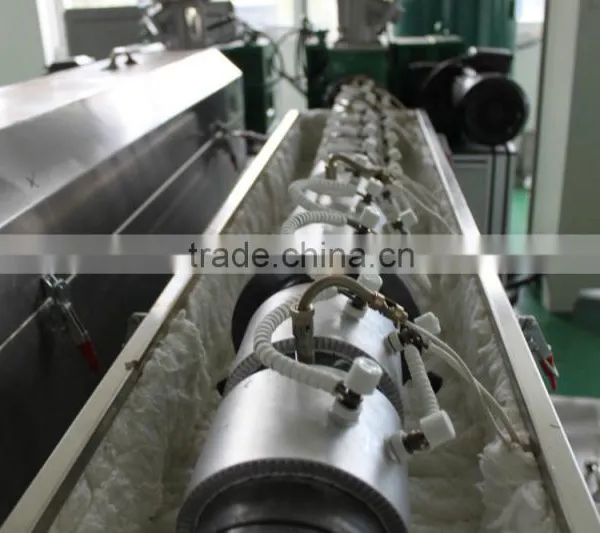

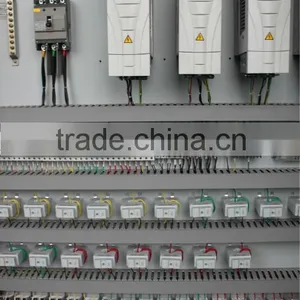

·Pictures of Machine:
