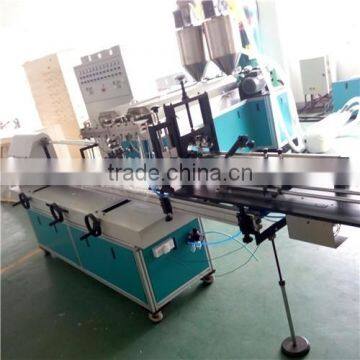

PP Spun filter cartridge making machine/PP Melt Blown Filter Cartridge Making Machine
Hot sale pp spun filter cratridge making machine product line from WUXI ANGE is a machine that used to produce pp spun filter cartridges, the principle of this machine is as below:
There are two kinds of Hot sale pp spun filter cratridge making machine product line from WUXI ANGE, one is adopting roots blower as the pressure –driven system; the other is using air compressor with air tank.
Auto Feeder feeds 100% new drawing class polypropylene into Extruder. Then pp material is melting by heater through Extruder. Roots Blower or Air Compressor and Air Tank blows the air into Air Heater and then the hot air will blow the liquid polypropylene materials through the Mold (with hundreds of small holes in the nozzle), and finally threaded materials arrive at the spindle of Winding Device. Winding Device rotates and forms filter cartridges. Then formed filter cartridges get off the spindle and reach to Auto Cutter. Auto Cutter cuts them according to the required length upon customers’ requirement.
Which type will we recommend? Actually, both type we can use on Hot sale pp spun filter cratridge making machine product line from WUXI ANGE.
Item |
Air Compressor |
Roots blower |
|
Principal |
Producing air pressure much more, less air flow(can make filter micro<=0.5μm) |
Producing air flow much more, less air pressure(can make filter micro>=0.5μm) |
|
|
Power
|
1E1M: 22KW 2E2M: 30KW 3E3M: 37KW |
1E1M: 8KW 2E2M: 11KW 3E3M: 15KW |
|
|
Operation
|
You need to take control of the parameter in air compressor and air tank at the same time |
You only need to adjust an adjuster on roots blower |
|
Temperature |
Air from air compressor has no temperature |
Air from roots blower can be 90 degrees |
|
Parameters of 2e2m pp spun filter cartridge making machine/pp melt blown filter making machine
Name |
Hot sale pp spun filter cratridge making machine product line from WUXI ANGE |
Mode |
URB-2E2M |
Total Installed Power |
55KW |
Actual Running Power |
35~40KW |
Output |
145~208pcs/hour 3500~5000pcs/day (refer to 10” filters) |
Raw Material |
100% New Polypropylene |
Internal Diameter |
28mm default (free to customize) |
Outer Diameter |
38~120mm (free to customize) |
Length |
5",10",20",30",...(free to customize) |
Filter Precision |
1μm,3μm,5μm,8μm,10μm,13μm,15μm |
Surface of Filter |
Smooth Surface (extra tool) Orange Peel Surface (extra tool) Micro-grooving Surface(extra tool) Groove Surface (groving machine) Dotted Surface (extra tool) Logo on Surface (carving machine) |
Default Voltage |
3 Phase 380V or; 1 Phase 220V If you need other voltage, extra $500 shall be charged. |
Machine Weight |
Around 4T |
PP melt blown filter cartridge (URB-2) production line includes/PP Spun filter cartridge making machine:
2 Extruder;
2 Mold;
2 Atuo feeder
2 Air Heater;
1 Roots Blower;
1 Auto Dryer Blower
1 Receiving Machine & Auto Center;
1Large Controller
1 Cleaning Machine for cleaning the mold.
1 Grooving Machine: make grooves on surface of PP cartridge (10" length of PP cartridge)
1 Carving Machine: make dots or keyholes on surface of PP cartridge
1 Dryer Blower: make orange peel on surface of PP cartridge
Production Capacity:
Mode |
Throughput |
Output |
2 Extruder |
30~35kgs/hour |
3800~4500pcs/24h |
PP Spun/Melt Blown Filter cartridge is widely used in water treatment -
1 Electronic, Power Industries:
2 Chemical & Petrochemical Industries
3 Medicine & Pharmaceutical:
4 Food Industry:
2016 New Techniques-PP Spun Filter Cartridge/Melt Blown Filter cartridge Without Inner Screw

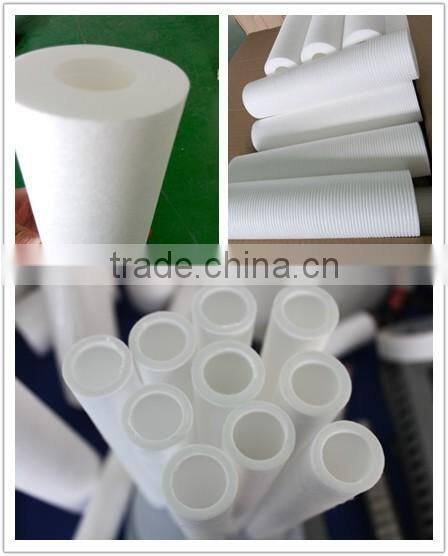

Different Kinds of surfaces
Certificates:

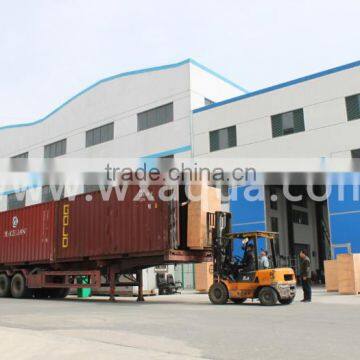

Packaging & Shipping
Every part is packed by plastic film, and all are packed in wooden case.
Shanghai Port is our usual choice, but other ports are available due to your requirements
Training: 2 solutions
1. Welcome to stay in our factory for a long-term training 7~14days until you master all the skills.
2. We provide an installing and training service to your factory in 7~14days until you master all the skills and you should take care of the plane ticket, hotel and living cost during this time.
After-sale Services
Two-years warranty is ensured. We provide new parts (except easy-wear parts) for free if your machine is broken without human factor.
