PP Melt Blown Filter Cartridge Machine (URB-1):
Our 2015 Newly Designed Feature:

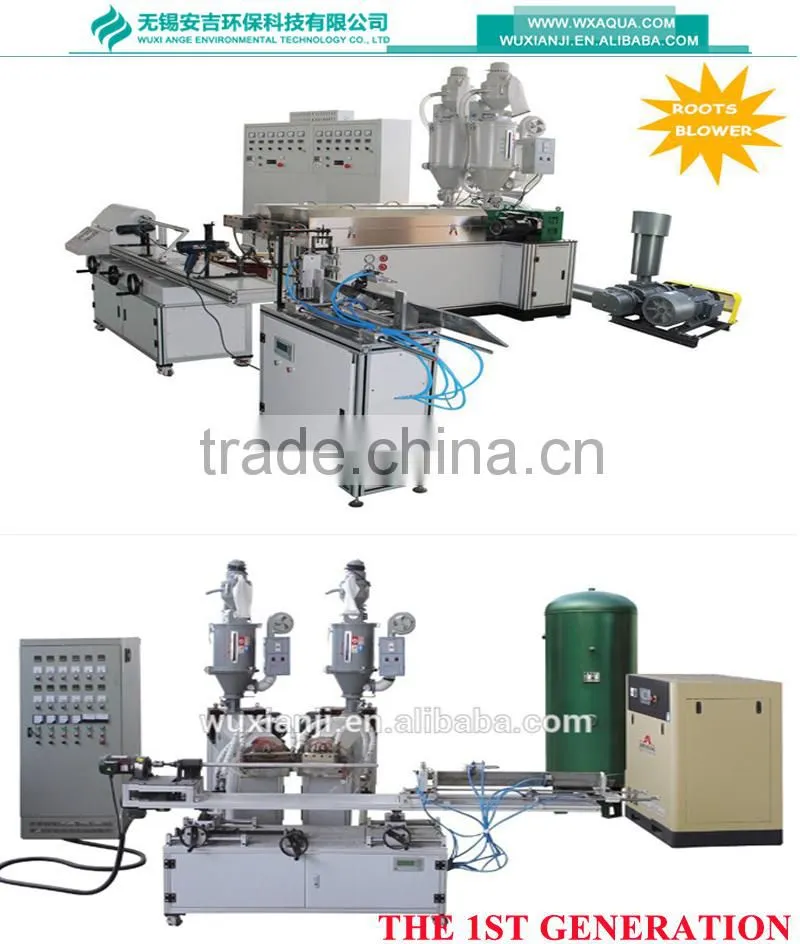

The 1ST generation 2015 new design
Using Air Compressor and Air Tank |
Using Roots Blower |
Power is 15kw |
Power is 11kw(power saving) |
Maintenance Fee is a little expensive |
Maintenance Fee is more cheaper than compressor |
Photo |
Name |
Detail Description |
|

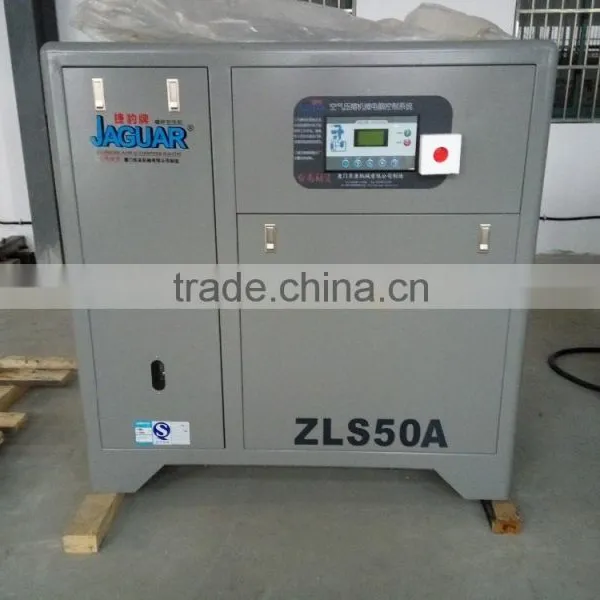

Air compressor
|
Design Pressure-0.8Mpa DISP-3.4m³/min Voltage-22KW/30HP/50HZ/380V
|
|

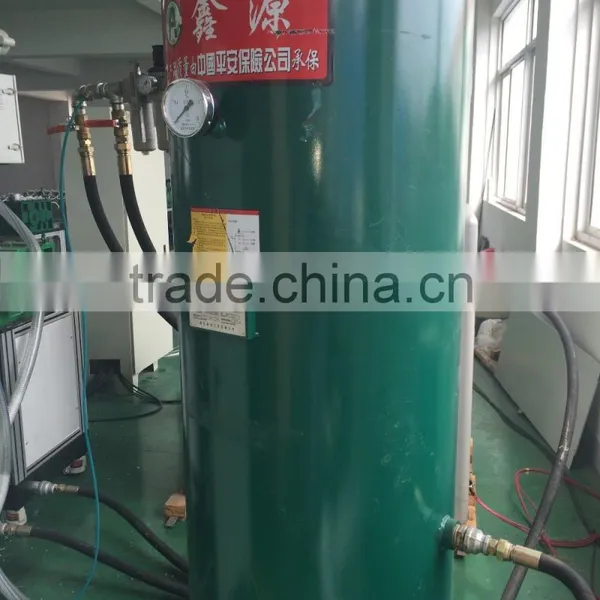

Air tank:
|
Capacity of 0.3M3 Save compressed air and shows Air pressure in meter. Compressor will re-start if air pressure less than 0.3Mpa. Provide pipes connected to the air heater. Don’t worry about raining day; air tank could dry air automatically. |
|
Roots Blower |
Design Pressure-0.7Mpa DISP-7.47m³/min Motor-1500r/min
|

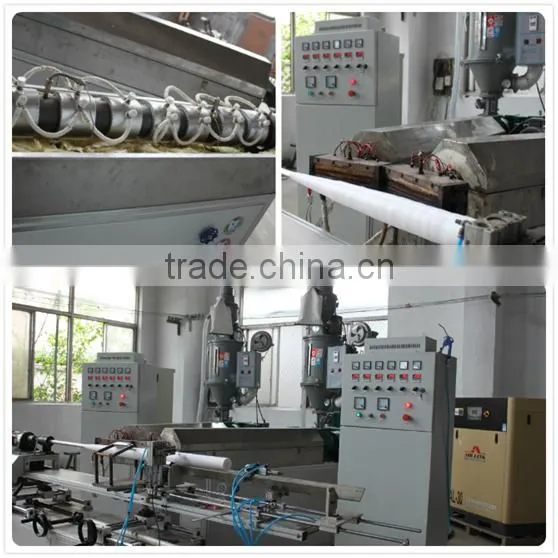

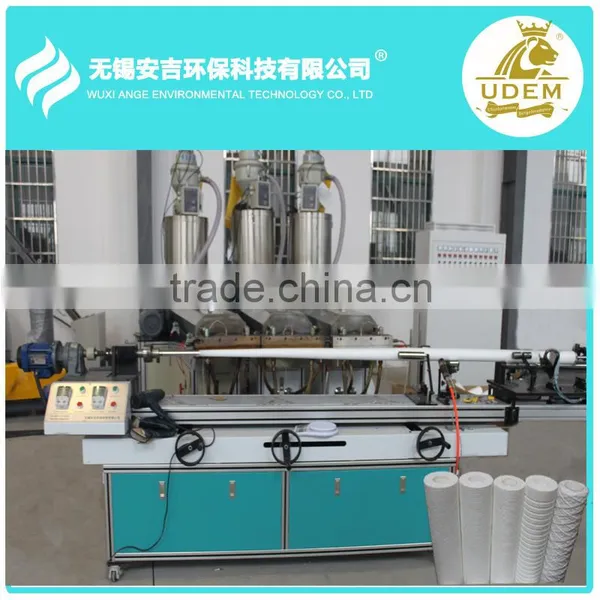

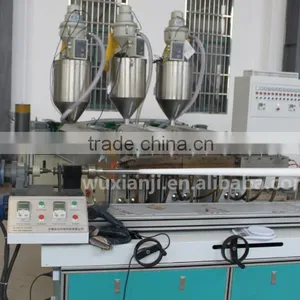

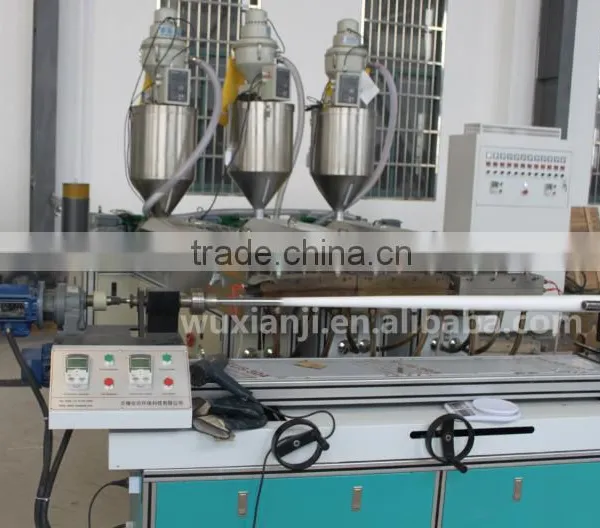

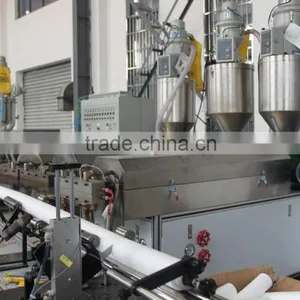

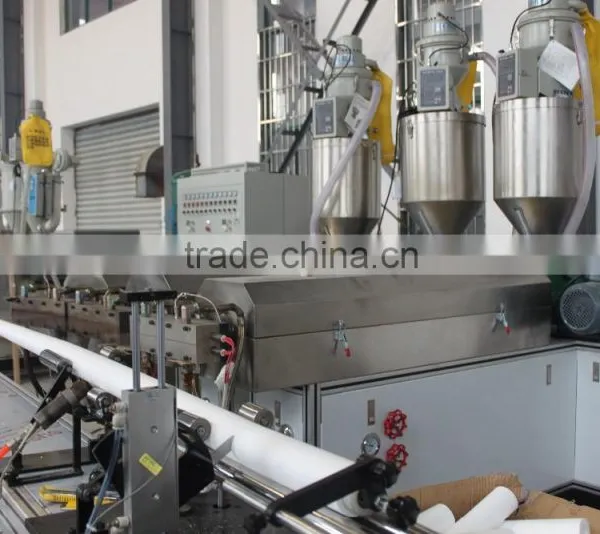

1 PP melt blown filter cartridge (URB-1) production line includes:
1 Extruder;1 Mold;1 Atuo feeder
1 Air Heater;1 Roots Blower;1 Auto Dryer Blower
1 Receiving Machine & Auto Center;1Large Controller
1 Cleaning Machine for cleaning the mold.
1 Grooving Machine: make grooves on surface of PP cartridge (10" length of PP cartridge)
1 Carving Machine: make dots or keyholes on surface of PP cartridge
1 Dryer Blower: make orange peel on surface of PP cartridge
Production Capacity:
Mode |
Throughput |
Output |
1 Extruder |
15~18kgs/hour |
1800~2400pcs/24hrs |
Note:
1. Capacity calculated based on the basis of PP filter 10'',ID= 28mm,OD=55~57mm
2. Production capacity is related to the temperature of keep workshop temperature between 10~25 degree, production capacity will be stable
Our Products

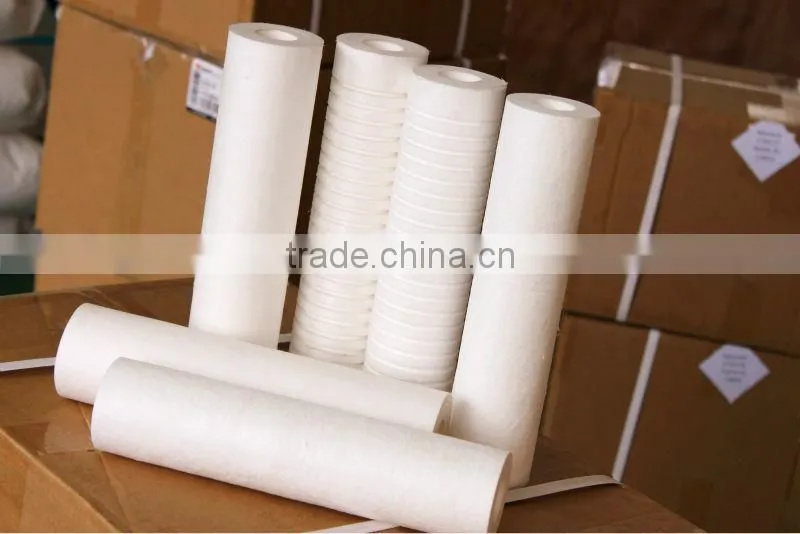

Raw Material |
100% New Polypropylene-melt flow index(MFI) 230℃/2.16KG |
|
Internal Diameter |
28mm default (free to customize) |
|
Outer Diameter |
40~120mm (free to customize) |
|
Length |
5",10",20",30" ~85’’ largest at present (but free to customize) |
|
Filter Precision |
1μm, 3μm, 5μm, 8μm, 10μm, 13μm, 15μm (refer to NSF certification site or use “Filter Rating Testing Bench” to verify) |
|

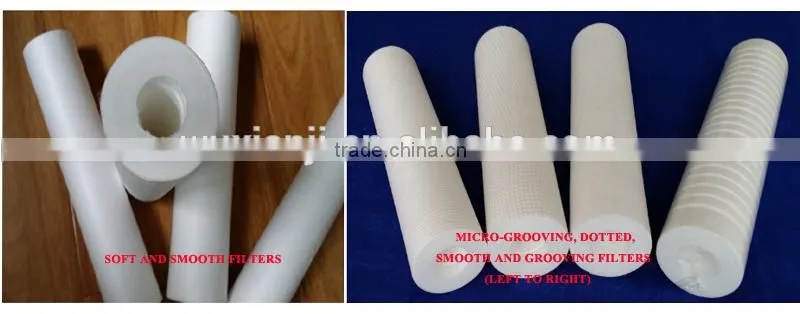

Surface of Filter |
Smooth surface(needs extra tool) Orange peel surface(needs extra tool) Micro-grooving surface(needs extra tool) Groove surface(needs grooving machine) Dotted surface(needs extra tool) Logo on surface (needs carving machine) |
|
Default voltage |
3 phase 380V (50HZ/60HZ) or 1 phase 220V (50HZ/60HZ) If you need other voltage. Also extra $500 should be charged for this change. |
|
Occupied area |
45M2 Is enough, 100 M2 is better |
|
Decibel |
87~105 db(in Europe some customers will make special "worm" room for these lines to avoid noise) |
|
Machine Weight |
Before Packing: ~3.3T After Packing: ~4T |
|
Note: The machine can continue work 10~15 full days but sometimes will have hole blocking issues. You need to remove the molds and clean it via clean oven when pressure inside of mold is large by reading the pressure meter directly on the controller. | ||
Payment |
FOB (Shanghai) - T/T, 40% deposit and balance amount after you received copy of original BL or CIF (Shanghai) |
|
Delivery time |
25~30 working days upon date of receipting deposit |
|
Our Service
One Year Limited Warranty
We will provide one-year service for free. We provide the new main parts for free if yours is broken without human factor.
Suggestion 1: We could train your delegates (1~3 person) for 7~14 days until your colleagues have known how to work by themselves. We are responsible for eating and living.
Suggestion 2: One of our engineers will go to your factory to install and teach your operators 7 days~10days. Your company prepare air tickets (go and back) & hotel & eating when he is working& salary (total salary is $1000)
We suggest customers study at our factory firstly, and then our engineer goes to your factory if you still need. It will be better.
Our Company
ANGE is a professional manufacturer that producing pp melt blown/spun filter making machine. And we have independent research department to design and make new products according to clients’ special requirement.
And we have 2 main engineers, Mr. Xia has 20 years’ experience in machine design and especially in plastic extruding industry; Mr. Wen who has 15 years’ experience in filter making factory and can make all the filters you want.
Our clients are full of the world: India, Iran, Egypt, Taiwan, Ukraine, Turkey, Pakistan, and Thailand…
