2016 PP Spun Filter Cartridge Making Machine With Air Compressor

2016 PP Spun Filter Cartridge Making Machine With Air Compressor thumbnail-1
2016 PP Spun Filter Cartridge Making Machine With Air Compressor thumbnail-2
2016 PP Spun Filter Cartridge Making Machine With Air Compressor thumbnail-3
2016 PP Spun Filter Cartridge Making Machine With Air Compressor thumbnail-4
2016 PP Spun Filter Cartridge Making Machine With Air Compressor thumbnail-5
2016 PP Spun Filter Cartridge Making Machine With Air Compressor thumbnail-6
2016 PP Spun Filter Cartridge Making Machine With Air Compressor photo-1
2016 PP Spun Filter Cartridge Making Machine With Air Compressor photo-2
2016 PP Spun Filter Cartridge Making Machine With Air Compressor photo-3
2016 PP Spun Filter Cartridge Making Machine With Air Compressor photo-4
2016 PP Spun Filter Cartridge Making Machine With Air Compressor photo-5
2016 PP Spun Filter Cartridge Making Machine With Air Compressor photo-6
US$ 30,000 - 55,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
ANGE
Model Number:
URB-2
Contact Supplier Request Quote Chat Now
Wuxi Ange Environmental Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name ANGE
Model Number URB-2

PP Melt Blown Filter Cartridge Machine (URB-2):

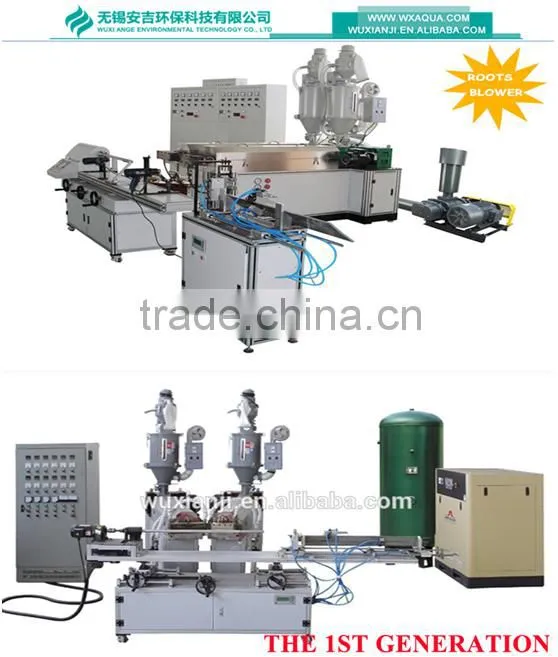

Our 2015 Newly Designed Feature:

The 1ST generation              2015 new design

Using Air Compressor and Air Tank

Using Roots Blower

Power is 15kw

Power is 11kw(power saving)

Maintenance Fee is a little expensive

Maintenance Fee is more cheaper than compressor




Name

Detail Description

Air compressor



Design Pressure-0.8Mpa

DISP-3.4m³/min

Voltage-22KW/30HP/50HZ/380V



Air tank:



Capacity of 0.3M3

Save compressed air and shows Air pressure in meter.

Compressor will re-start if air pressure less than

0.3Mpa.

Provide pipes connected to the air heater.

Don’t worry about raining day; air tank could dry air automatically.

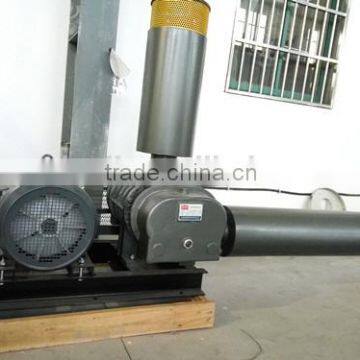

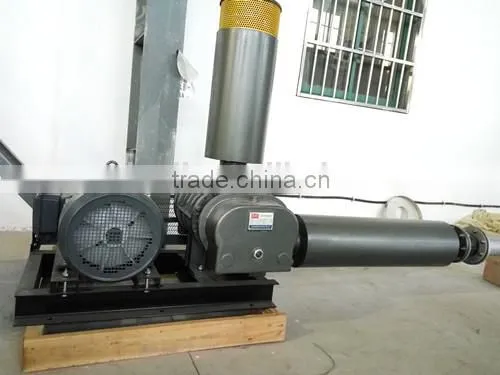

Roots Blower

Design Pressure-0.7Mpa

DISP-7.47m³/min

Motor-1500r/min

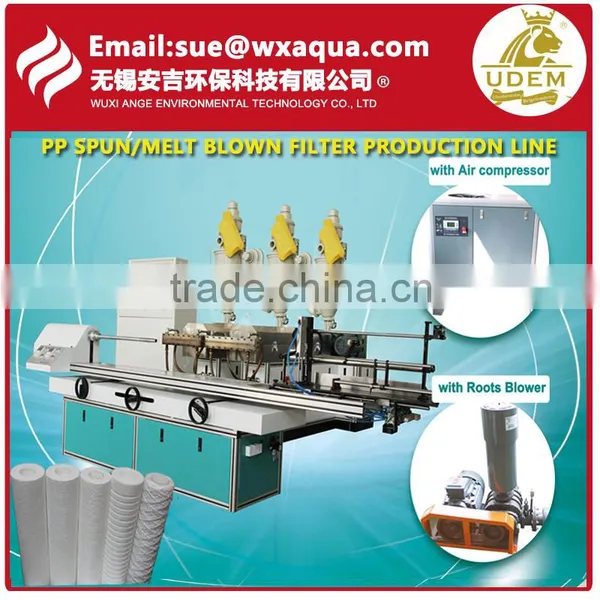

1 PP melt blown filter cartridge (URB-2) production line includes:

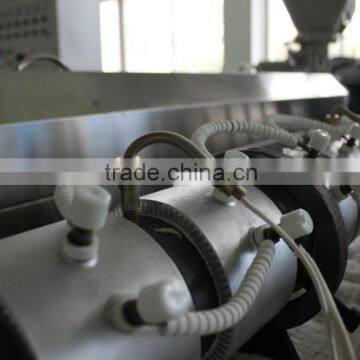

2 Extruder;2 Mold;2 Atuo feeder



2 Air Heater;1 Roots Blower;1 Auto Dryer Blower

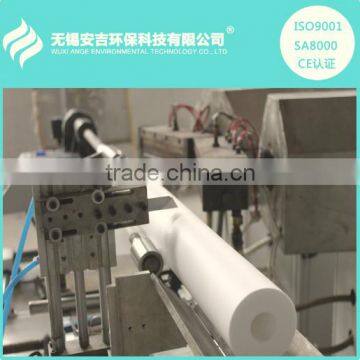

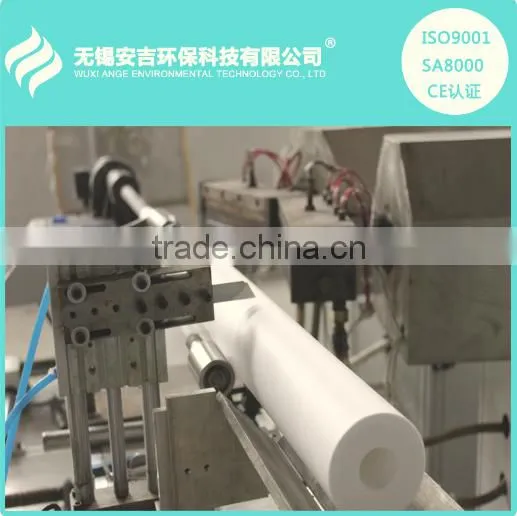

1 Receiving Machine & Auto Center;1Large Controller



1 Cleaning Machine for cleaning the mold.



1 Grooving Machine: make grooves on surface of PP cartridge (10" length of PP cartridge)



1 Carving    Machine: make dots or keyholes on surface of PP cartridge



1 Dryer       Blower:    make orange peel on surface of PP cartridge





Production Capacity:

Mode

Throughput

Output

2 Extruders

30~36kgs/hour

3500~4800pcs/24hrs

Note:

  1. Capacity calculated based on the basis of  PP filter 10'',ID= 28mm,OD=55~57mm
  2. Production capacity is related to the temperature of keep workshop temperature between 10~25 degree, production capacity will be stable

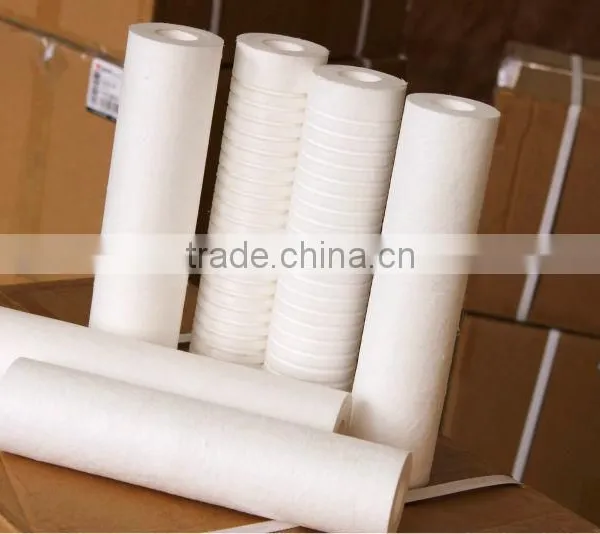

Our Products











Name

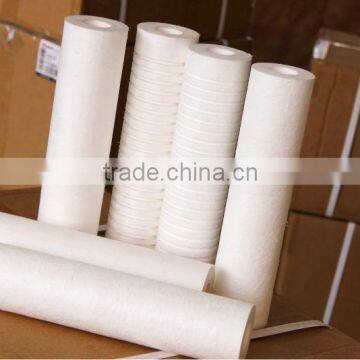

PP melt blown filter cartridge

Mode

URB-2

Total   Installed Power

50KW

Actual Running Power

25~30KW

Output

80~105pcs/hour

2000~2500pcs/day

Raw Material

100% New Polypropylene

Internal Diameter

28mm default     (free to customize)

Outer    Diameter

38~120mm        (free to customize)

Length

5",10",20",30",...(free to customize)

Filter Precision

1μm,3μm,5μm,8μm,10μm,13μm,15μm

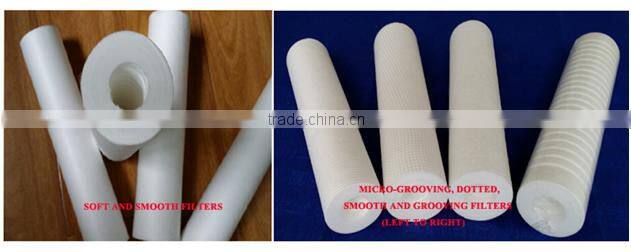

Surface of Filter

Smooth Surface          (extra tool)

Orange  Peel Surface   (extra tool)

Micro-grooving Surface(extra tool)

Groove  Surface          (groving machine)

Dotted  Surface           (extra tool)

Logo on Surface          (carving machine)

Default Voltage

3 Phase 380V or;

1 Phase 220V

If you need other voltage, extra $500 shall be charged.

Machine Weight

Before Packing: 3~3.3T

After   Packing: 4T





Our Service

One Year Limited Warranty

We will provide one-year service for free. We provide the new main parts for free if yours is broken without human factor.

Suggestion 1: We could train your delegates (1~3 person) for 7~14 days until your colleagues have known how to work by themselves. We are responsible for eating and living.

Suggestion 2: One of our engineers will go to your factory to install and teach your operators 7 days~10days. Your company prepare air tickets (go and back) & hotel & eating when he is working& salary (total salary is $1000)

 We suggest customers study at our factory firstly, and then our engineer goes to your factory if you still need. It will be better.



Our Company

ANGE is a professional manufacturer that producing pp melt blown/spun filter making machine. And we have independent research department to design and make new products according to clients’ special requirement.

And we have 2 main engineers, Mr. Xia has 20 years’ experience in machine design and especially in plastic extruding industry; Mr. Wen who has 15 years’ experience in filter making factory and can make all the filters you want.

Our clients are full of the world: India, Iran, Egypt, Taiwan, Ukraine, Turkey, Pakistan, and Thailand…

 2016 PP spun filter cartridge making machine with air compressor
