ANGE is a professional manufacturer that producing pp melt blown/spun filter making machine./pp string wound filter making machine/CTO active carbon filter making machine
PP melt blown filter cartridge making machine/PP spun filter making machine is used to produce high-quality pp filter.And the working principle of this equipment is as below:
Two kinds of PP melt blown filter cartridge making machine -----using roots blower as the pressure and using air compressor with air tank have the similar working principle:
Which type will we recommend? Actually, both type we can use on our PP SPUN Filter cartridge making machine.
Item |
Air Compressor |
Roots blower |
|
Principal |
Producing air pressure much more, less air flow(can make filter micro<=0.5μm) |
Producing air flow much more, less air pressure(can make filter micro>=0.5μm) |
|
|
Power
|
1E1M: 22KW 2E2M: 30KW 3E3M: 37KW |
1E1M: 8KW 2E2M: 11KW 3E3M: 15KW |
|
|
Operation
|
You need to take control of the parameter in air compressor and air tank at the same time |
You only need to adjust an adjuster on roots blower |
|
Temperature |
Air from air compressor has no temperature |
Air from roots blower can be 90 degrees |
|
Performance Parameters of 2e2m pp spun filter making machine/pp melt blown filter making machine
Name |
PP Spun/Melt Blown Filter Making Machin |
Mode |
URB-2E2M |
Total Installed Power |
55KW |
Actual Running Power |
35~40KW |
Output |
145~208pcs/hour 3500~5000pcs/day (refer to 10” filters) |
Raw Material |
100% New Polypropylene |
Internal Diameter |
28mm default (free to customize) |
Outer Diameter |
38~120mm (free to customize) |
Length |
5",10",20",30",...(free to customize) |
Filter Precision |
1μm,3μm,5μm,8μm,10μm,13μm,15μm |
Surface of Filter |
Smooth Surface (extra tool) Orange Peel Surface (extra tool) Micro-grooving Surface(extra tool) Groove Surface (groving machine) Dotted Surface (extra tool) Logo on Surface (carving machine) |
Default Voltage |
3 Phase 380V or; 1 Phase 220V If you need other voltage, extra $500 shall be charged. |
Machine Weight |
Around 4T |

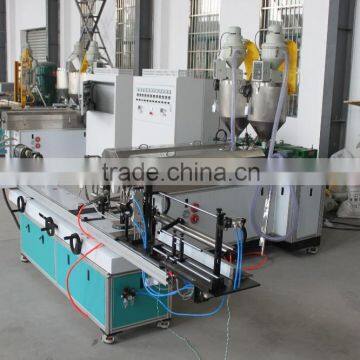

PP Melt Blown Filter Cartridge Machine (URB-3) includes:
1 PP melt blown filter cartridge (URB-3) production line includes:
3 Extruder; 3 Mold; 3 Atuo feeder; 3 Air Heater;
1 Roots Blower; 1 Auto Blower connected from Heater;
1 Receiving Machine&Auto Center; 1 Small Controller;
1 Cleaning Machine for cleaning the mold.
1 Grooving Machine: make grooves on surface of PP cartridge (10" length of PP cartridge)
1 Carving Machine: make dots or keyholes on surface of PP cartridge
1 Dryer Blower: pre-heat the receiving device only
