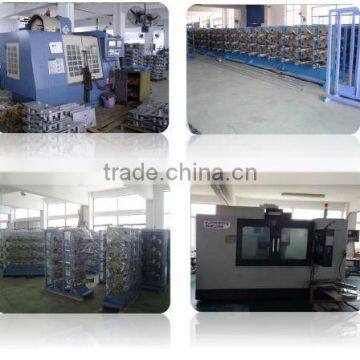

Our Company:
ANGE is a professional manufacturer that producing pp melt blown/spun filter making machine. And we have independent research department to design and make new products according to clients’ special requirement.
And we have 2 main engineers, Mr. Xia has 20 years’ experience in machine design and especially in plastic extruding industry; Mr. Wen who has 15 years’ experience in filter making factory and can make all the filters you want.
PP melt blown filter cartridge making machine is used to produce high-quality pp filter. They are widely used both in household and industrial wastewater pretreatment. And the working principle of this equipment is as below:
Two kinds of PP melt blown filter cartridge making machine -----using roots blower as the pressure and using air compressor with air tank have the similar working principle:
Auto Feeder feeds 100% new drawing class polypropylene into Extruder. Then pp material is melting by heater through Extruder.Roots Blower or Air Compressor and Air Tank blows the air into Air Heater and then the hot air will blow the liquid polypropylene materials through the Mold (with hundreds of small holes in the nozzle), and finally threaded materials arrive at the spindle of Winding Device. Winding Device rotates and forms filter cartridges. Then formed filter cartridges get off the spindle and reach to Auto Cutter. Auto Cutter cuts them according to the required length upon customers’ requirement.

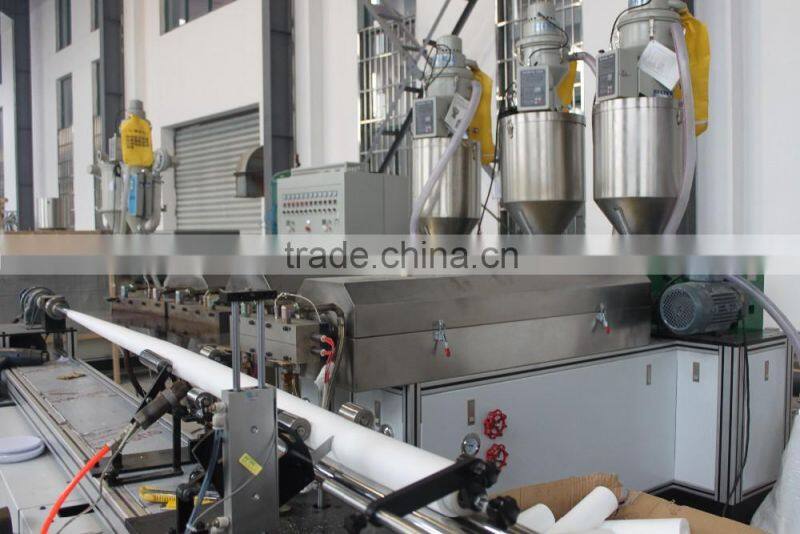

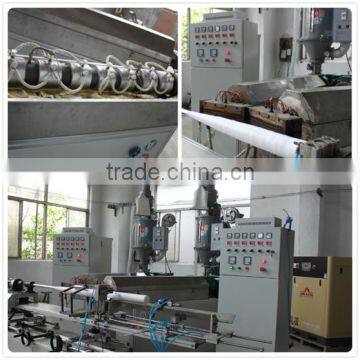

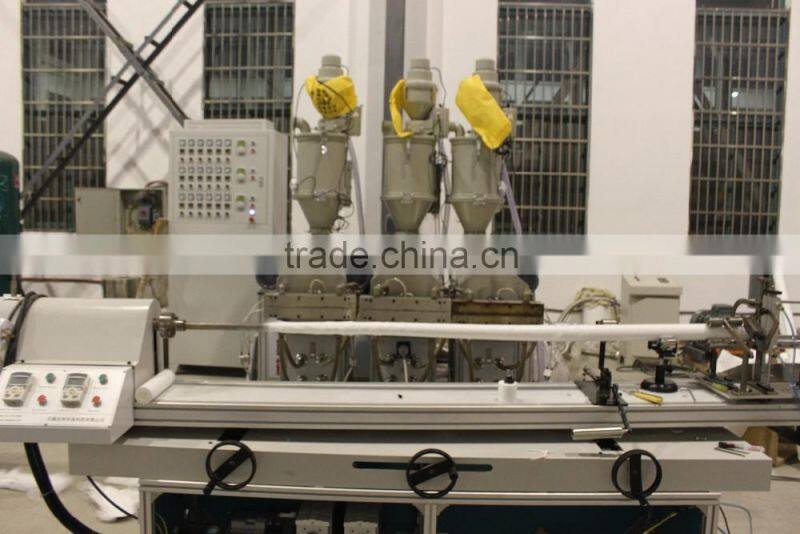

PP Melt Blown Filter Cartridge Making Machine (UAC-3):
Differences between machine with Roots Blower and machine with Air compressor and air tank
Item |
Air Compressor with air tank |
Roots blower |
1.Frequency system |
Could install variable frequency system |
|
2.Power |
Power-consuming. Actual running power is 40 kwh |
Power-saving. Actual running power is 30 kwh |
3.Noise |
Not very noisy |
Very noisy |
4.Maintenance fee |
Costly |
Cheap |
5.Make filter micro |
<0.05 micor |
0.05~100 micro |
6.New operator |
Easy for a new operator |
Easy for a new operator |
7.Pre-heating Time |
Air heater for air compressor could arrive 230℃in only 10minutes and then temperature is very stable. |
normally it needs 30 minutes to arrive 230℃ and keep |
8.Air pre-heating |
Can’t pre heat the air |
Pre heat the air to 80-90℃ |
Our 2016 Newly Design-7th generation
Name |
PP melt blown filter cartridge making machine |
Mode |
UAC-3 |
Total Installed Power |
50KW |
Actual Running Power |
35~45KW |
Output |
5000~6000pcs/day |
Raw Material |
100% New Polypropylene |
Internal Diameter |
28mm default (free to customize) |
Outer Diameter |
38~120mm (free to customize) |
Length |
5",10",20",30",...(free to customize) |
Filter Precision |
1μm,3μm,5μm,8μm,10μm,13μm,15μm |
Surface of Filter |
Smooth Surface (extra tool) Orange Peel Surface (extra tool) Micro-grooving Surface(extra tool) Groove Surface (groving machine) Dotted Surface (extra tool) Logo on Surface (carving machine) |
Default Voltage |
3 Phase 380V or; 1 Phase 220V If you need other voltage, extra $500 shall be charged. |
Machine Weight |
Before Packing: 3~3.3T After Packing: 4T |

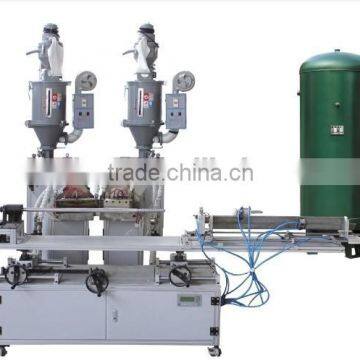

PP melt blown filter cartridge Making Machine(UAC-3) includes:
- 3 Extruder;
- 3 Mold;
- 3 Atuo feeder
- 3Air Heater;
- 1 Air Compressor & 1 Air tank
- 1 Receiving Machine & Auto Center;
- 1 Large Controller
- 1 Cleaning Machine for cleaning the mold.
Photo |
Name |
Detail Description |
|

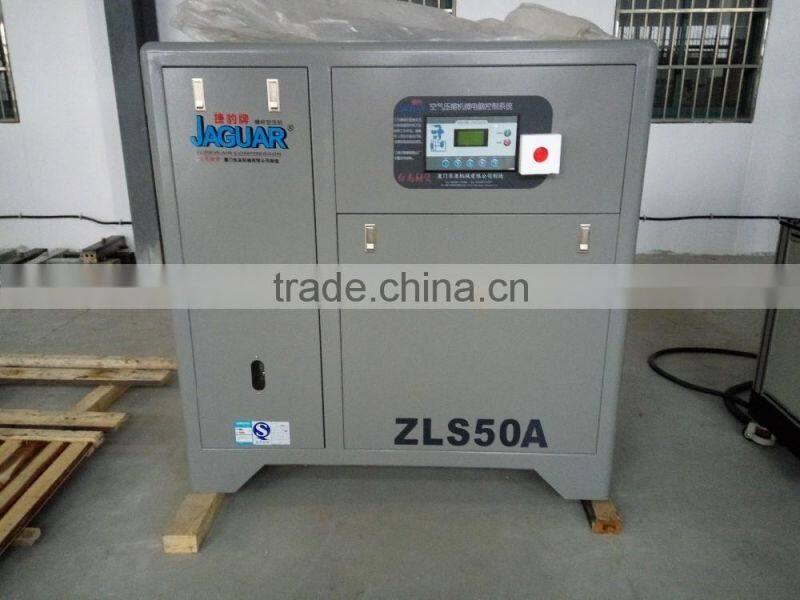

Air compressor
|
Design Pressure-0.8Mpa DISP-3.4m³/min Voltage-22KW/30HP/50HZ/380V
|
|

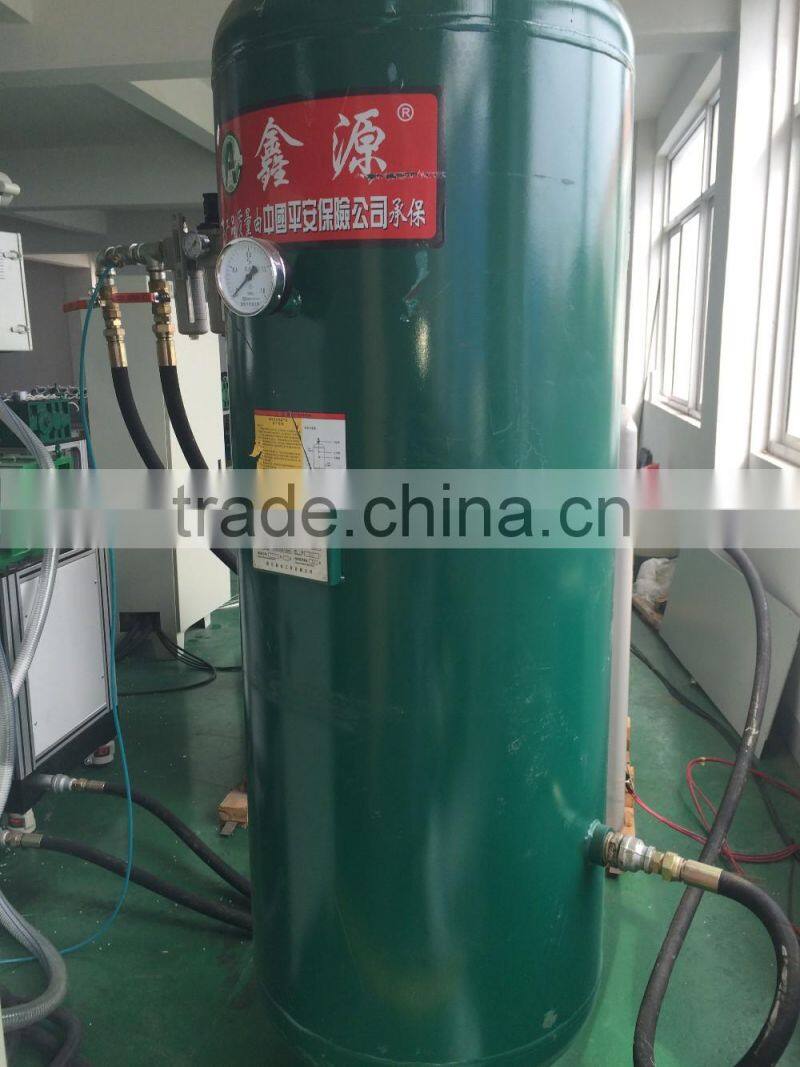

Air tank:
|
Capacity of 0.3M3 Save compressed air and shows Air pressure in meter. Compressor will re-start if air pressure less than 0.3Mpa. Provide pipes connected to the air heater. Don’t worry about raining day; air tank could dry air automatically. |
|

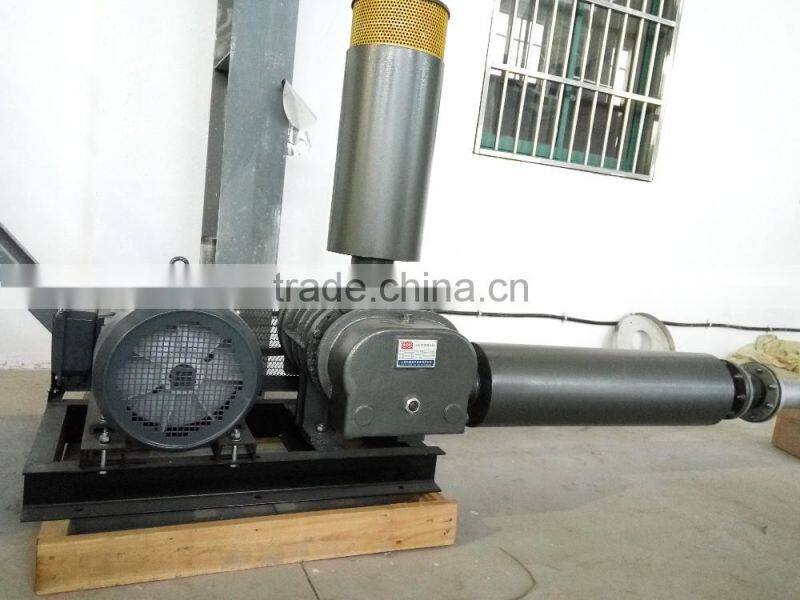

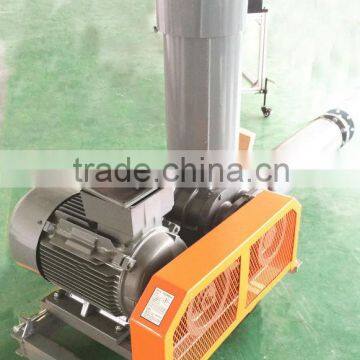

Roots Blower |
Design Pressure-0.7Mpa DISP-7.47m³/min Motor-1500r/min
|
CAPACITY
Mode |
Throughput |
Output |
3 Extruders |
45~54kgs/hour |
5000~6000pcs/24hrs |
Note:
1. Capacity calculated based on the basis of PP filter 10'',ID= 28mm,OD=55~57mm
2. Production capacity is related to the temperature of keep workshop temperature between 10~25 degree, production capacity will be stable
Filter cartridge is widely used in water treatment
1. Electronic, Power Industries: Pure Water, Gas, Electroplating Liquid, Presswork etc
2. Chemical & Petrochemical Industries: Solvent, Paint, Magnetism Paint, Detergent, Liquid wax etc
3. Medicine & Pharmaceutical: Hospital Water, Injection and Oral Liquid
4. Food Industry: Food, Drink, Drinking Water, Alcohol etc.
All kinds of filter cartridge
1. Smooth
2. Dotted cartridge
3. Grooving cartridge
4. Orange peel
Feedback of pp melt blown filter cartridge:
Training: 2 solutions
1. We could train your delegates (1~3 person) for 7~14 days until your colleagues have known how to work by themselves. We are responsible for eating and living.
2. One of our engineers will go to your factory to install and teach your operators 7 days~10days. Your company prepare air tickets (go and back) & hotel & eating when he is working& salary (total salary is $1000)
After-sale Services
Two-year warranty is ensured. We provide new parts (except easy-wear parts) for free if your machine is broken without human factor.
If you have any questions, our engineers are always available to give a comprehensive answer with their 30-year experience in filter making industry.
We suggest customers study at our factory firstly, and then our engineer goes to your factory if you still need. It will be better.
Packaging & Shipping
Every part is packed by plastic film, and all are packed in wooden case.
Shanghai Port is our usual choice, but other ports are available due to your requirements.
Our engineers have rich skills:
Our engineers have been to different Countries to install our machines and teach our customers how to run and maintenance. So, you could promise the good after-sales service and technology support without any worry, as well as high quality machine which is improved according to our lots of users' feedback.
1. Machine design-CAD soft ware
2. Language- GoodSpoken English
3. Bachelor degree-211 University
4. Rich Experience-Training
