PP Filter Making Machine
- 3 Set / Sets per Month
- Shanghai Sea Port
- T/T
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | ANGE | Model Number: | UAC-2 |
Product Description
·Our Company:
ANGE is a professional manufacturer producing pp melt blown/spun filter making machine. We have independent research department to design and we excel at making new products according to clients’ special requirement.
Our clients are full of the world: India, Iran, Egypt, Taiwan, Ukraine, Turkey, Pakistan, and Thailand…
·Technical Support:
Mr. Xia- with 20 years’ experience in machine design and especially good in plastic extruding industry
Mr. Wen- with 15 years’ experience in filter making factory and can make all the filters you want
Mr. Chao- with 30 year's experience in designing PP string wound filter cartridge making machines
·PP Melt Blown Filter Cartridge Machine (UAC-2):
1 PP melt blown filter cartridge (UAC-2) production line includes:
2 Extruders; 2 Molds; 2 Auto feeders; 2 Air Heaters;
1 Air Compressor; 1 Air Tank;
1 Receiving Machine&Auto Center; 1 Small Controller;
1 Cleaning Machine for cleaning the mold.
AS WELL AS
1 Grooving Machine: make grooves on surface of PP cartridge (10" length of PP cartridge)
1 Carving Machine: make dots or keyholes on surface of PP cartridge
1 Dryer Blower: make orange peel on surface of PP cartridge
Performance Parameters of the 2 Extruders Machine(UAC-2)
Parameters | Discription |
Mode | UAC-2 |
Total Installed Power | 50KW |
Actual Running Power | 25~35KW |
Output | 145~208pcs/hour 3500~5000pcs/day (refer to 10” filters) |
Raw Material | 100% New Polypropylene |
Internal Diameter | 28mm default (free to customize) |
Outer Diameter | 38~120mm (free to customize) |
Length | 5",10",20",30",...(free to customize) |
Filter Precision | 1μm,3μm,5μm,8μm,10μm,13μm,15μm |
Surface of Filter | Smooth Surface (extra tool) Orange Peel Surface (extra tool) Micro-grooving Surface(extra tool) Groove Surface (groving machine) Dotted Surface (extra tool) Logo on Surface (carving machine) |
Default Voltage | 3 Phase 380V or; 1 Phase 220V If you need other voltage, extra $500 shall be charged. |
Machine Weight | Around 4T |
· Newly Designed Feature:
--We have installed the Air Heater inside the body of Extruder, which is way more Space-saving and Good-looking from outside. Unlike other manufacturers, our Air Heater has 6 tubes instead of 8. We guarantee high quality of air temperature, as only 10 minutes is needed to achieve 230℃.
Our New Design | Other Manufacturers |
--Due to the mode UAC-2, we supply 2 extruders and 2 molds. According to this design, our machine can produce filters with two micro.

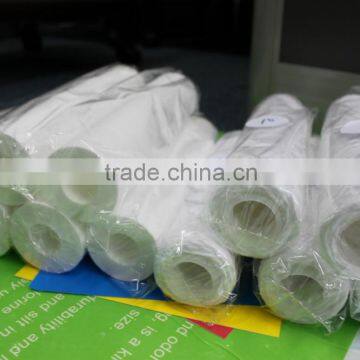

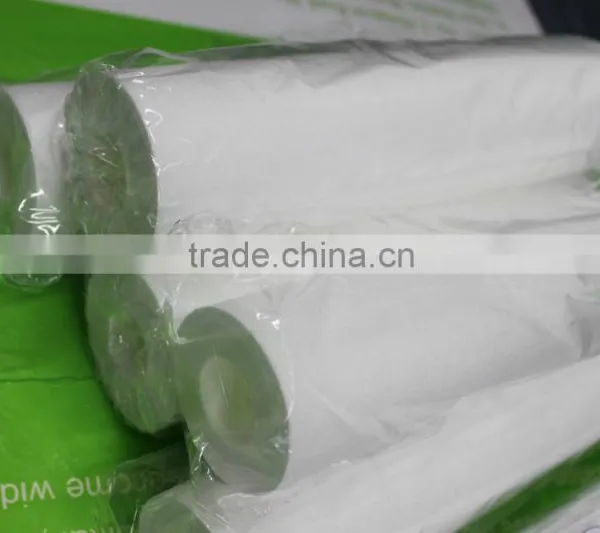

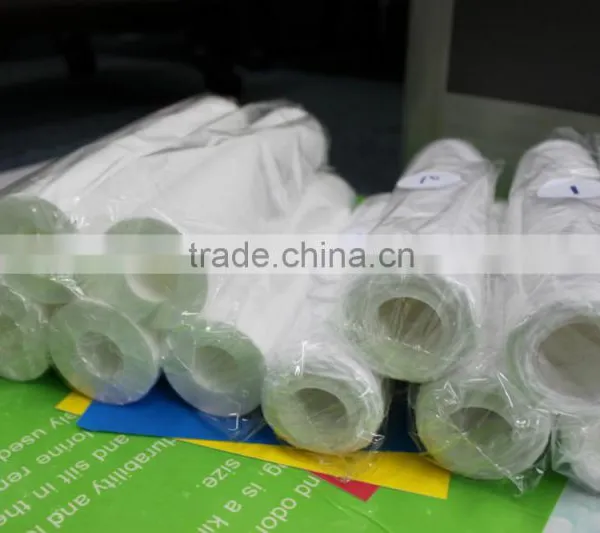

Here are pictures of our end-products made from PP Melt Blown Filter Cartridge Making Machine(UAC-2).

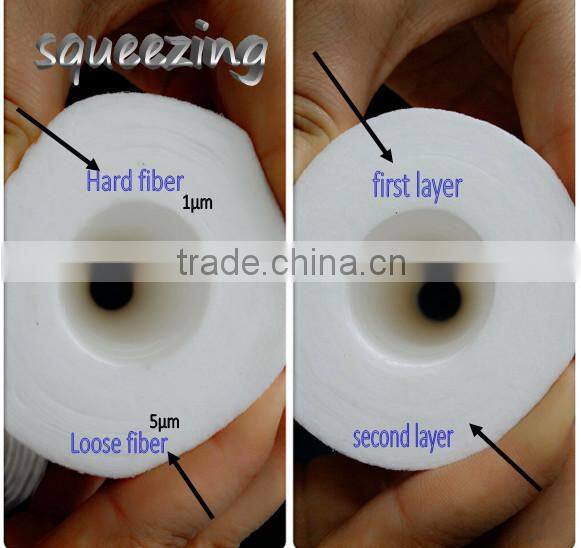

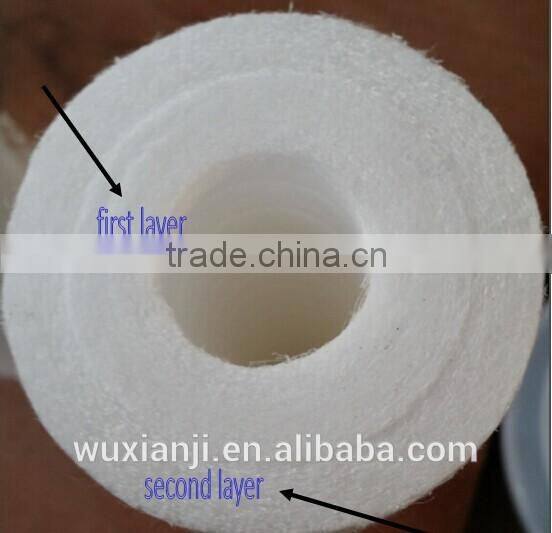

We stand for high quality, as the comparison of filter's being squeezed and not is shown in the picture.
·Spare Parts We Supply For Free:
Heating loop inside of extruders | 8pcs | Sensor | 5sets |
Heating pipe inside of air heater | 2pcs | Bearing | 2pcs |
Temperature controller | 3pcs | Blade | 20pcs |
Button | 2 each | Heating Gun | 1 set |
Porcelain bead and line | some | Solid-state relay | 2pcs |
Water-oil separator for screw compressor | 1 set | Machine-oil filter for screw compressor | 1 set |
Air filter for screw compressor | 1 set | Insulated Pipe | 2pcs |
Needles | 40pcs | Insulated asbestos | some |
Filter Screen/Net | 1 set |
|
|
·After-sales Service:
We provide 1 year warranty;
and our engineers will be available to overseas.
**We will also provide unlimited long-term technical guide by email or skype.
For Training:
--We could train your delegates(1~3person) for 7~14 days until your colleagues have known how to operate by themselves. We are responsible for eating.
--One of our engineers will go to our factory to install and teach your operators 7~10 days. Your company shall prepare air tickets(go and back) &hotel &eating when he is working and total salary is $1000.
**We suggest customers study at our factory firstly, and then our engineer goes to your factory if you still demand.

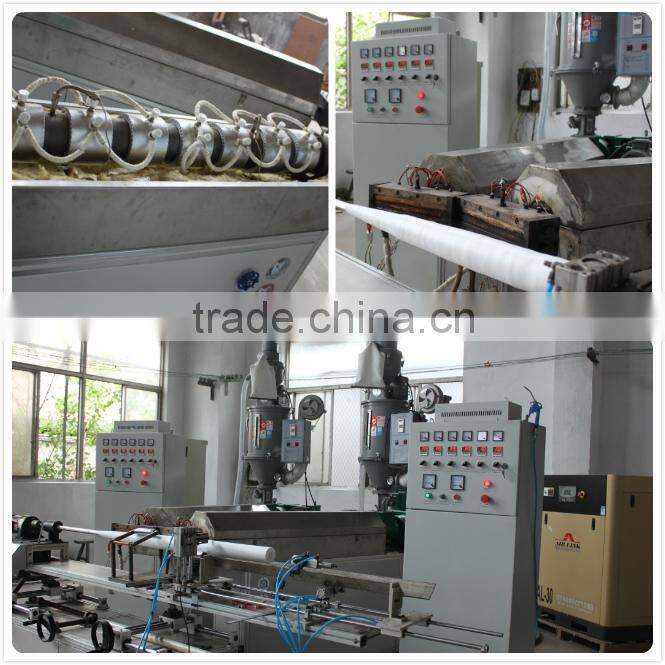

·Pictures of Machine:
