tile /granite marble carving cnc machine for sale

Specifications

Marble carving cnc router
1.Heavy lathe bed for stone
2.Hiwin orbits,CNC DSP control
3.YAKO stepper motor and driver
4.CE,I

3d stone/marble/granite carving/ engraving cnc machine

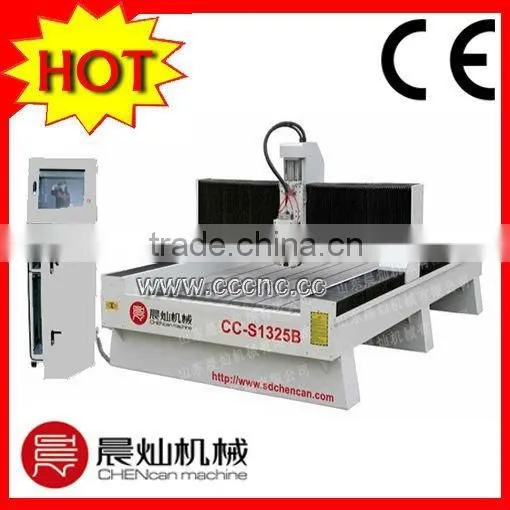

Model: CC-S1325B



3d Marble CNC Router







Applicable industries:



Stone working: engraving or cutting various marble, granite, bluestone, gritstone, soapstone and etc.



Metal working: nonferrous metals like aluminum, brass and etc.



Glass working: various glass.



marble /granite carving machine Features:

1. Lathe bed is welded with thicker square tube and is processed by high temperature tempering treatment and vibrating stress relief (VSR) to relief residual stress. The stability is excellent, not easy to be deformed.

2. Three axes of the marble CNC Router adopt Hiwin high precision square guide rail; X and Y axes adopt rack and pinion transmission, fast working, high efficiency and low cost; Z axis adopts Germany-made ball screw, with high precision and longevity.

3. Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.

4.stone engraving machine has the function of re-carving after break point and power failure.

5. cnc stone engraving machine has the function of forecasting process time.

6.The marble carving CNC Router adopts advanced DSP system with USB interface, operated with the handle, convenient operation. Our engraver can completely work off-line and do not take any computer resources.

7. The 3d stone glass engraving machine has water tank and automatic water cooling system for cutters.

8. Waterproof and dustproof design for the machine protects the transmission parts from broken.



Marble stone engraving CNC Router machine



Technical Parameter:



Description	Parameter
X,Y working area	1300*2500mm
Z working area	300mm
Table size	1440*3040mm
Resolution	0.05mm
Lathe structure	Seamless welded steel structure
X,Y structure	Rack and pinion transmission, Hiwin square guide rail
Z structure	Germany-made ball screw, Hiwin square guide rail
Max. idling speed	30m/min
Spindle motor power	4.5KW
Spindle rotate speed	0-24000r/min
Working voltage	AC380V/50Hz(optional:220V)
Working mode	Stepper
Driver	YAKO
Command	G code(HPGL,U00,mmg,plt)
Operating system	DSP
Interface	USB
Diameter of cutter	φ3.175-φ12.7
Cooling mode	Water-cooling
Dust-collect function	Yes
Work-holding	By clamp
Net weight	2000KG







































































































Certificates:
