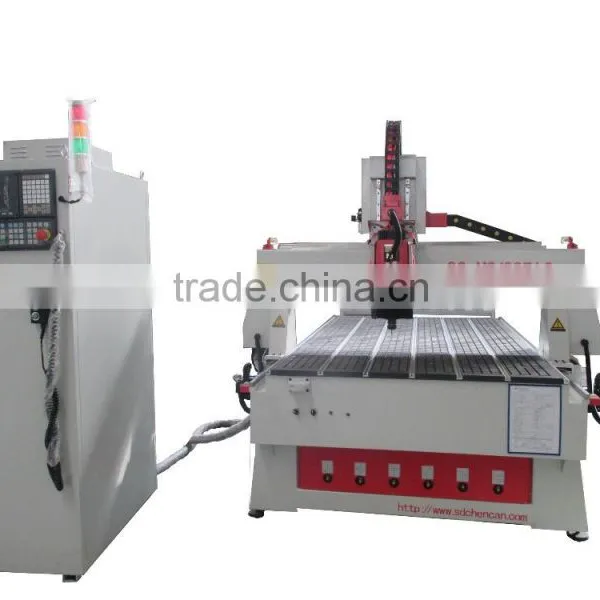

Jinan manufacture cnc wood machine with HSD spindle widely used for furniture and advertising industry CC-MS1325AC
Features:

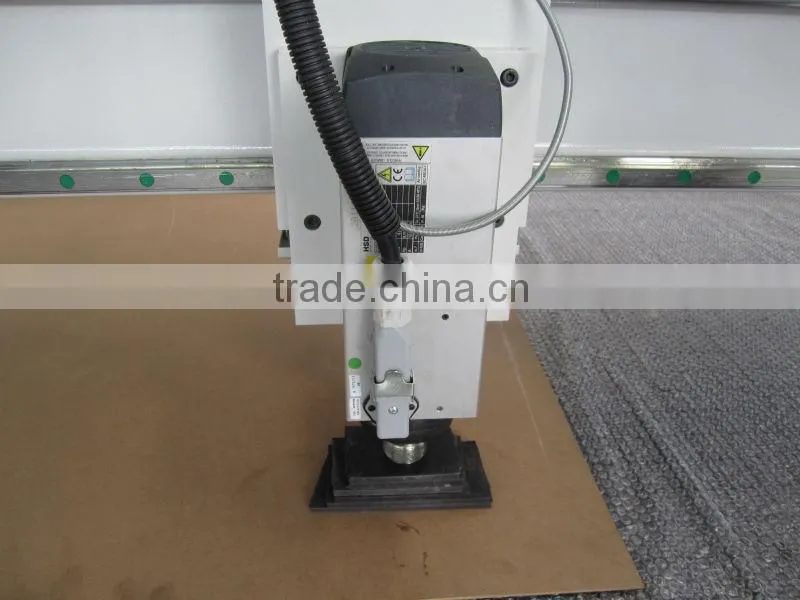

1.Italy-made air-cooled spindle(HSD) , has a high speed of 24,000r/m. Toolholder is ISO30
2.Advanced taiwan syntec control system .
3.X and Y axes adopt rack and pinion transmission,Z axis adopts screw rod transmission
4.Adopts a Taiwan HIWIN H30 linear rail for our ATC CNC engraver.

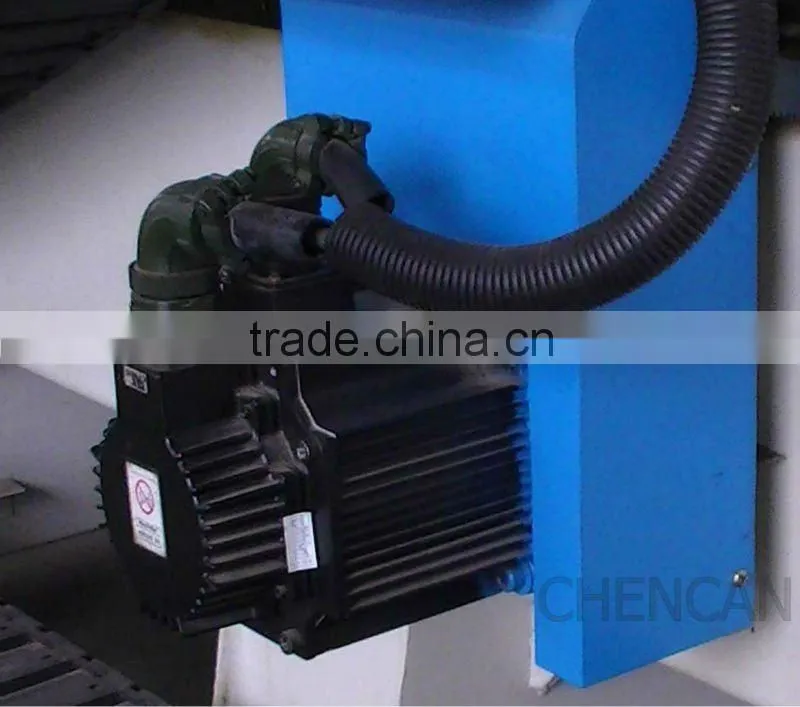

5.And the adoption of YASKAWA servo motors and drivers greatly improves the machine's operation efficiency.
6.This CNC engraving machine is equipped with a high speed ATC spindle which has 6 pieces of tools(without tool storage).And it can change a tool within 8 seconds.
7.Vacuum table with 6 vacuum zones, which can adsorb different size materials and has strong suction of 23 cube meters /hour.
Technical parameters:
X,Y Working Area |
1300*2500mm |
Z Working Area |
300mm |
Table Size |
1440*3040mm |
Resolution |
0.05mm |
Lathe Structure |
Seamless welded steel structure |
Working Voltage |
380v/50hz |
spindle motor |
Italy HSD9 kw ATC spindle |
Diameter of Cutter |
3.175-12.7 |
Cooling Mode |
Air-cooling |
Dust-collect Function |
Yes |
Work Holding |
By suction or clamp |
Tool Magazine |
Linear-style auto-tool changer system with 6/8 pieces of tools |
Net Weight |
2100KG |
Q1:Can you help me to Choice a Better CNC Router? Thanks.
1. Choice a suitable working area
Small size such as 600*600mm and 600*900mm is mainly used for duoble-color board and acrylic and the price of smaller is as much as the two models.
The large size of the machine such as:1200*1200,1200*2400,1300*2500,2000*3000,2000*4000,it is mainly used for wood and pvc,the large size machine is suitable for engraving and cutting for large materials.
2. Choice a suitable spindle motor.
Spindle motor is one for important components for cnc router,the performance of cnc router put an important role in cnc router.
Q2:When the machine can’t work well,What should I do?
1. Engineer is online for 24-hours, they can check the problems and then give you a sulutions in two hours.
2.Our machine are with one’s year warranty, If any problems of machine parts under “normal use”,new machine parts will be sent by air In free.
3.Please rest assured that operation CD and manual will be offered along with machine,making you can operate the machine easily.
Samples:
Certificates:
Welcome to visit us !
CONTACT :
contact person:grace chen
skype: graceqiqi3;
whatsapp/viber:+8615166985775
