Features:

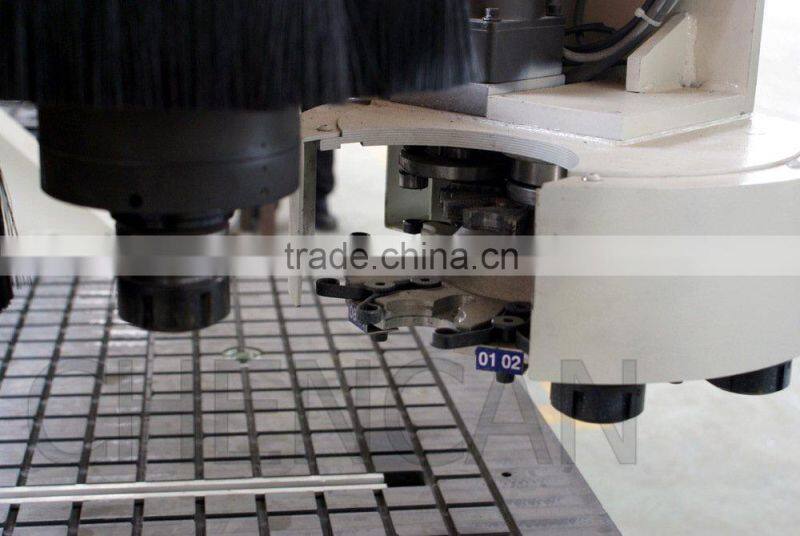

1.Circle style automated tool changer with 8 pieces of tools in total. Changing the tool only needs 8 second.

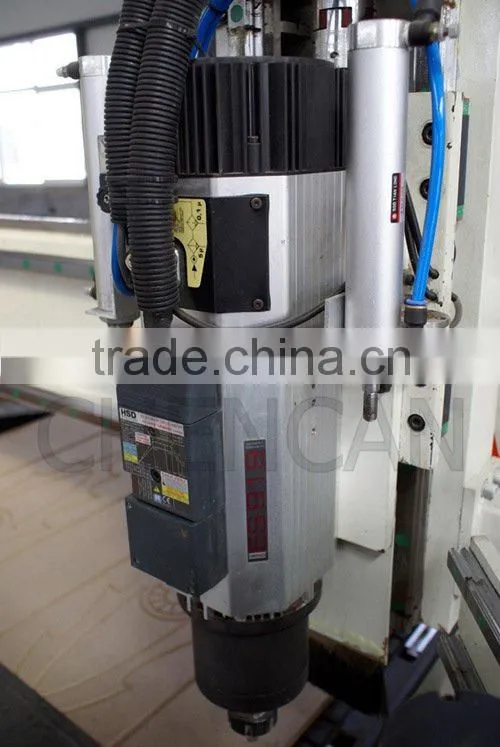

2. Adopt Italy-made air-cooled spindle with strong power of 9.0KW, so the cnc router can keep working for long-time without fault.
3. X and Y axes adopt rack and pinion transmission, faster working, higher efficiency and low cost. Z axis adopts Germany-made ball-screw and Taiwan Hiwin H30 square orbit, with high precision and longevity.
4. Excellent compatibility: CAD/CAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.
5. Gantry is made of steel, unlike others who adopt aluminum materials. Steel gantry has better stability than aluminum ones.

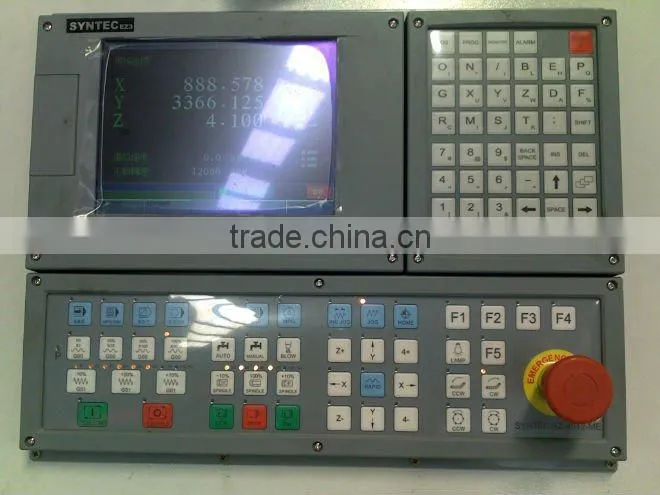

6. Advanced Taiwan SYNTEC control system with separate keyboard and color LCD screen makes the operation easier, and the auto tool change system makes the operation safer and convenient.

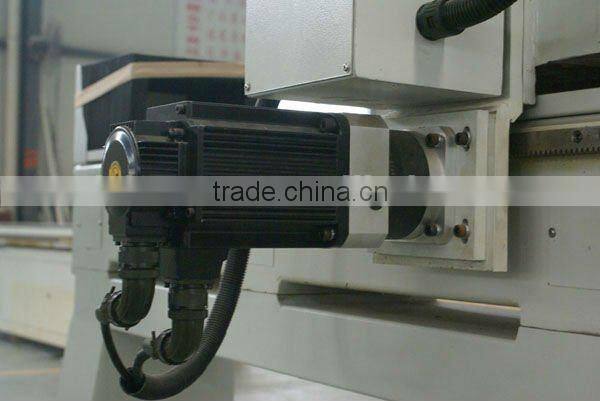

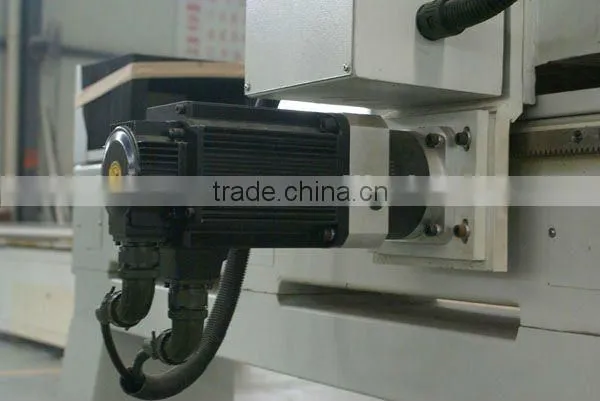

7. Adopting high-torque servo motor with reducer, fast and precise.

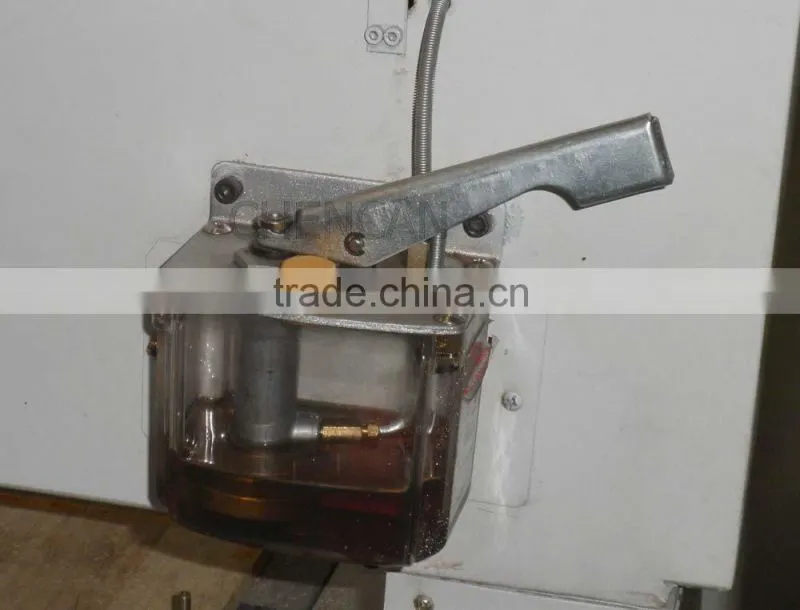

8. Manual oil-injection system makes the maintenance more convenient.

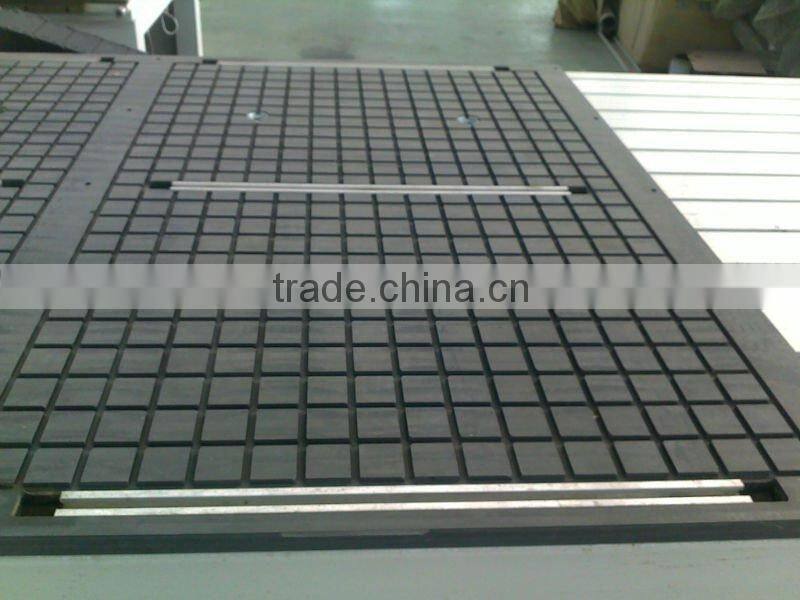

9. Vacuum table with 6 vacuum zones, which can adsorb different size materials and has strong suction of 23 cube meters /hour.
10.Has the function of re-carving after break point and power failure.
11.Advanced file pretreatment function can correct the error in the files and is compatible with the process codes of multiple national and international software.(such as Mastercam, Type3,Arecam) .
Application
CNC Router kit with ATC is widely used in furniture production like doors or cabinet. If your production need machine work with multi type bits and without machine stop, the auto tool changing cnc router is your choice.
Packing: Strong Plywood box for Export
Technical Parameter:
Description |
Parameter |
X,Y Working Area |
1300*2500mm |
Z Working Area |
300mm |
Table Size |
1440*3040mm |
Resolution |
0.01mm |
Lathe Structure |
Steel structure, better than cast iron one |
X,Y Structure |
Rack and pinion, gear drive, Taiwan Hiwin H30 square guide rails |
Z Structure |
Germany-made rolling ball screw, Taiwan Hiwin H30 square guide rails |
Max. Idling Speed |
60m/min |
Spindle |
Italy HSD air-cooling 9.0KW |
Spindle Speed |
0-24000r/min, variable speed |
Working Voltage |
AC380V/50-60Hz, 3Ph |
Motor and driver |
YASKAWA |
Working Mode |
Servo |
Command |
G code (HPGL,U00,mmg,plt) |
Operating System |
Taiwan SYNTEC |
Diameter of Cutter |
φ3.175-φ18mm |
Cooling Mode |
Air-cooling |
Dust-collect Function |
Yes |
Work Holding |
By suction or clamp |
Tool Magazine |
Cirlcle-style auto-tool changer system with 8 pieces of tools |
Net Weight |
1700KG |
