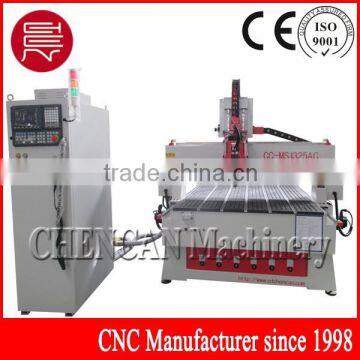

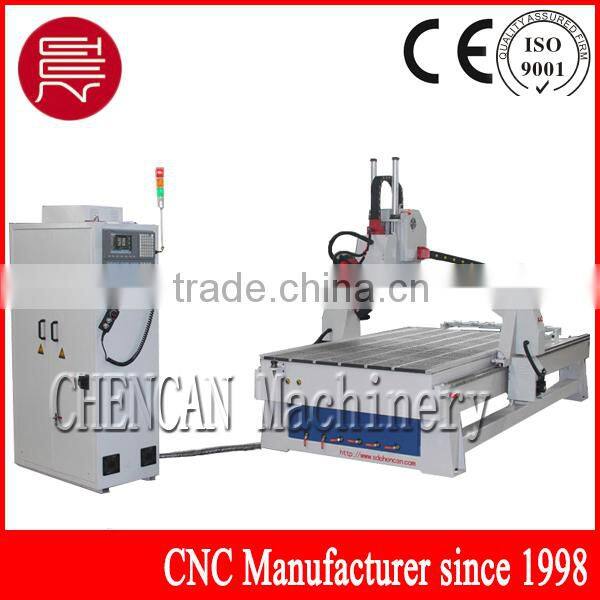

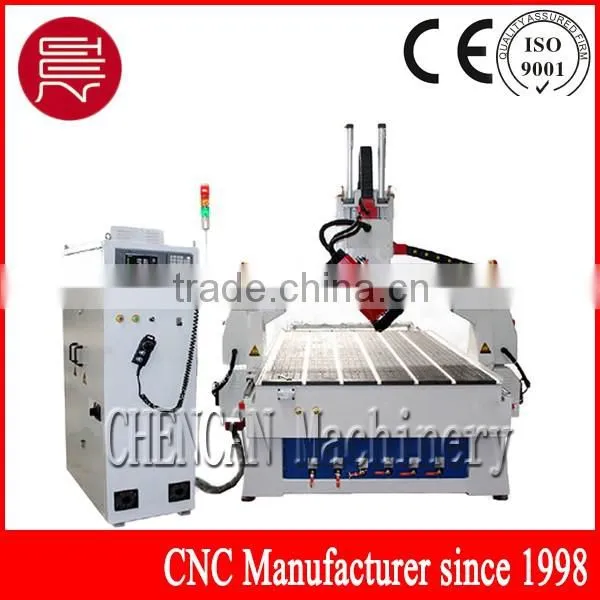

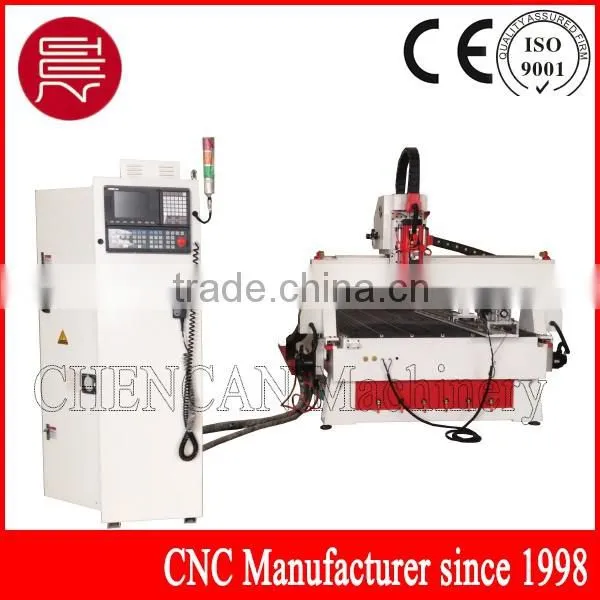

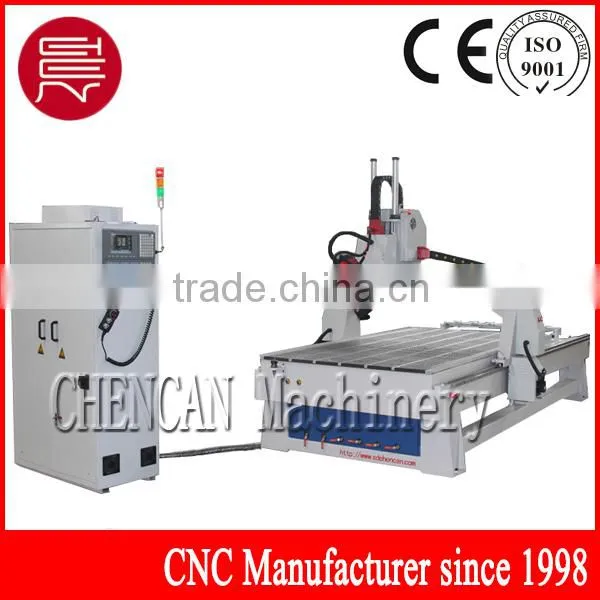

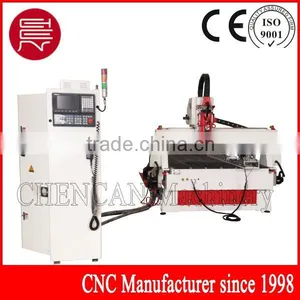

CHENCAN ATC CNC 4 Axis Router With Linear Tool Changer

Name: CHENCAN ATC CNC 4 Axis Router With Linear Tool Changer
Brand: CHENCAN
SKU: 130412781
Availability: InStock

US$ 21,000 - 25,000 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

CNC

Place of Origin:

Shandong, China

Shandong Chencan Machinery Incorporated Company

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao/Tianjin/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not CNC

Place of Origin Shandong, China

Brand Name CHENCAN

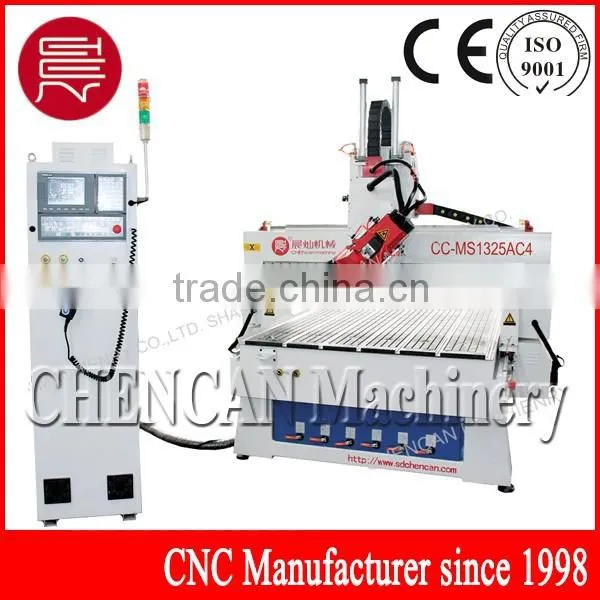

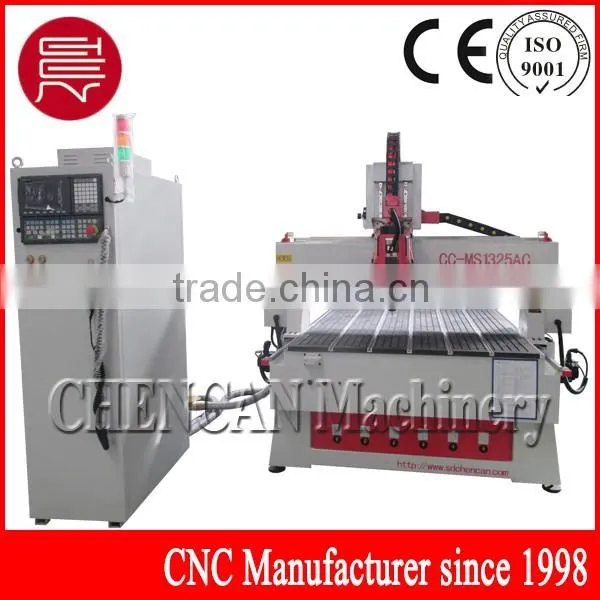

Model Number CC-MS1325AC4

Voltage 220V/380V/415V

Power(W) varied

Dimension(L*W*H) 3.6*2.25*2.55m

Weight 2000kg

Certification CE, ISO

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

ATC CNC 4 Axis Router

Machine working video: http://youtu.be/8BPTbtuktAM, http://youtu.be/3LZXT7p8lXE, http://youtu.be/Yq590VUYIO4
Company Promotion Video: http://youtu.be/OjzH7NMGbH4

Highlight
Spindle can rotate +-90°freely, so the machine can engrave on both flat board and arch shaped work piece.
Product Features
1.	4 Axis CNC router machine, with linear type auto tool changer, 6-8 pieces tools position.
2.	It can realize any 2D and 3D engraving effect with the rotary spindle.
3.	Whole machine is welded with seamless steel structure and vibrating stress relief (VSR) treated to ensure the stability.
4.	High torque servo motor and 3D, 4 axis Taiwan Syntec controlling system.
5.	X and Y axis adopt helical rack and pinion transmission, working fast and has higher accuracy.
6.	Advanced file pretreatment function can correct the error in files and is compatible with multiple softwares, such as Type3, Artcam, Castmate,AutoCad, etc.
7.	High soft electric cables with high abrasion and high temperature resistant.
8.	We will provide software for free, with English and multilingual versions.
9.	Thousands of 2D and 3D designed pictures will be stored in the operation CD.
10.	Every producing work stage is strictly according Euro CE quality and ISO standard.
11.	At least 72 hours testing will be done to the machine before shipping.
12.	American-imported machining center to make sure the high quality of machine’s metal parts.

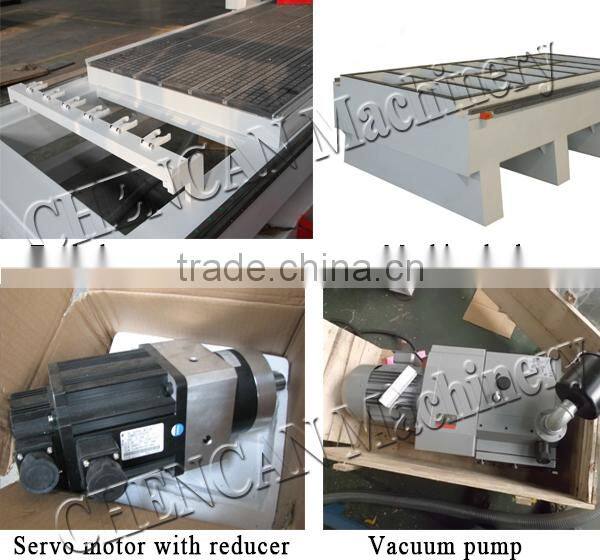

Main Parts


Company promotion video: http://youtu.be/OjzH7NMGbH4

Technical Paramters
X,Y and Z working area	13002500300mm
X,Y structure	Helical rack and pinion, gear drive Taiwan square guide rails (25mm)
Z Structure	Ball screw Taiwan square guide rails (25mm)
Spindle	9kw, atc, air-cooled,HSD
Spindle speed	24000r/min
Gear reducer	Japan brand
Inverter	Delta
Controller	Syntec, 6MB
Rapid speed	50m/min
Diameter of Cutter	3.175-20mm
Motor and driver	Japan Yaskawa Servo
Command	G code
Software	Artcam, Powermill, UG, alphacam, AutoCad,etc
Dust-collect function	yes
Vacuum pump	Oil/dry Tongyou vacuum pump
Lubrication	Manual oil-injection lubrication system
Auto tool changer	Linear ATC with 6/8 tools positions
Working table	Vacuum table with T slots
Working Voltage	AC380V 3-phase, 220V optional
Optional	1.Gang drill/boring head 2.Rotary ATC 3. Automatic lubrication system 4.Customized table size 5.Higher spindle power, etc

Application
Wood processing	Processing of various furniture such as door, window, cabinet, screen and so on
Advertisement	Engraving and cutting various labels and number plate.
Art craft	Engraving characters of any languages and graphics on gifts and souvenirs.
Applicable materials
Wood, aluminum board, brass board, plastic, density board, MDF board, wave board, PVC, acrylic,crystal, light marble and other nonmetal materials and light metal materials.
Processing effect
Engraving, cutting, drilling, milling, enchase, relief, etc.

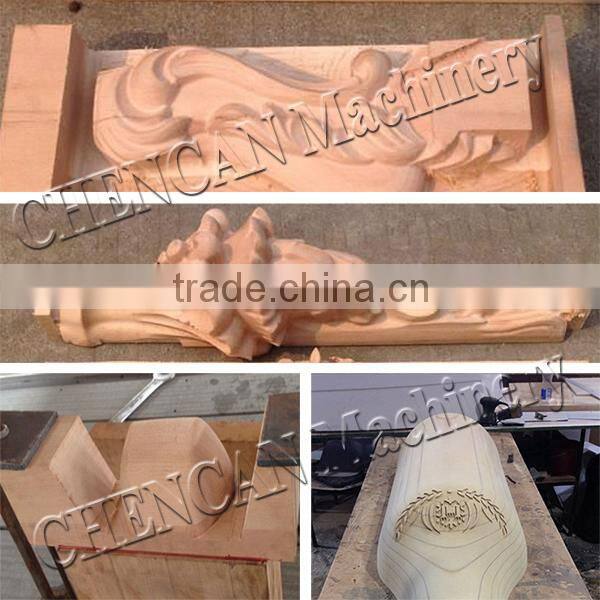

Samples

FAQ
1. I never use this kind of machine before, is it easy to learn?
User-friendly English manual and operation video will be sent together with the machine. If there is still any question, we can talk through phone or Skype. Moreover, you could come to our factory to learn how to use it before shipment. Our technician will give you professional guidance.
2. If the machine has problems, what can you do to help?
Free parts will send to you within warranty time, and there are 24/7 technique support by mail and phone. Our after-sales staff can come to your workshop if the problem still can not be fixed.
3. How does it work?
Under CNC Machining, machine tools function through numerical control. A computer program is customized for an object and the machines are programmed with CNC machining language (called G-code) that essentially controls all features like feed rate, coordination, location and speeds. With CNC machining, the computer can control exact positioning and velocity.
4. How could I know if this machine is suitable for me?
Before ordering, we will provided every details of the machine for your reference, or you could tell us your work piece, our technician will recommend the most suitable machine for you. Furthermore, we can make a sample in advance for you to check if your drawing is provided.

Service and Guarantee
1. Technical supports and suggestions before you order a machine according to your work piece. 2. Professional instruction for the operation of the machine. 3. One year warranty, we will provide the consumable parts at cost price after the warranty period. 4. Our technician will come to your workshop if the problems can not be fixed through Internet or phone communications. 5. 24-hour technical support by email or calling.
Part Replacement
Customers have to send the broken parts to us within one week to our factory address: West Mingjia Road, Qihe Economic Development Zone, Shandong Province. We will check and send you the new one within one week. 1. Customer has to bear the cost of returning the broken parts. 2. If the broken parts is not man-made damaged, we will afford the cost of the new parts and its freight cost.
