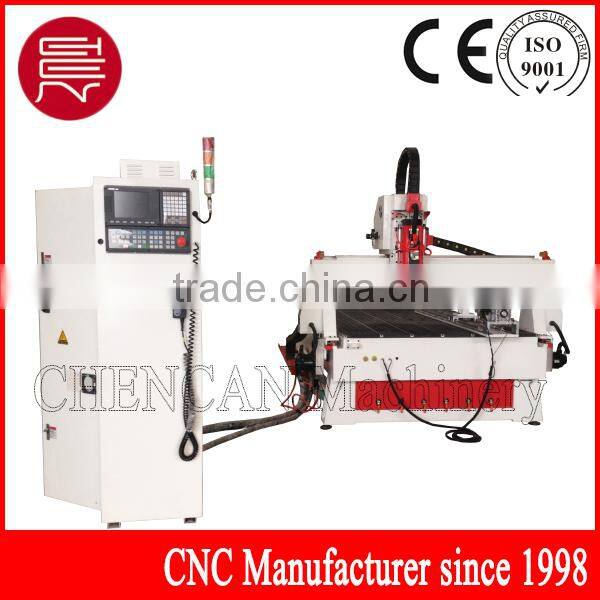

4 Axis ATC CNC Router Lathe With Rotary Attachment

Name: 4 Axis ATC CNC Router Lathe With Rotary Attachment
Brand: CHENCAN
SKU: 130412757
Availability: InStock

US$ 18,000 - 24,000 MOQ: 1 Roll

Key Specifications

Condition:

New

CNC or Not:

CNC

Place of Origin:

Shandong, China

Shandong Chencan Machinery Incorporated Company

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao/Tianjin/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not CNC

Place of Origin Shandong, China

Brand Name CHENCAN

Model Number CC-MS1325AC

Voltage 220V/380V415V

Power(W) varied

Dimension(L*W*H) 1325, 1530, 2040

Weight 3000kg

Certification CE, ISO

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

ATC CNC Router Lathe

Machine Working Video: http://youtu.be/W2AqGdX9RPo
Company Promotion Video: http://youtu.be/OjzH7NMGbH4

Statement
Both the steel table-frame and gantry are manufactured to the highest standard, ensuring outstanding rigidity. All 3 axes are powered by fast, reliable, and quiet Yaskawa AC Servo motors which provide plenty of torque and power.
The X and Y axes run on linear bearings and rails to ensure smooth and accurate travel. These bearings are factory-sealed and provide maintenance-free reliability.
Cutting is performed by a 9kw HSD Auto Tool Change spindle. Coupled with CNC’s 6-8 tool static rack it makes multiple-tool jobs a breeze.
Materials are held down with a powerful air-cooled vacuum pump and dust is efficiently removed with the CNC dust extraction system. All these components are driven by the industry renowned Syntec CNC controller.

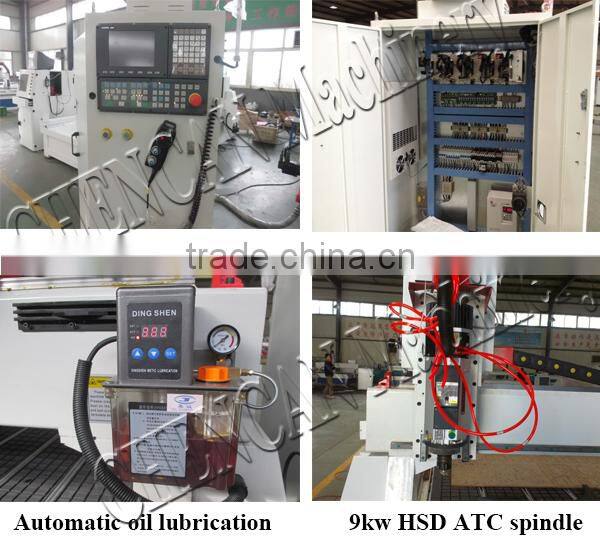

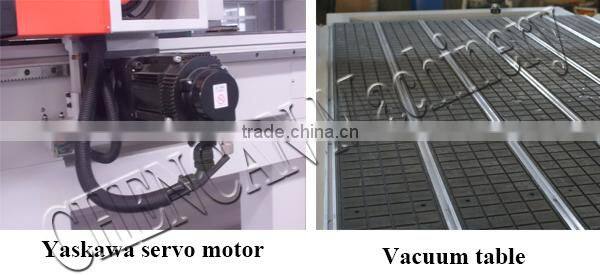

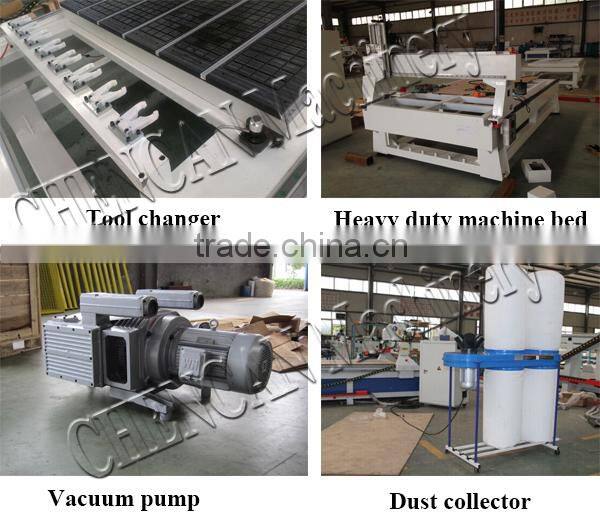

Main Parts




Company promotion video: http://youtu.be/OjzH7NMGbH4

Technical Parameters
X axis working area	1300mm
Y axis working area	2500mm
Z axis working area	300mm
Precision	0.01mm
Spindle	Italy HSD ATC 9kw
Spindle Speed	Adjustable 0-24,000 rpm
Tool Change	Linear tool-changer 6-8 pieces
Drive System (X & Y Axes)	Helical rack & pinion
Drive System (Z Axis)	German ball screw
Guide Rail	Hiwin 25mm square guide rail
Lubrication	Automatic oil-injection system
Drive Motors	Japanese Yaskawa servo motors
Driver	Yaskawa
Inverter	Delta
Command	G code
Cutter diameter	3.175-20mm
Maximum Idling Speed	50m/min
Maximum Engraving Speed	30m/min
Table Top	Vacuum table with T-slots
Controller	Taiwan Syntec
Vacuum Pump	Chinese Tongyou 5.5kw
Dust Collector	1.5kw/3kw
Power Requirements	3-phase 380V/50HZ (220V/50HZ optional)

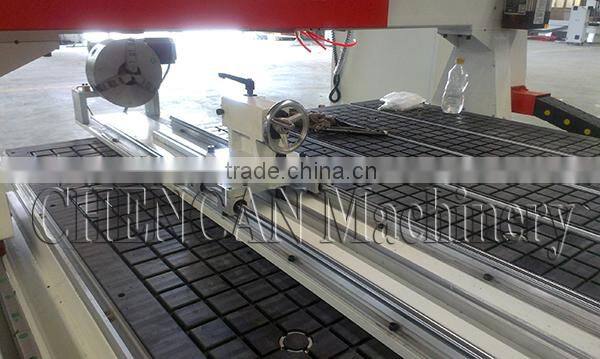

Optional	1. Alignment pop-up pins/stoppers 2. Gang drill 3. Customized table size 4. Added rotary axis 5. Manual oil-injection system etc

Application
Wood processing	Processing of various furniture such as door, window, cabinet, screen and so on
Advertisement	Engraving and cutting various labels and number plate.
Art craft	Engraving characters of any languages and graphics on gifts and souvenirs.
Applicable materials
Wood, aluminum board, brass board, plastic, density board, MDF board, wave board, PVC, acrylic,crystal, light marble and other nonmetal materials and light metal materials.
Processing effect
Engraving, cutting, drilling, milling, enchase, relief, etc.
Samples

Service and Guarantee
1. Technical supports and suggestions before you order a machine according to your work piece. 2. Professional instruction for the operation of the machine. 3. One year warranty, we will provide the consumable parts at cost price after the warranty period. 4. Our technician will come to your workshop if the problems can not be fixed through Internet or phone communications. 5. 24-hour technical support by email or calling.
Part Replacement
Customers have to send the broken parts to us within one week to our factory address: West Mingjia Road, Qihe Economic Development Zone, Shandong Province. We will check and send you the new one within one week. 1. Customer has to bear the cost of returning the broken parts. 2. If the broken parts is not man-made damaged, we will afford the cost of the new parts and its freight cost.

FAQ
1. I never use this kind of machine before, is it easy to learn?
User-friendly English manual and operation video will be sent together with the machine. If there is still any question, we can talk through phone or Skype. Moreover, you could come to our factory to learn how to use it before shipment. Our technician will give you professional guidance.
2. If the machine has problems, what can you do to help?
Free parts will send to you within warranty time, and there are 24/7 technique support by mail and phone. Our after-sales staff can come to your workshop if the problem still can not be fixed.
3. How does it work?
Under CNC Machining, machine tools function through numerical control. A computer program is customized for an object and the machines are programmed with CNC machining language (called G-code) that essentially controls all features like feed rate, coordination, location and speeds. With CNC machining, the computer can control exact positioning and velocity.
