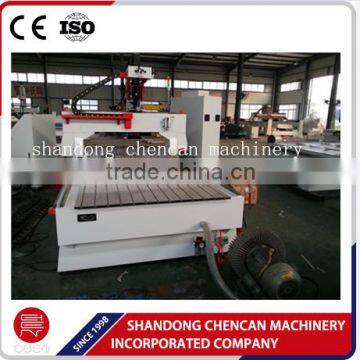

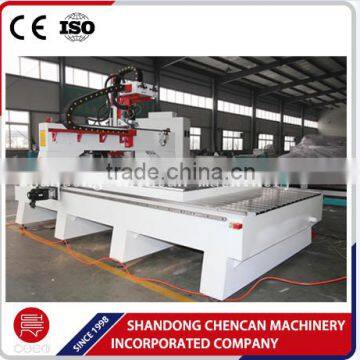

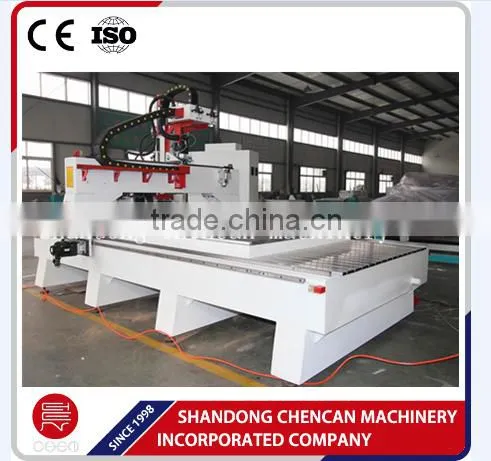

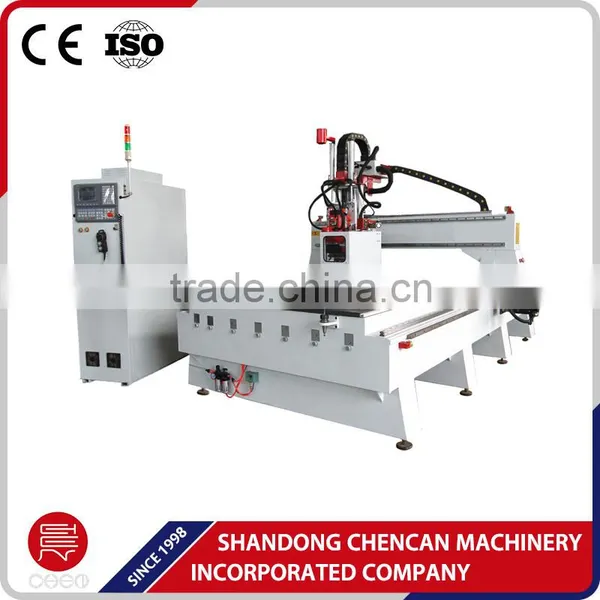

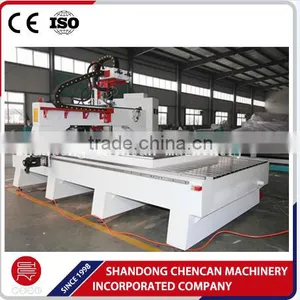

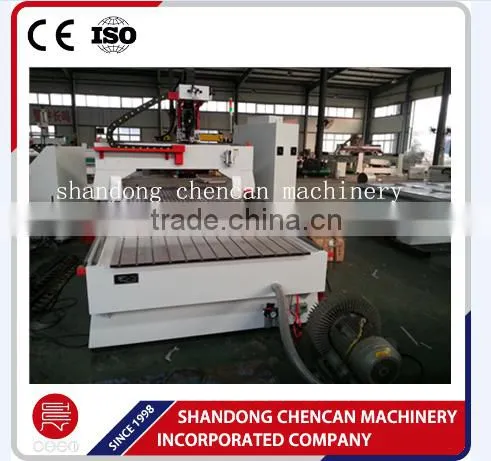

automatic tool changing cnc machine in wood router with ISO 30 spindle
CC-MS1325AD
Features:
1.Whole machine is welded with seamless steel structure; the stability is excellent, not easy to be
deformed.
2.Z axis adopts Germany-made ball-screw and Taiwan made H30 linear orbit, with high precision
and long lifetime. X and Y axes adopt rack and pinion transmission, faster working, higher efficiency and low cost.
3. Excellent compatibility: CAD/DAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.

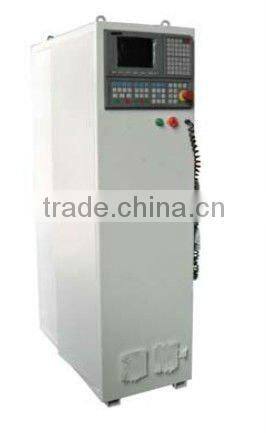

4. Adopting Taiwan-made Syntec control system, separate keyboard control system and color LCD screen makes the machine have perfect performance.

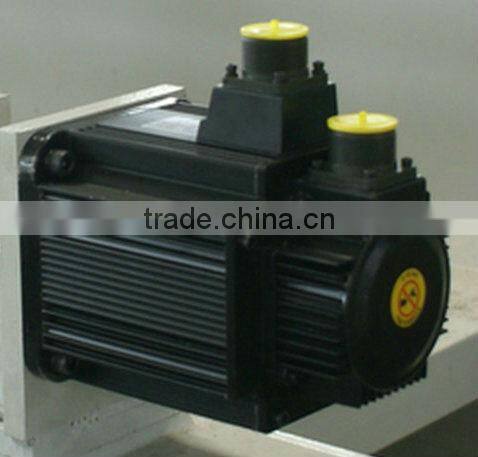

5. Adopting high-torque Japan-made ESTUN servo motor and driver, with steady working capability and high positioning precision.

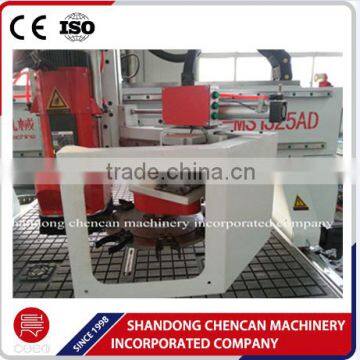

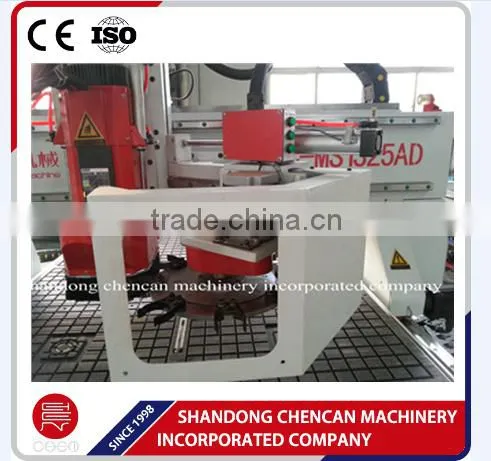

6. Adopting Italy-made HSD air-cooling spindle make the machine have high precision, long life-time and steady working capacity. Auto-tool changer system makes the machine safer and save time.
7. Auto oil-injection system makes the maintenance more convenient.
8. Vacuum table with 6 vacuum zones, which can adsorb different size materials and has strong suction of 23 /hour.
9. Has the function of re-carving after break point and power failure. Has the function of forecasting process time.
10. Advanced file pretreatment function can correct the error in the files and is compatible with the process codes of multiple national and international software.(such as Mastercam, Type3, Arecam) .Advance 3D space curve prediction algorithm can make sure of the evenness of polyline and speed and precision of curve lines.
Applications:
Wood processing: processing of various furniture such as door, window, cabinet, craft wooden door, screen and so on.
Advertisement: engraving and cutting various labels and number plate.
Art craft: engraving characters of any languages and graphics on gifts and souvenirs.
Applicable materials:
Wood, aluminum board, plastic, density board, wave board, PVC, acrylic,crystal, light marble and other nonmetal materials and light metal materials.
Processing effect:
Our router may carve various shade vulture, relief and etc. And it can do : Engraving, cutting , milling , drilling , ect…
Technical specification:
Model |
CC-MS1325-AD |
Note |
Lathe body |
Thick and Hard Steel structure |
sand blast & seasoning |
X Y effective working area |
1300*2500*300mm |
|
Table size |
1400*3040mm |
|
Resolution |
0.001—0.003 mm |
|
Spindle power rate |
Italy made HSD 9.0KW |
Made In Italy |
Inverter |
Delta |
Taiwan |
X,Y structure |
Rack and pinion transmission, Taiwan-made Linear Bigger orbit, 30mm |
Taiwan |
Z structure |
Germany-made ball screw |
Germany |
Motor of X , Y, Z axis |
850W/piece (Four Pieces) Servo |
Japan Yaskawa |
Driver |
Servo |
Japan Yaskawa |

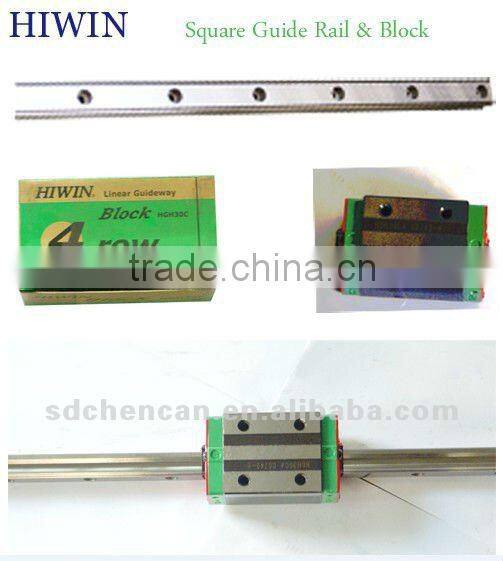

Guide Rail |
Hiwin—30mm |
Taiwan |
Spindle rotating speed |
0-24000r/min |
|
Standard Power |
AC380V-/220V-Three Phase (Optional) |
|
Max. idling speed |
40m/min |
|
Max. feeding height |
300mm |
|
Cooling mode |
Air-cooling |
|
Command |
G code,HPGL,U00,mmg,plt |
|
Dust-collect function |
Yes |
3.5KW Dust Collection Machine |
Clamping mode |
By suction |
|
Vacuum Pump |
Air-cooling |
Germany |
Operating system |
Taiwan-made Baoyuan system |
Taiwan |
Diameter of cutter |
φ3.175-φ20 |
|
Working mode |
Servo |
JAPAN Yaskawa |
Cutter quantity |
Dish-style auto-tool changer system with 8 pieces cutter |
|

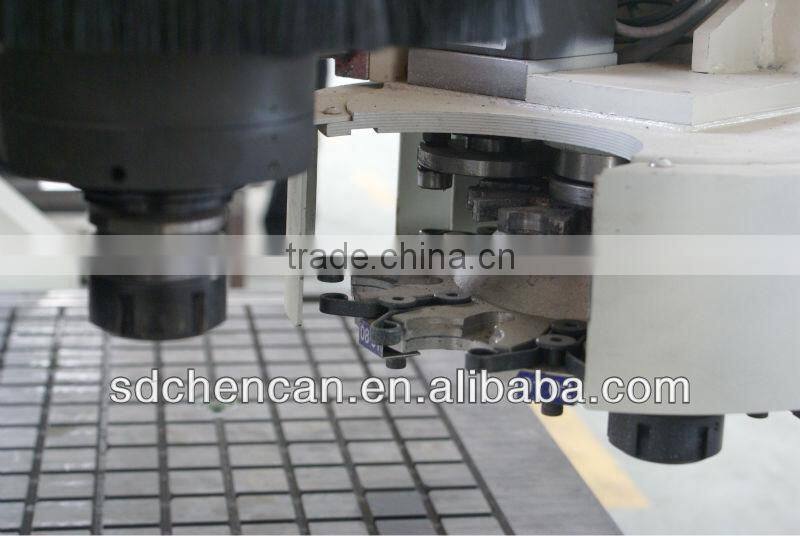

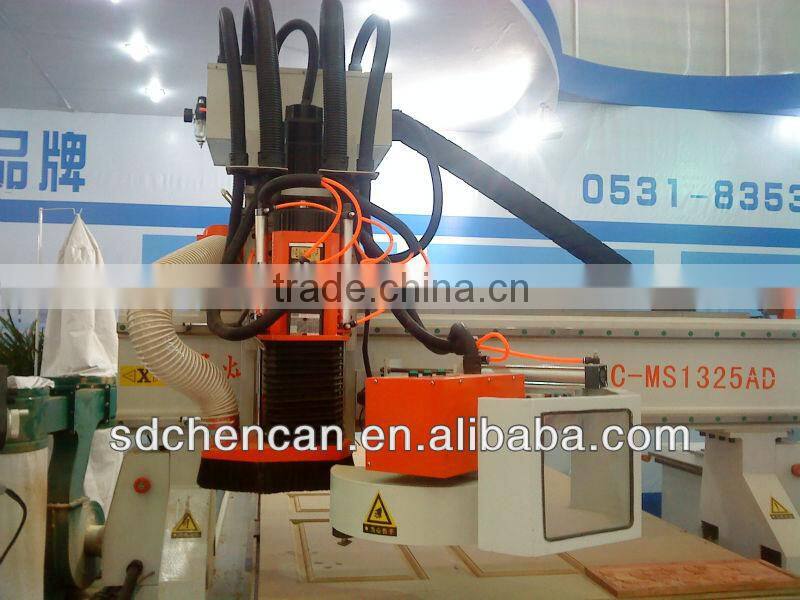

Machine's part pictures:
Samples:
Certificates:

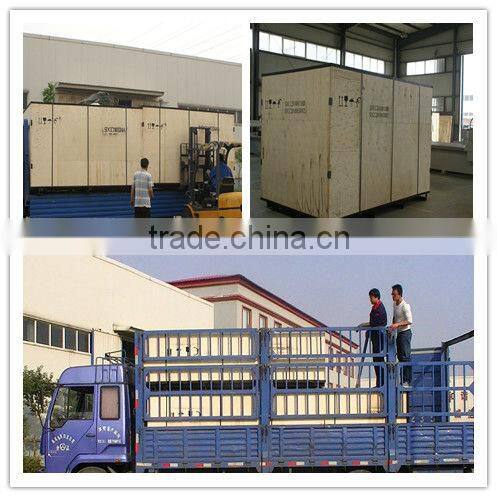

Delivery and transport:

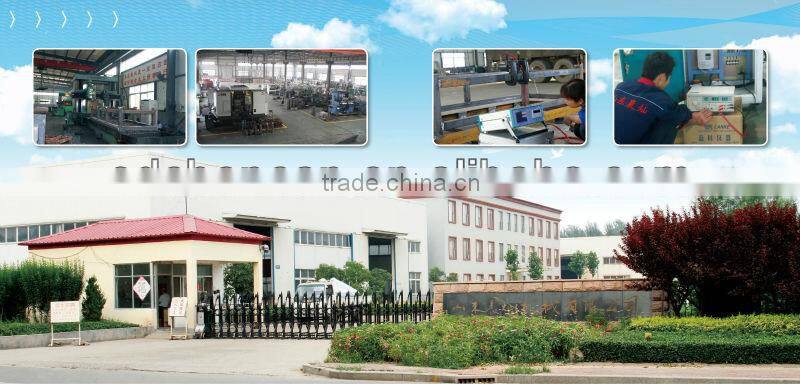

Welcome to visit us !
Contact person: grace chen
Skype:graceqiqi3
Whatsapp/viber:+86 15166985775
Company name : Shandong Chencan Machinery Incorporated Company
Add :west mingjia road ,qihe economy development zone,shandong province
(Near jinan city ,from the factory to jinan airport ,30 minutes driving)
