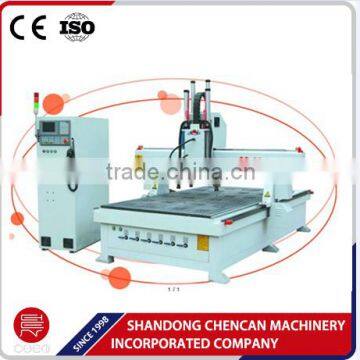

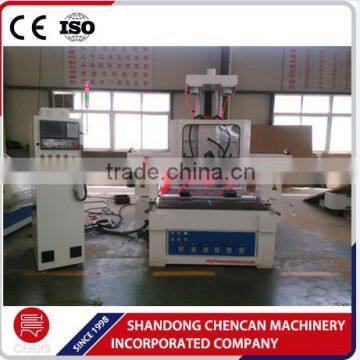

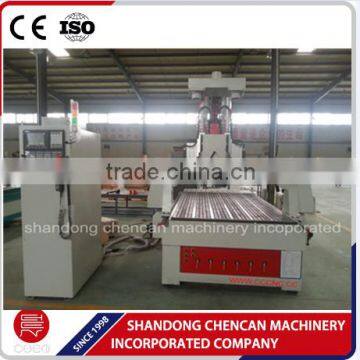

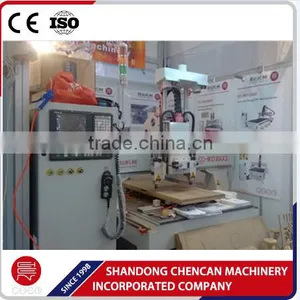

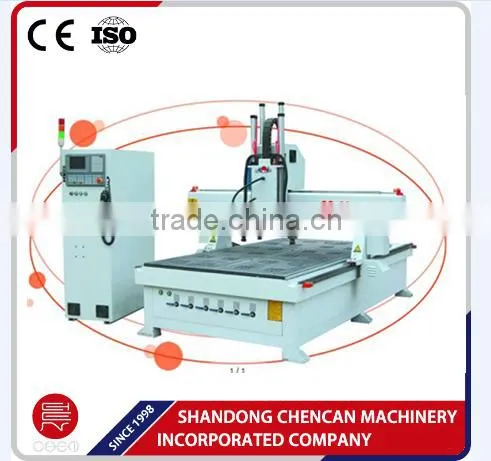

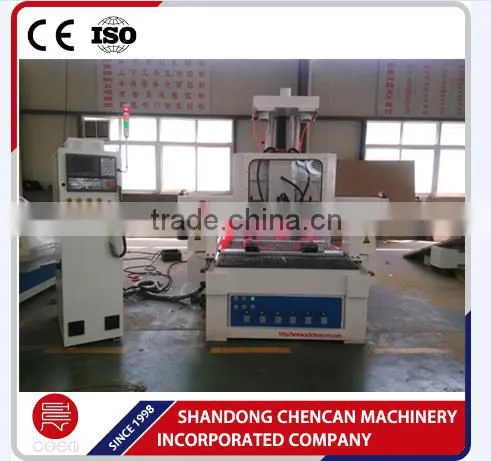

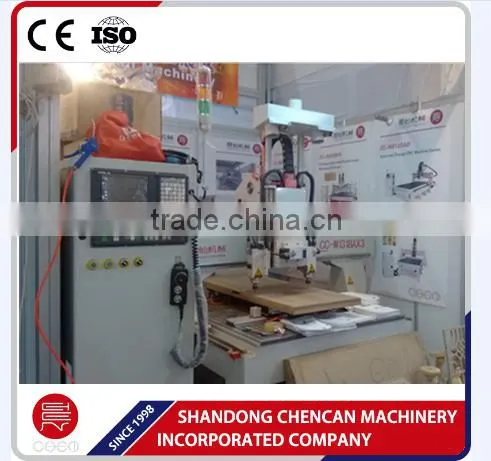

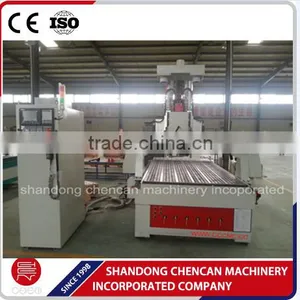

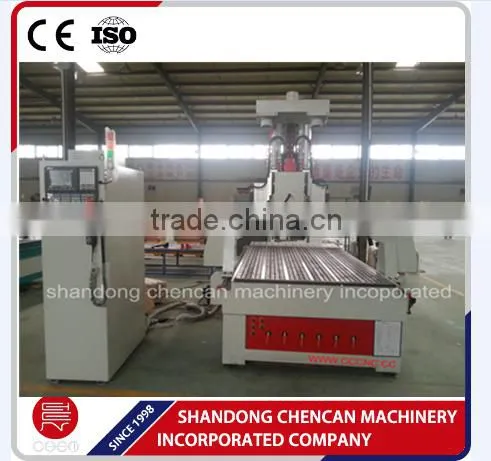

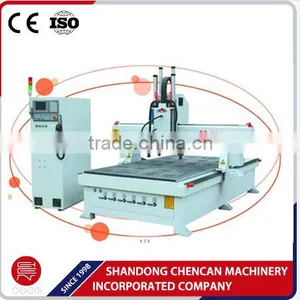

3 Heads auto tool changing CNC Router for wooden cabinet door making
Model: CC-M1325AC3
Standard Features:

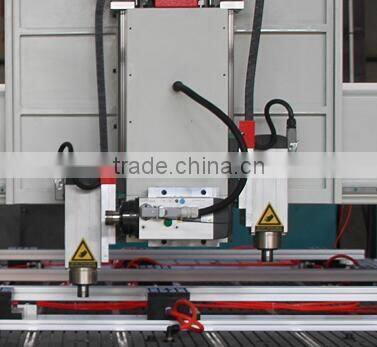

1. It is a high performance-to-price ratio ATC machine, can work with 3 different kinds of tools without stop.
2. Lathe bed is welded with thick channel steel and square tubes; processed by high temperature tempering treatment and vibrating stress relief (VSR) to reduce residual stress; Ensure excellent stability, not easy to be deformed.
3. Three axes of three-operation CNC Router adopt Taiwan Hiwin high precision square guide rails; X and Y axes adopt rack and pinion transmission, fast working, high efficiency and low cost; Z axis adopts Germany rolling ball screw, with high precision and longevity.
4. Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.
5. Has the function of re-carving after break point and power failure.

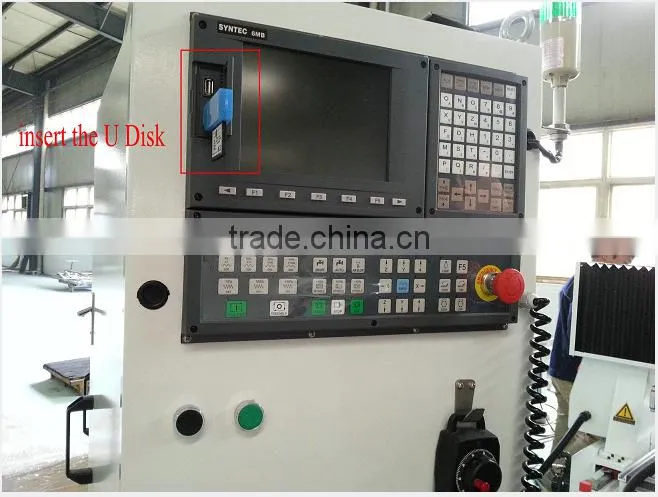

6. Three-operation CNC Router adopts advanced DSP system with USB connection, operated with the handle, convenient operation. Our engraver can completely work off-line and do not take any computer resources.
7. Perfect lubricating system makes maintenance much easier.
8. Has duct-collect function. It will clean up the carving residuum and make the operations tidier and more convenient.
9. Adopting air-cooling system, it can provide good cooling effect when carving flinty materials.
auto tool changing wood door making CNC Router machine Applicable industries:
Wood processing: processing of various furniture such as door, window, cabinet, craft wood door, screen and so on.
Advertisement: engraving and cutting various labels and number plate.
Applicable materials:
Wood, aluminum board, brass board, plastic, density board, MDF board, wave board, PVC, acrylic, crystal, light marble and other nonmetal materials and light metal.
auto tool changing wood door making cnc router machineProcessing effect:
It is widely used for cutting, milling, drilling, engraving various shade vulture, relief, 3d engraving etc.
Technical Parameter:
Description |
Parameter |
X,Y Working Area |
1300*2500mm |
Z Working Area |
300mm |
Resolution |
0.05mm |
Lathe Structure |
Seamless welded steel structure, better than cast iron one |
X,Y Structure |
Rack and pinion transmission, Hiwin square guide rail |
Z Structure |
Germany rolling ball screw, Hiwin square guide rail |
Max. Idling Speed |
30m/min |
Spindle |
4.5KW per spindle |
Spindle Rotate Speed |
0-18000r/min, variable speed |
Working Voltage |
AC380V/50Hz |
Working Mode |
Stepper motor |
Command |
G code (HPGL,U00,mmg,plt) |
Operating System |
original NC studio /taiwan syntec |
Diameter of cutter |
φ3.175-φ12.7mm |
Cooling Mode |
Air-cooling |
Dust-collect Function |
Yes |

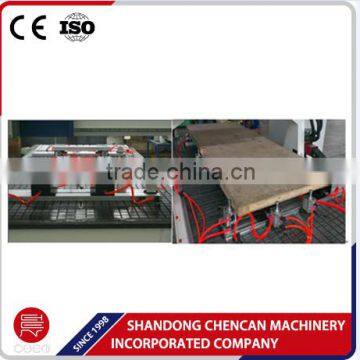

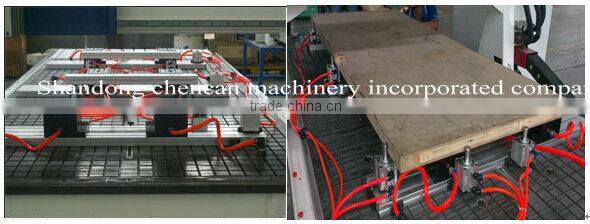

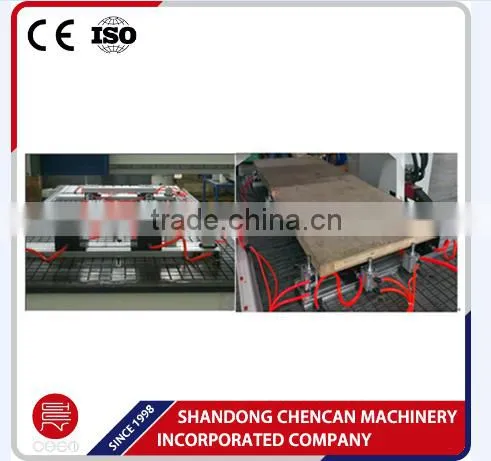

Work-holding |
By suction and clamp |
Gross Weight |
1800KGs |
Software |
Type 3, ArtCam, Wentai |
SAMPLES:
1. Payment: T/T,L/C; Trade surance ,at least30% deposits, 70% balance before delivery
2. MOQ: 1 set
3. Warranty : 1 year
4. Package: wooden case/iron tray ,according to the size of the machine package.
duct time : 30workdays
strong plywood pacakge or iron tray for export;
we transport the cnc router machine to you by sea or other way we negociate .
Q1: Installation and Debugging
Customers can get detailed operation manual and instruction video. We will make sure that customers can operate machines skillfully.
Q2: Training
Customers can get free technical training. Mainly training are as follow:
- software operation
- machine operation and maintenance
- Instruction of technical parameters, as well as their setting ranges
- solutions for common problems
Q3: Equipment Maintenance
One year free maintenance, lifelong caring
Free technical consultant and software updating
Customer Service responding in 2 hours
Continuous support with software and hardware after free maintenance
Q4: Guarantee
The guarantee period shall be 12 months counting from the date on which the machine arrives destination port. Except the damage artificially, we are responsible for offering the fittings free of charge during the guarantee period, but you must send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. After the guarantee of quality period, the parts required to repair or change, if any, shall be paid.

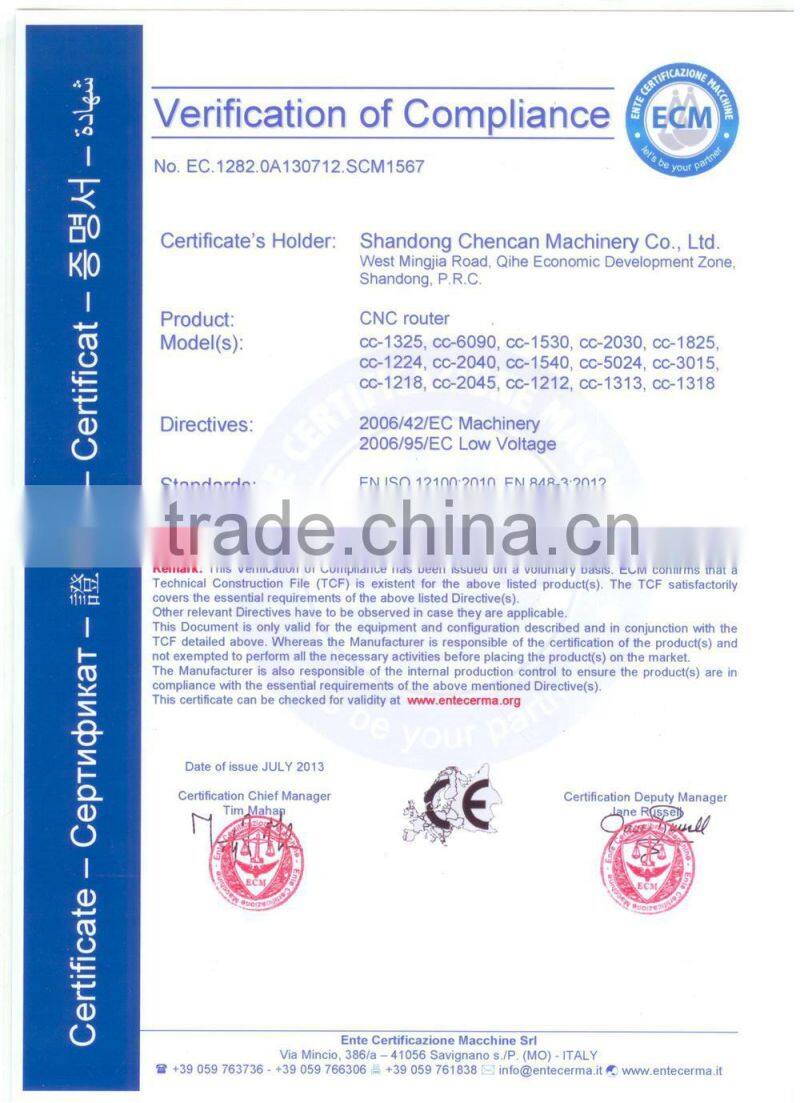

Certificates: CE, ISO9001-2008
Contact person: grace chen
Skype:graceqiqi3
Whatsapp/viber:+86 15166985775
Company name : Shandong Chencan Machinery Incorporated Company
Add :west mingjia road ,qihe economy development zone,shandong province
(Near jinan city ,from the factory to jinan airport ,30 minutes driving)
