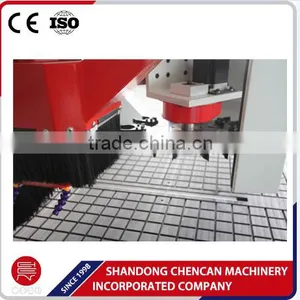

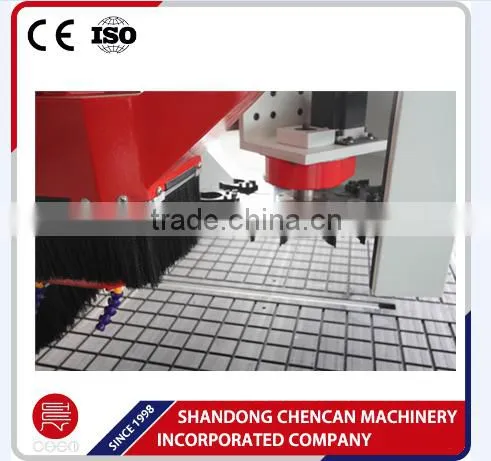

Auto tool changer cnc router machine
We produce linear type auto tool change cnc router, disc type auto tool changing cnc router.
As to disc type, the tool magazine can be with X axis, also can be with Y axis.
The Auto tool changing cnc router machine size can be 1300*2500mm, also can be 1500*3000mm
Advantage ATC cnc wood router configuration:
9.0KW Italy HSD ATC Air-cooling spindle (optional: Italy Columbus)
Japan Yaskawa Servo motor and driver (optional: Taiwan Delta)
Taiwan Syntec control system ATC changing tools
Taiwan Delta frequency inverter
Taiwan Hiwin square guide rails (optional: Japan THK)
Taiwan TBI high precision ball screw
Taiwan reducer
Auto lubrication system
High quality anti-interference cables (optional: Germany IGUS)
Japan Omron limit switch
France Schneider electronics
Japan NSK bearing
Powerful air cooling vacuum pump (optional: Germany Becker )
ISO tool collects (optional: HSK)
Great CAD/CAM software compatible: Type3, Artcam, Artengrave, Artcut, Wentai, UG, Mastercam, Powermill, Pro/E, CATIA, KCD.
furniture making cnc router machinery
Technical parameters: ATC automatic tool changer
NO. |
Description |
Parameter |
1 |
X,Y,Z Working Area |
1500X3000X300 mm |
2 |
Table Size |
1620X3540mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.04/300mm |
4 |
X,Y,Z repositioning Positioning Accuracy |
±0.05mm |
5 |
Frame Structure |
Welded Structure |
6 |
X-Y Structure |
Inclined Racks and Gear shafts, rack and pinion |
7 |
Z Structure |
Screw Ball |
8 |
Max. Speed |
0-60000mm/min |
9 |
Max. Working Speed |
0-35000mm/min |
10 |
Spindle |
9.0Kw HSD Spindle |
11 |
Spindle Speed |
0-24000RPM |
12 |
Drive Mode |
Yaskawa servo motor |
13 |
Working Voltage |
AC380V, 50/60Hz, 3 phase |
14 |
Command Code |
G code |
15 |
Operating System |
Syntec EZ4 control system |
16 |
Inverter |
Delta 11KW |
17 |
Tool magazine |
8 tools (optional 6, 10) |
18 |
Collet |
ISO30 |
19 |
X-Y-Z Working accuracy |
<0.01mm |
20 |
Software |
Type3, Ucancam, Artcam |
21 |
Running circumstance |
Temperature: 0°C~45°C,Relative humidity: 30%~75% |
22 |
Packing Size |
3750x2250x2100 mm |
23 |
Net Weight |
2400KG |
22 |
Gross Weight |
2500KG |
Applicable areas auto tool change cnc router:
wood working:Solid wave board process, door of cabinet,wooden door,artistic wooden door ,no-paint door,avoid wind,process of the artistic window,screen,shoes cleaning machine,the cabinet of the playing machine and the board,mahjong table,computer table and the assistant process of the household effects.
Advertising:Advertising board,Label design,Acrylic cutting,model, of the multi material decoration products.
Model industry:It can engrave on the steal materials such as copper, aluminum ,iron etc and non-mental materials such as man-made marble, sand, plastic board PVC materials, wood board etc.
Other fields: It can engrave many image, embossment,It is widely used in artistic industry.
Samples:
cnc router machine
wood cnc router|router cnc|router|router machine|machine manufacture|manufacturing machine|wood cutting machine|wood carving machine|cnc wood machine|wood engraving machine|chinese machine|shandong machine|jinan machine|jinan cnc router|made in china
Certificates:
strong plywood pacakge for export;
we transport the cnc router machine to you by sea or other way we negociate .
Q1: Installation and Debugging
Customers can get detailed operation manual and instruction video. We will make sure that customers can operate machines skillfully.
Q2: Training
Customers can get free technical training. Mainly training are as follow:
- software operation
- machine operation and maintenance
- Instruction of technical parameters, as well as their setting ranges
- solutions for common problems
Q3: Equipment Maintenance
One year free maintenance, lifelong caring
Free technical consultant and software updating
Customer Service responding in 2 hours
Continuous support with software and hardware after free maintenance
Q4: Guarantee
The guarantee period shall be 12 months counting from the date on which the machine arrives destination port. Except the damage artificially, we are responsible for offering the fittings free of charge during the guarantee period, but you must send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. After the guarantee of quality period, the parts required to repair or change, if any, shall be paid.
Contact person: grace chen
Skype:graceqiqi3
Whatsapp/viber:+86 15166985775
Company name : Shandong Chencan Machinery Incorporated Company
Add :west mingjia road ,qihe economy development zone,shandong province
(Near jinan city ,from the factory to jinan airport ,30 minutes driving)
