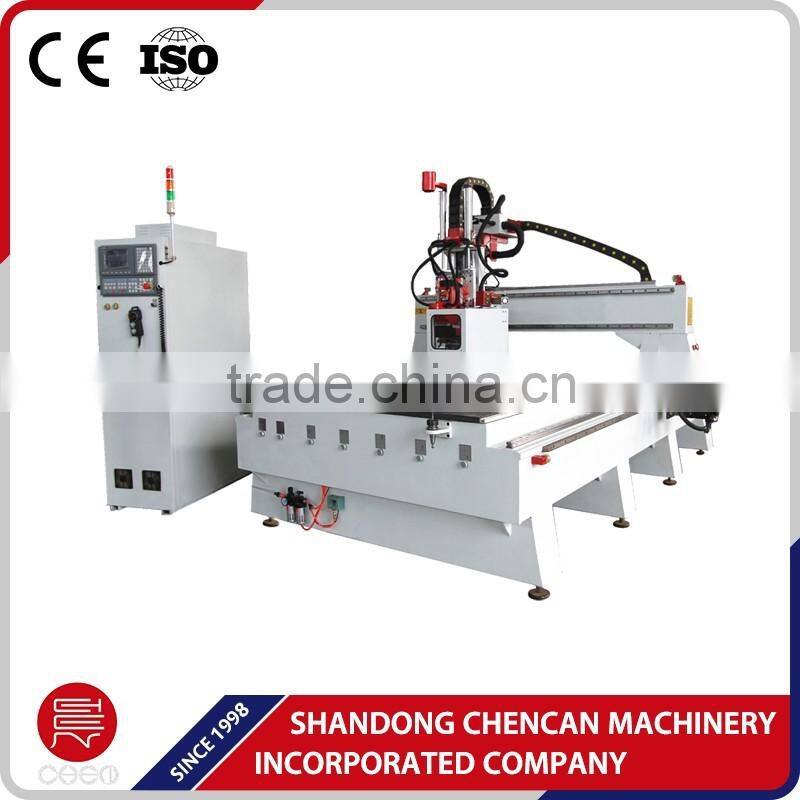

cnc router auto tool changer with 8 tools changing magazine CC-MS1325AC
- 100 Set / Sets per Month
- Qingdao
- T/T
- engraving cnc router,1325 woodworking cnc router 1300*2500*200
- engraving and milling machine,1325 woodworking cnc router 1300*2500*200
- engraver router,1325 woodworking cnc router 1300*2500*200
- dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
Brand Name: | Chencan | Model Number: | CC-MS1325AD | Voltage: | 380V/220V |
Weight: | 2000KGS | Certification: | CE ISO | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

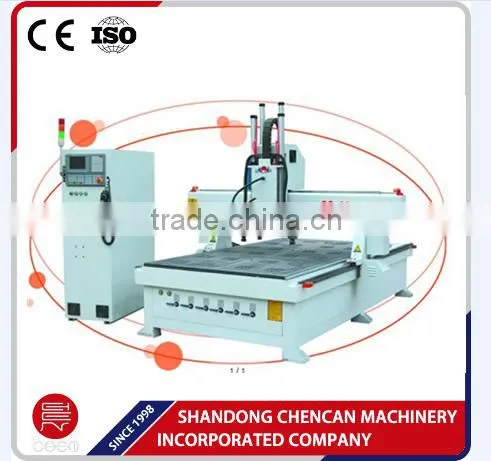

Automatic tool change spindle cnc router
Model: CC-MS1325AC

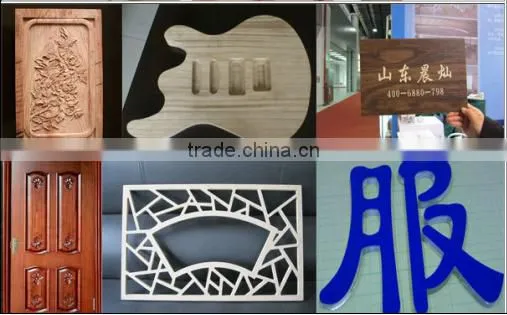

Wood processing: Processing of various furniture such as door, window, cabinet, screen and so on.
Advertisement: Engraving and cutting various labels and number plate.

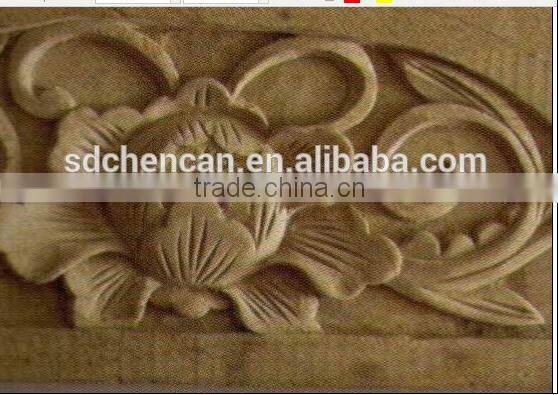

Art craft: Engraving characters of any languages and graphics on gifts and souvenirs.
Materials :Wood, aluminum board, brass board, plastic, density board, MDF board, wave board, PVC, acrylic,crystal, light marble and other nonmetal materials and light metal materials.
Features of Automatic tool change spindle cnc router

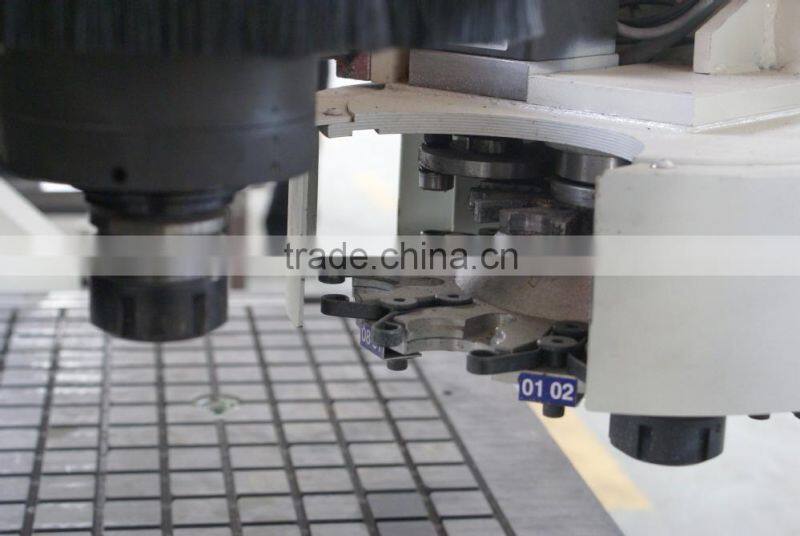

1. Circle style ATC cnc router with 8 pieces of tools in total. It takes only 8 seconds to change the tool.
2. Adopt Italy-made air-cooled spindle with strong power of 9.0KW, so the machine can keep working for long-time without fault.
3. X and Y axes adopt rack and pinion transmission, faster working, higher efficiency and low cost. Z axis adopts Germany-made ball-screw and Taiwan Hiwin H30 square orbit, with high precision and longevity.
4. Excellent compatibility: CAD/CAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.
5. The gantry of the CNC Wood Process Center is made of steel, unlike others who adopt aluminum materials. Steel gantry has better stability than aluminum ones.
6. Advanced Taiwan SYNTEC control system with separate keyboard and color LCD screen makes the operation easier, and the auto tool change system makes the operation safer and convenient.
7. Adopting high-torque Japan YASKAWA servo motor and driver, greater accuracy and stability.
8. Manual oil-injection system makes the maintenance more convenient.
9. ATC cnc router adopts vacuum table with 6 vacuum zones, which can adsorb different size materials and has strong suction of 23 cube meters /hour.
10. ATC cnc router has the function of re-carving after break point and power failure.
11. Advanced file pretreatment function can correct the error in the files and is compatible with the process codes of multiple national and international software.(such as Mastercam, Type3,Arecam) .
Technical Parameter of Automatic tool change spindle cnc router
Description | Parameter |
X,Y Working Area | 1300*2500mm |
Z Working Area | 300mm |
Table Size | 1440*3140mm |
Resolution | 0.01mm |
Lathe Structure | Seamless welded steel structure |
X,Y Structure | Rack and pinion, gear drive, Taiwan Hiwin square guide rails |
Z Structure | Germany-made ball screw, Taiwan Hiwin square guide rails |
Max. Idling Speed | 60m/min |
Spindle | Italy HSD air-cooling 9.0KW |
Spindle Speed | 0-24000r/min, variable speed |
Working Voltage | AC380V/50Hz |
Motor and driver | YASKAWA Servo motor and driver |
Command | G code (HPGL, U00, mmg, plt) |
Operating System | Taiwan SYNTEC control system |
Diameter of Cutter | φ3.175-φ12.7 |
Cooling Mode | Air-cooling |
Dust-collect Function | Yes |
Work Holding | By suction or clamp |
Tool Magazine | Circle-style auto-tool changer system with 8 pieces of tools |
Net Weight | 2200KG |
strong plywood pacakge for export;
we transport the cnc router machine to you by sea or other way we negociate .
1. Payment: T/T,L/C; at least30% deposits, 70% balance before delivery
2. MOQ: 1 set
3. Warranty : 1 year
4. Package: wooden case/iron tray ,according to the size of the machine package.
duct time : 30workdays
Q1: Installation and Debugging
Customers can get detailed operation manual and instruction video. We will make sure that customers can operate machines skillfully.
Q2: Training
Customers can get free technical training. Mainly training are as follow:
- software operation
- machine operation and maintenance
- Instruction of technical parameters, as well as their setting ranges
- solutions for common problems
Q3: Equipment Maintenance
One year free maintenance, lifelong caring
Free technical consultant and software updating
Customer Service responding in 2 hours
Continuous support with software and hardware after free maintenance
Q4: Guarantee
The guarantee period shall be 12 months counting from the date on which the machine arrives destination port. Except the damage artificially, we are responsible for offering the fittings free of charge during the guarantee period, but you must send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. After the guarantee of quality period, the parts required to repair or change, if any, shall be paid.
Contact person: grace chen
Skype:graceqiqi3
Whatsapp/viber:+86 15166985775

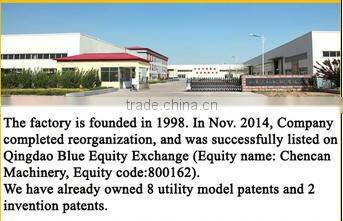

Company name : Shandong Chencan Machinery Incorporated Company
Add :west mingjia road ,qihe economy development zone,shandong province
(Near jinan city ,from the factory to jinan airport ,30 minutes driving)
