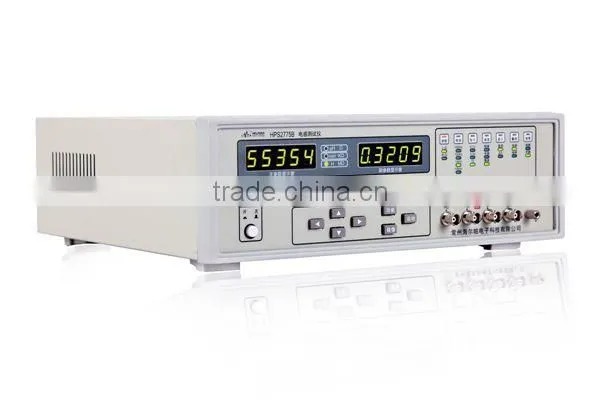

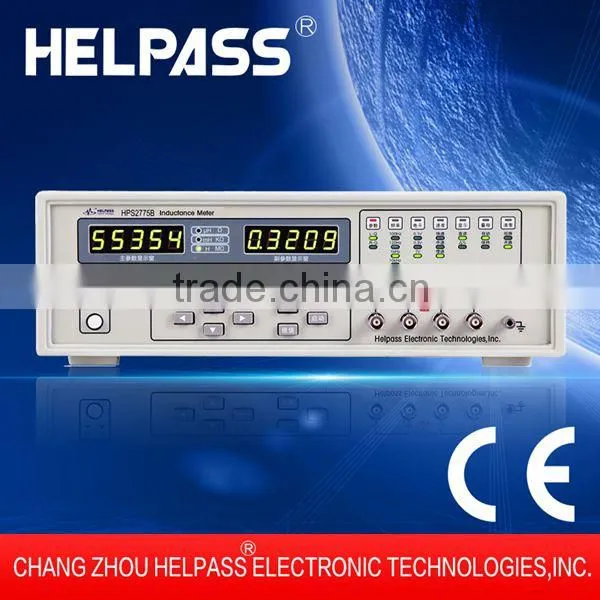

HPS2775B digital capacitance inductance tester, inductance meter, LCR meter with USB device
♦ Perfect combination of simple operation and strong performance
♦ Two alternative source impedances, easy to be compatible with different inductance testers
♦ Good reading stability
♦ Setting parameters protection function
♦ Key-locked function
♦ Sorting alarms and qualified, unqualified indicator
♦ Measure the semiconductor element impedance of capacitors, resistors, inductors, transformers, multichip module and network elements.
♦ Measure the inductance and the loss angle of ferrite, magnetic core, amorphous and other magnetic materials.
♦ Measure the printed circuit boards, relays, switches, cables and battery impedance.
Model |
HPS2775B |
|
Features | ||
Display Digits |
5digits |
|
Measurement function | ||
Measurement Parameters |
L-Q, C-D, R-Q, Z-D,Z-Q |
|
Basic Accuracy |
0.1% |
|
Equivalent Circuit |
Series , Parallel |
|
Correction |
Open/short and Sweep corrections |
|
Display Method |
Direct reading,ABS,%,Sorting Results |
|
Measurement Display Range | ||
Ls, Lp |
0.001µH -99999H |
|
Rs , Rp, Z |
0.00001Ω -99.999MΩ |
|
Q |
0.00001 -99999.9 |
|
Δ% |
-999.999% -999.999% |
|
Sorting | ||
Beep |
OFF,IN,HI,LO |
|
General Specification | ||
WorkingEnvironment |
0°C -40°C ,≤90%RH |
|
Power Consumption |
≤30 VA |
|

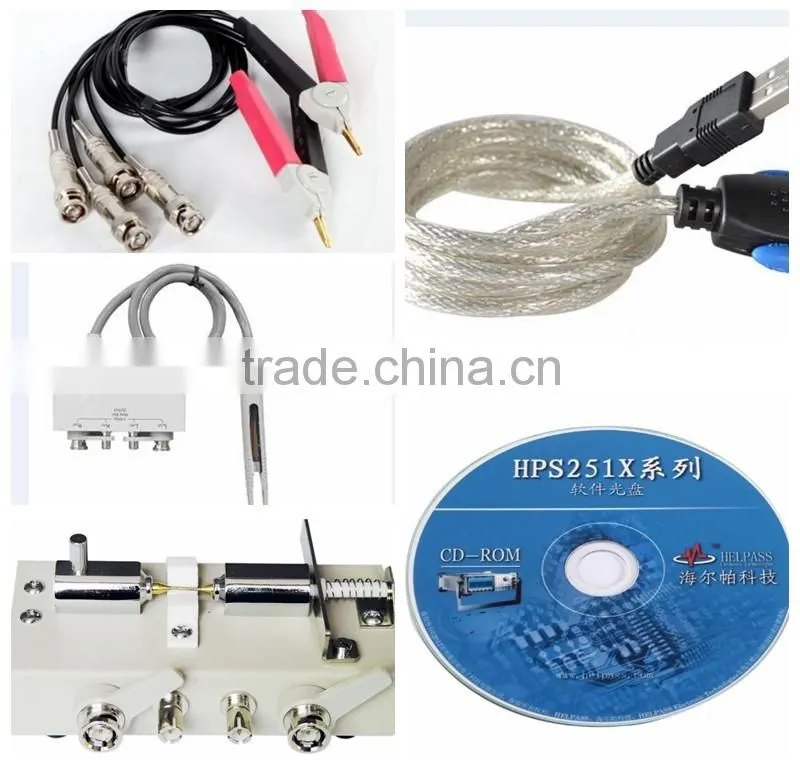

♦ AC power cord
♦ User's manual
♦ Testing report
♦ Warranty card and certificate
♦ Communication Cable
Technical Service:
♦ We have professional engineers who design the test methods and test fixture for the product, debugged test equipment parameter to reach the optimal performance.
♦ We provide free technical training and offer free equipment maintenance technology.
♦ We can design special test programs and test fixture according to the customer.
