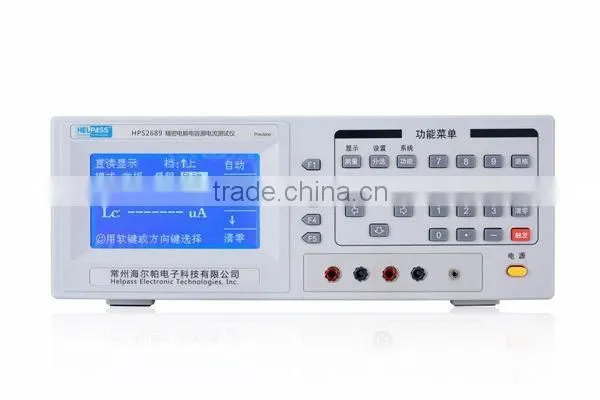

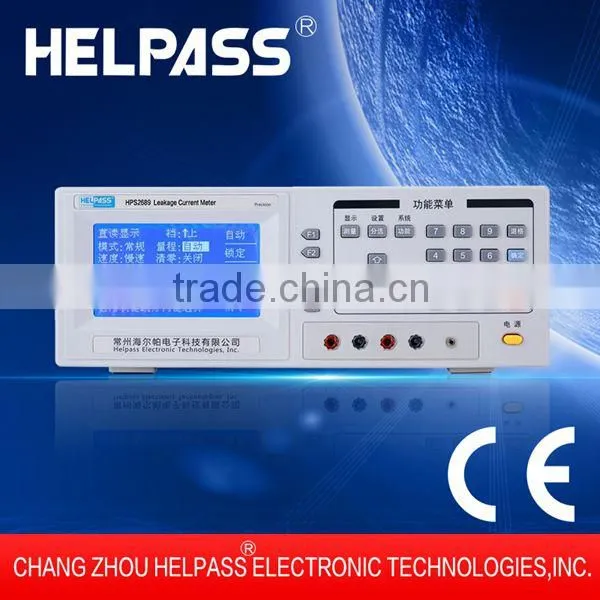

HPS2689 Leakage Current Tester
HPS2689 is an exclusive instrument used to detect electrolysis, capacitance, leakage current parameters; it is very intelligent and precise. HPS2689 meets the requirements of various types of electrolytic capacitor leakage current testing;it is mainly used in electrolytic capacitors, ceramic capacitors and other leakage current, insulation resistance and aluminum electrolytic anode foil.Can also be applied to surge absorber, zener diode, neon tube voltage and leakage current test confirmation. This product has a complete communication interface, widely used in the electrolytic capacitor production line, incoming inspection department and research department element detection and automated production equipment.
♦ Test voltage continuously adjustable, Real-time monitoring voltage output
♦ Large current pre-charge function
♦ Multiple measurement modes
♦ Built-in digital timer
♦ The minimum current resolution is 1nA
♦ Over limit indication and alarm function
♦ Via RS232 interface and PC communication
♦ Strong anti-interference ability
♦ Electrolytic capacitor, Tantalum capacitor, Ceramic capacitor
♦ Zener diode,Neon tube,Aluminum electrolytic anode foil
Model |
HPS2689 |
|
Features | ||
Displayer |
HD LCD display |
|
Maximum Reading |
9999 |
|
Measurement function | ||
Measurement Parameters |
Leakage Current(LC) , Insulation Resistance (IR) |
|
Output Voltage |
0 -520V,Accuracy:1% |
|
Measurement Range |
LC:0.000μA -22mA IR:10.00kΩ -10.00GΩ |
|
Basic Accuracy |
0.5% |
|
Pre-charge Current |
≥400mA |
|
Charging power |
≥200W |
|
|
Measurement Speed(time/sec) |
Slow:5 Medium:8 Fast:12 |
|
Test Delay |
0.0s -999.9s |
|
Range Mode |
Auto, Manual |
|
Trigger Mode |
Internal,Manual,Outside |
|
Trigger Delay |
0 -9999ms |
|
Charging Time |
0.0s -999.9s |
|
Discharge Time |
0.0s -999.9s |
|
Maximum Discharge Current |
≥30mA |
|
Correction |
Open-circuit Zero-Adjust for each range |
|
Sorting and interfaces | ||
Sorting Function |
Qualified, unqualified indicator light and Buzzer alarm |
|
Interface |
RS-232C interface/HANDLER interface |
|
General Specification | ||
Working Environment |
0°C -40°C ,≤90%RH |
|
Power Supply |
198V -242V(AC),47.5Hz -63Hz |
|
Power Consumption |
≤20 VA |
|
Dimension |
340 mm(W) x 120 mm(H) x 330 mm(D) |
|
Weight |
5kg |
|
Standard accessories:
♦ AC power cord
♦ User's manual
♦ Testing report
♦ Warranty card and certificate
♦ HPS26001 Electrolytic capacitor leakage current test line
♦ HPS26002 Electrolytic capacitor leakage current test clips
Optional accessories:
♦ HPS26003 SMD Electrolytic capacitor leakage current test clips
Technical Service:
♦ We have professional engineers who design the test methods and test fixture for the product,debugged test equipment parameter to reach the optimal performance.
♦ We provide free technical training and offer free equipment maintenance technology.
♦ We can design special test programs and test fixture according to the customer.
