Digital Inductance capacitance multimeter meter with RS232 interface and Handler interface
HPS2776 precision inductance tester is a new component parameter test instrument launched by Helpass. This product incorporates Helpass mature years of experience in the test field and it is the latest technology in the field of measurement. Powerful test capabilities and superior measurement make HPS2776 a leading level; it will give customers extra value combined with the new design of the test program and the large font display.
♦ the semiconductor element impedance parameters of resistors, inductors, transformers and chip component, network elements
♦ the ferrite, magnetic core, non crystal, soft magnetic materials and other magnetic materials
♦ the impedance of printed circuit boards, relays, switches, cables and battery
Model |
HPS2776 |
|
Features | ||
Displayer |
Large LCD |
|
Display Digits |
6 digits |
|
Measurement function | ||
Measurement Parameters |
Ls, Lp Z, Rs (ESR), Rp ,θ(Deg), θ(Rad), X, G,Y, B , Q |
|
Equivalent Circuit |
Series , Parallel |
|
Range Mode |
Auto, Manual |
|
Trigger Mode |
Internal,Manual,External,Bus |
|
Correction |
Open / short circuit zero- cleared |
|
Measurement Terminals |
Four-wire system(2 detection terminals, 2 drive terminals),five terminals |
|
Display Method |
Direct reading,ABS,%,Sorting Results |
|
Test signal | ||
Test Frequency |
50Hz,60Hz,100Hz,120Hz, 1kHz,10kHz, 20kHz, 40kHz, 50kHz, 100kHz (10 frequency points) |
|
Test Level |
0.1 Vrms, 0.3 Vrms,1 Vrms |
|
Output Impedance |
30Ω,100Ω |
|
Sorting and interfaces | ||
Sorting function |
Built in comparator : Ten gears: (nine gears qualified, one gear is unqualified), and a subsidiary gear |
|
Beep |
OFF,IN,HI,LO(Adjustable Volume) |
|
Interface |
RS-232C interface/HANDLER/USB Device/GPIB(option) |
|
General Specification | ||
Working Environment |
0°C -40°C ,≤90%RH |
|
Power Consumption |
≤30 VA |
|

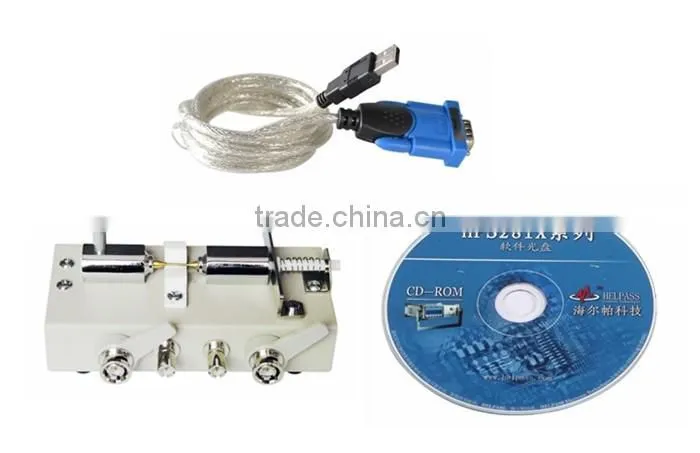

♦ AC power cord
♦ User's manual
♦ Testing report
♦ Warranty card and certificate
♦ Communication Cable
