Digital multimeter HPS2776 inductance capacitance meter
- 1000 Set / Sets per Month
- Shanghai Hangzhou Ningbo etc
- T/T Credit Card PayPal
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | HELPASS | Model Number: | HPS2776 |
Product Description
Digital multimeter HPS2776 inductance capacitance meter
♦ 240×128 dot-matrix graphic LCD display
♦ Friendly user's interface and easy operation
♦ Stable and accurate measurement
♦ Measurement speed up to 30 Times/second
♦ Testing level monitor function
♦ Measurement parameters and status preservation and auto-recall function
♦ Key locked function
♦ Complete RS232 communication interface and Handler communication interface

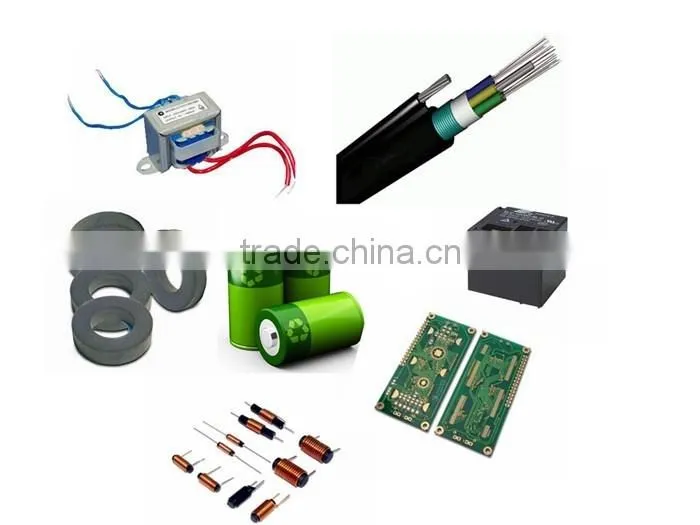

♦ Measure the semiconductor element impedance parameters of resistors, inductors, transformers and chip component, network elements.
♦ Manage the ferrite, magnetic core, non crystal, soft magnetic materials and other magnetic materials.
♦ Measure the impedance of printed circuit boards, relays, switches, cables and battery.
Model | HPS2776 | |
Features | ||
Displayer | Large LCD | |
Display Digits | 6 digits | |
Measurement function | ||
Measurement Parameters | Ls, Lp Z, Rs (ESR), Rp, ,θ(Deg), θ(Rad), X, G,Y, B , Q | |
Equivalent Circuit | Series , Parallel | |
Range Mode | Auto, Manual | |
Trigger Mode | Internal,Manual,External,Bus | |
Measurement Terminals | Four-wire system(2 detection terminals, 2 drive terminals),five terminals | |
Test signal | ||
Output Impedance | 30Ω,100Ω | |
Sorting and interfaces | ||
Beep | OFF,IN,HI,LO(Adjustable Volume) | |
Interface | RS-232C interface/HANDLER/USB Device/GPIB(option) | |
General Specification | ||
Working Environment | 0°C -40°C ,≤90%RH | |
Power Consumption | ≤30 VA |
♦ AC power cord
♦ User's manual
♦ Testing report
♦ Warranty card and certificate

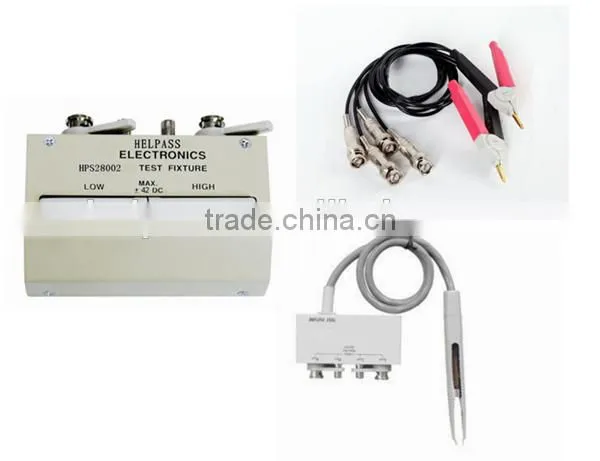

♦ Communication Cable
Contact Us
- Changzhou Helpass Electronic Technologies Inc.
- Contact nameAngy Zhang
- Phone86-0519-86636180
- AddressNo.58,Xinchang Road,Zhonglou District Changzhou,Jiangsu
