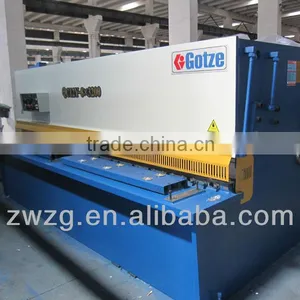

QC12Y 8*3200 Hydraulic swing beam shearing machine

Specifications

The machine is with good quality,best price and good after-sale service.

Hydraulic drive,swing beam,return of knife is smooth and prompt by accumulator nitrogen cylinder.

Possessing a speed blades gap adjusting device,permit to adjust steplessly the blades gap.

The stroke and frequency of shearing can be controlled.The machine has the fuction of single shearing and automatic continuous shearing.

After inputting precomputed data,the back gauge can be automatically moved,positioned and stopped.

The vertical gripper of intellect position is controlled by pneumatic system.

Steel plate welded construction ,hydraulic drive ,nitrogen cylinder return.

Convenient operation ,reliable performance and beautiful appearance.

Blade gap adjustment has the instruction board to display.The adjustment is convenient and quick.

It has the lighting device and can adjust the travel volume of the up shaft to any extent.

Working aera has the fence type personal safety protection devices.

Back gauge size and cutting times both have the digital display device.





No	Name		Data	Unit	Remarks
1	Max thickness of cutting plate		8	mm
2	Max width of cutting plate		3200	mm
3	Strength of cutting plate		450	N/mm2
4	Cutting angle		1°30′
5	Number of stroke		16	min-1
6	Distance between two columns		3420	mm
7	Length of blade		3300	mm
8	Height of worktable		800	mm
9	Main motor	Type	Y132M2-4		B5
		Power	11	kW
		Speed	1440	r/min
10	Back gauge motor	Type	Y80M2-6
		power	0.55	kW
		Speed	900	r/min
11	Axial piston pump	Type	25MCY14-1B
		Speed	25	L / min
		Pressure	31.5	MPa
12	Size	Length	3840	mm
		Width	1845	mm
		Height	1620	mm
