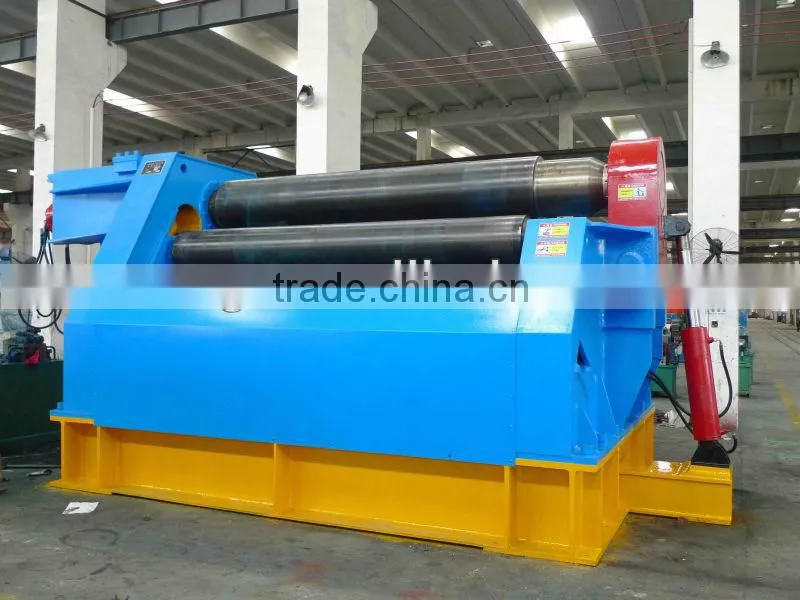

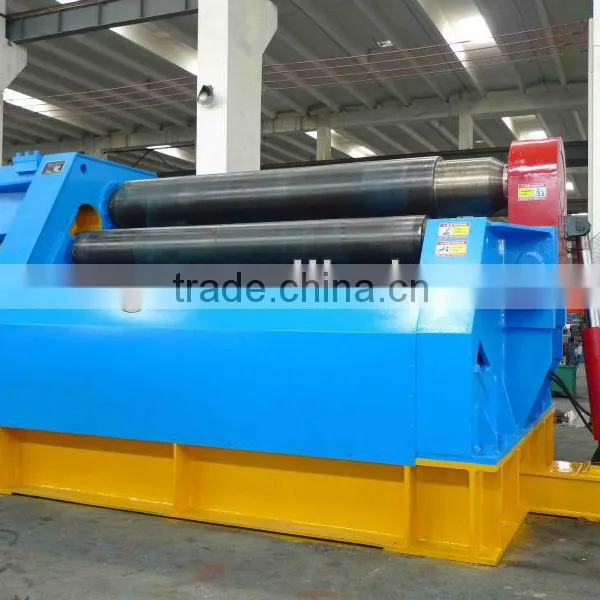

Help CenterW12-12X2000 Four Roller Rolling Machine
Related Products
-
W12-40X3200 Four Roller Rolling MachineUS$ 30,000 - 100,000MOQ: 1 Set -
W11S-120*3000 Upper Roller Universal Rolling MachineUS$ 490,000 - 570,000MOQ: 1 Set
-
W12-65X3000 Four Roller Rolling MachineUS$ 180,000 - 208,000MOQ: 1 Set
-
W11S-12*2500 Upper Roller Universal Rolling MachineUS$ 100 - 100,000MOQ: 1 Set
-
W11S-12*3000 Upper Roller Universal Rolling MachineUS$ 100 - 100,000MOQ: 1 Set
Specifications
This kind of rolling machine is with good quality and price, it can roll round and arc.
One,Performance
The structure of this machine is four roller symmetrical type, the upper roller is main driving, all transmission through the output gear reducer with roller gear, top provide torque; the vertical lifting movement within hydraulic cylinder, through the role of the hydraulic oil, so in the clamping plank, hydraulic transmission. There are side rollers in the both side of lower rollers, and made motion through guide screw wire female worm gear and worm drive. This advantage is it can pre-bending and rolling can be finished in the same equipment.
Two.Main technical parameter
Specification |
Unit |
W12CNC-12*2000 |
Max rolling thickness |
mm |
12 |
Max rolling width |
mm |
2000 |
Min diameter of full load |
mm |
700 |
Yield strength |
Mpa |
245 |
Diameter of upper roller |
mm |
Φ280 |
Diameter of bottom roller |
mm |
Φ280 |
Diameter of side roller |
mm |
Φ210 |
Main hydraulic motor |
KW |
15 |
Hydraulic motor power |
KW |
7.5 |
Stroke of side roller |
mm |
380 |
foreign customers' visiting
our office location and workshop
