Specifications
This kind of rolling machine is with good quality and price, it can roll round and arc.
One,Performance

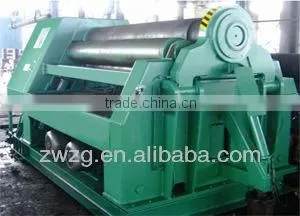

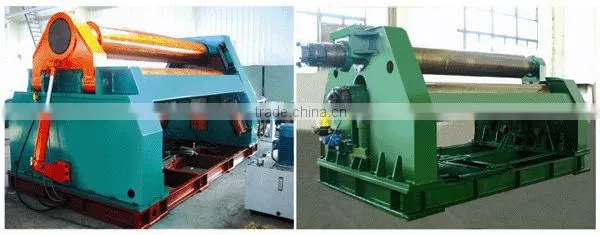

The structure of this machine is four roller symmetrical type, the upper roller is main driving, all transmission through the output gear reducer with roller gear, top provide torque; the vertical lifting movement within hydraulic cylinder, through the role of the hydraulic oil, so in the clamping plank, hydraulic transmission. There are side rollers in the both side of lower rollers, and made motion through guide screw wire female worm gear and worm drive. This advantage is it can pre-bending and rolling can be finished in the same equipment.
Two,Main technical parameter
Specification |
Unit |
W12CNC-65*3000 |
Force pressure |
kN |
7500 |
Max plate width |
mm |
3000 |
Working length of rollers |
mm |
3100 |
Max rolling thickness end |
mm |
T50*B3000(general plateσs≤245MPa) |
Max rolling central |
mm |
T60*B3000(general plateσs≤245MPa) |
Min rolling thickness |
mm |
2 |
Min rolling diameter of the min specification |
mm |
1600 |
The length of remain straight flange |
mm |
About 3 times plate thickness |
Diameter of upper roller |
mm |
Φ700 |
Diameter of bottom roller |
mm |
Φ680 |
Diameter of side roller |
mm |
Φ560 |
Central angle of side rollers’ running direction and upper and lower rollers |
° |
30° |
Rolling speed |
m/min |
About 3.5 |
Main drive hydraulic pressure motor power |
kW |
75 |
Assist hydraulic pressure motor power |
kW |
30 |
Max working pressure of hydraulic pressure system |
MPa |
19.5 |
Working roller moving ways |
Hydraulic |
|
Driving way of rollers |
Hydraulic motor |
|
Number of driving roller |
2 |
|
Motor |
380V,3PH,50Hz |
